Preliminary User Guide V1.0
Tilt90
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tilt90 and is the answer not in the manual?

Questions and answers

Summary of Contents for Geosense Tilt90

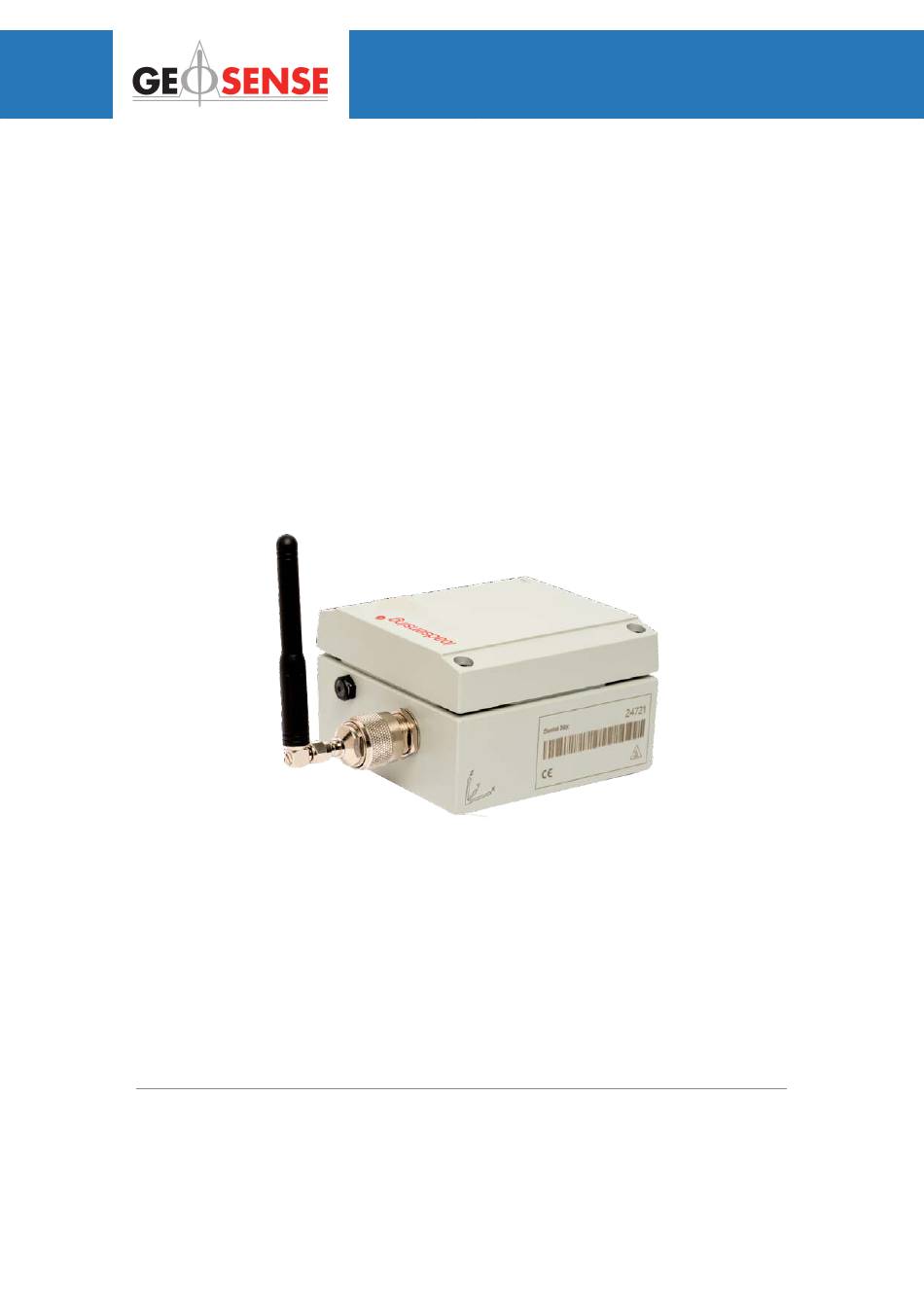

  • Page 1 Preliminary User Guide V1.0 Tilt90...
  • Page 2: Table Of Contents

    Table of contents 1.Important instructions prior to use 2.Device Overview 3.Device Specifications 4. System requirements 5. Equipment Provided 6. Wireless Tiltmeter installation 7. Powering up the Device 8. Loadsensing Device Configuration 9. Safely Closing the Device 10. Understanding data 10.1.1 Calibration 13.
  • Page 3: Important Instructions Prior To Use

    1.Important instructions prior to use Please read these instructions carefully and ensure that the required conditions specified in this document are met before using the product. Each of our edge devices includes this information inside the packaging General warnings ● Follow these precautions to avoid a battery explosion or leakage of flammable liquid or gas: ○...
  • Page 4: Device Overview

    Model LS-G6-TIL90-I will be released shortly. The wireless tilt90 can be used connected to the CMT or as a standalone logger for manual monitoring, and can be easily configured by connecting it to an Android phone with a USB cable.
  • Page 5: Device Specifications

    3.Device Specifications Tiltmeter specifications Value Type Tilt angle calculated from 3-Axis MEMS accelerometer Range ±90° Axes 3-axis inclination measurement with respect to gravity’s direction. Reports the two axes of rotation from the horizontal plane in any orientation. Node LS-G6-TIL90-X LS-G6-TIL90-I Accuracy within ±...
  • Page 6 MEMORY: CIRCULAR BUFFER STRUCTURE Memory records up to 140,000 readings, including time and 3 axes MECHANICAL Device LS-G6-TIL90-X LS-G6-TIL90-I Box dimension (WxLxH) 100x100x61 mm 100x100x61 mm Overall dimensions 150x120x61 mm 103x100x61 mm Operating temperature -40ºC to 80ºC (-40ºF to 175ºF) Weather protection IP68 (at 2 m for 2 hours).
  • Page 7: System Requirements

    4. System requirements The TIL90 is: - available from version 2.63 onwards - Needs to be configured by using the Worldsensing App (instead of the Dlog) - CMT Edge version: from firmware version 2.5 (4G Gateways) and 2.5.1 (3G Gateways) onwards - CMT Cloud version: from firmware version 1.4.0 onwards...
  • Page 8: Equipment Provided

    5. Equipment Provided As mentioned above, there are two wireless tiltmeter variants. Figure 1: LS-G6-TILT90-X view The wireless tilt90 with an external antenna (LS-G6-TIL90-X) 1. Metallic casing 2. USB connector 3. RP N Female connector, which complies with Federal Communications Commission (FCC) regulations, for the sensor network radio antenna 4.
  • Page 9 User Guide- Preliminary version Loadsensing Wireless Tiltmeter 90 Figure 2: LS-G6-TILT90-X elements Figure 3: LS-G6-TILT90-X antenna with N-connector...
  • Page 10 The LS-G6-TIL90-X can also be equipped with a more robust antenna, placed horizontally, instead of the standard L-antenna that is installed vertically. Please contact us for more details. Figure 4: LS-G6-TILT90-I view The wireless tiltmeter with an internal antenna (LS-G6-TILT90-I) has the following elements: Polycarbonate lid 2. Metallic box 3.
  • Page 11 Figure 5: LS-G6-TILT90-I elements The following elements are sold separately for both tiltmeters: ● Mounting supports. See the mounting instructions for each support ● USB-OTG configuration cable Batteries ●...
  • Page 12: Wireless Tiltmeter Installation

    We discuss each of these three here. Supports The Tilt90 node needs to be mounted on a support. Depending on the application, it needs to be installed with a certain inclination to achieve curved surfaces and on others applications it can be just installed aligned to the surface.
  • Page 13: Powering Up The Device

    Powering up the Device Loadsensing devices are shipped closed and without batteries. To power up the device: Open the device using a 2.5 mm Allen wrench. 2. Insert C-type batteries in the battery holders, checking they match the polarity indicated. You can connect one or more batteries; the more you use, the longer the device will operate in the field.
  • Page 14: Loadsensing Device Configuration

    General warnings Follow these precautions to avoid a battery explosion or leakage of flammable liquid or ● gas: ○ Use the correct battery type. Dispose of the batteries according to instructions. Do not dispose of the batteries by throwing them into a fire or a hot oven, or mechanically crush or cut them.
  • Page 15 Please take note of the following credentials in the Gateway Information Sheet. These will be necessary to perform the radio coverage test: Gateway Information Sheet Mobile app field Default network ID Network ID Default network key Password Default network access password Server password The process for configuring the TIL90 node is the same as the other nodes and it is detailed on the WorldsensingApp user guide.
  • Page 16 This node integrates one sensor, and it is not necessary to configure the sensor’s settings on the WorldsensingApp. Once the radio configuration is finished the app will show the option of taking a sample. Taking a sample will show the parameters measured and allow you to check the consistency of the readings.
  • Page 17: Safely Closing The Device

    The app will show tiltmeter readings: the 3-axis inclination measurement with respect to gravity’s direction, its standard deviation (expressed in Gravity) and also the internal temperature of the node. 3-axis Inclination measured by the tiltmeter is calculated as the average of a certain amount of acceleration samples in a period.
  • Page 18: Understanding Data

    Note that box screws shouldn’t be torqued more than 2 Nm. If you exceed the torque, the Helicoil insert may be damaged. We do not recommend using electric drills or electric screwdrivers. 10. Understanding data In this chapter we will explain how the TIL90 can be installed, what it measures and which parameters can be read.
  • Page 19: Calibration

    Figure 8: Values of 3 axes on di erent angle installations. 10.1.1 Calibration The tiltmeter sensor is assembled, calibrated and tested under stringent quality control standards. The coe cients for the linear equation are determined with 4 inclination steps (0, 90, 180, 270 degrees) between the XZ and YZ planes.
  • Page 20 Regarding the recalibration of the wireless tiltmeter, Worldsensing recommends recalibrations only for the following situations: When a tiltmeter certificate is required according to the quality program of the ● company/project. In this case, the certificate may be obtained locally. If a laboratory with a proper rotary frame is locally accessible, the wireless tiltmeter may be placed on the calibration frame to take measurements at di erent inclination steps.
  • Page 21 When connecting the TIL90 to the Dataserver, last readings will be shown. Figure 9: Readings from the TIL90 shown on the dataserver Note that with the TILT90 several conversions can be done on the Gateway such as calculating: Angle variation...
  • Page 22 Tangent generic equation (necessary to adjust it for the three axis) Where: : converted data in units x,y,z : Multiplicative factor x,y,z : O set in units x,y,z X,Y,Z : Zero reading X,Y,Z : Current reading Sine generic equation (It is necessary to adjust it for the three axis) Where: : converted data in units x,y,z...
  • Page 23: Maintenance And Troubleshooting

    12. Errors implemented When an error is returned a new timestamp is registered on the reading error CSV file on the Gateway, the reading file will show blank readings corresponding to that timestamp. There are several errors that can be returned on the CSV file, related to the tiltmeter sensor or the laser distance meter.
  • Page 24: Battery Life Estimates

    node should never be submerged in water. WATER DAMAGE TO INTERNAL COMPONENTS VOIDS THE WARRANTY. In case of doubt regarding the reliability of the readings, first inspect the wireless node mounting and the structure where it is attached. Any compromise to or mechanical deformation of the mounting hardware can cause unstable readings.
  • Page 25 Sampling rate SF9@14dBm SF8@20dBm 30 sec 3.1 months 5 months 1 min 6 months 8.7 months 5 min 2.1 years 3 years 30 min 6.8 years 8 years 8.7 years 9.5 years 11.3 years 11,5 years 11,6 years 11.7 years 12 h Table 1: Battery lifespan in years assuming intermediate environmental Radio conditions for European and FCC radios...
  • Page 26: Data Storage

    Lifetime estimate in years Sampling rate Singapore Barcelona Moscow 30 s 4.5 months 4.8 months 4.8 months 5min 11.6 12.8 11.1 Table 3: Lifetime estimations based on the mathematical model from Saft, for typical Europe radio configuration (Spreading factor 9 and radio transmit power 14 dBm), considering three di erent temperature profiles. 15.
  • Page 27 end date for the data you want to download or alternatively you can enable “All data”. The Android device allows these CSV files to be opened with applications such as e-mail or cloud apps. Files are also stored in the device memory, on the SD card in the Dlog folder. Figure 14: Downloading data manually from the wireless LASTIL90...
  • Page 28: Faqs

    16. FAQs Do I need to apply temperature correction to the wireless tiltmeter? The wireless sensor temperature dependency is up to +/-0.002°C for the TIL90-X and +/-0.005°C for the TIL90-I . To reduce thermal e ects, we recommend installing the device indoors where possible in order to avoid sun exposure.
  • Page 29 important point to be considered. This makes the specs from TIL90-I lower than the TIL90-X. I am not able to upgrade the node firmware version, when trying to advance an unexpected error appears on the App screen. How can I solve this problem? TIL90 can only be powered by using batteries, thus in case of batteries have been depleted and the node is trying to be upgraded, you will see the following sequence:...
  • Page 30: Appendix A. Csv Example And Json Format

    The app will get stuck in the firmware update screen and it will not be possible to advance. We recommend always bringing new batteries on site for troubleshooting or maintenance tasks. Appendix A. CSV example and JSON format TIL90-X reading file example...
  • Page 31: Appendix B. Vibration Resistance Test (Ls-G6-Til90-I)

    Appendix B. Vibration Resistance Test (LS-G6-TIL90-I) Below are the results from the vibration resistance test for the LS-G6-TIL90-I (LS-G6-INC360R) conducted by an external laboratory.
  • Page 34: Contact Worldsensing

    User Guide- Preliminary version Wireless Tiltmeter 90 CONTACT WORLDSENSING Need more support? Get in touch with our Customer Success team: Email: industrialsupport@worldsensing.com Phone: +34 93 418 05 85 (08.30h - 16.30h UTC) Want to stay up-to-date about Worldsensing? Sign up for our newsletter: www.worldsensing.com Visit our blog for interesting content: blog.worldsensing.com...
