KWIKtrak 4-Post 
Semi-Permanent Rack Assembly
Assembling Instructions
001.11950.EN rev. 2 • December 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KWIKtrak and is the answer not in the manual?

Questions and answers

Related Manuals for Arjohuntleigh KWIKtrak

Summary of Contents for Arjohuntleigh KWIKtrak

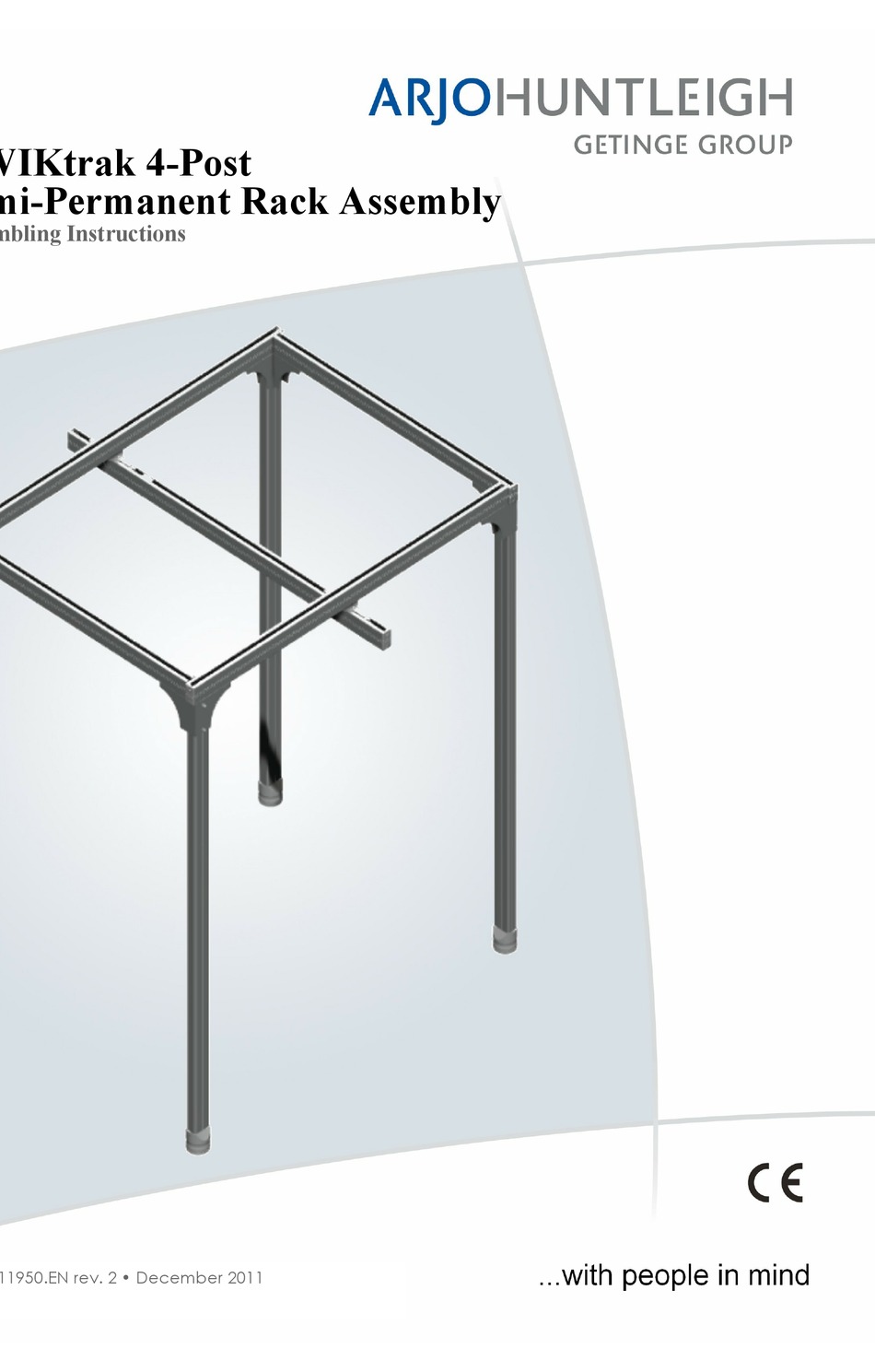

  • Page 1 KWIKtrak 4-Post  Semi-Permanent Rack Assembly Assembling Instructions 001.11950.EN rev. 2 • December 2011...
  • Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2011. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or in part without the consent of ArjoHuntleigh.

  • Page 3: Table Of Contents

    Table of Contents General Information..............4 Forward ..................4 Service and Support ..............4 Supplier Information ..............5 Definitions Used in this Manual ..........5 Intended Use ................5 Verifying the Package Contents upon Receipt......5 How to Use this Manual ............5 Safety Instructions ...............6 Safety Instructions and Warnings ..........6 Part Designation................7 Semi-Permanent Rack System ..........7 Required Tools .................8...

  • Page 4: General Information

    Furthermore, unauthorized modifications on any you have any questions about ArjoHuntleigh equipment may affect its safety. the operation or maintenance ArjoHuntleigh will not be held responsible for any your ArjoHuntleigh accidents, incidents deficiencies equipment.

  • Page 5: Supplier Information

    Means: Failure to understand and follow these instructions may result in injury to If anything is not completely understood, yourself and others. please contact your local ArjoHuntleigh representative for more details. Failure to comply with warnings in this manual may CAUTION: result in injuries.

  • Page 6: Safety Instructions

    WARNING: Firmly tighten all fasteners. • All track ends must have a KWIKtrak Periodically inspect and retighten fasteners autolock stopper in place and secured. to a torque of 20 N•m (15 lbf•ft) as required.

  • Page 7: Part Designation

    Part Designation Semi-Permanent Rack System Fig. 2 Item # Description Quantity Post Corner bracket assembly Parallel track (X) Parallel track (Y) Autolock end stoppers XY trolley Mobile track (X) Plastic end cap 6, 10 or 12, according to model Plastic end cap (halves - for kit including H140 rails 2 or 6, according to model Adjustable levelling feet Hex bolt with lockwasher &...

  • Page 8: Required Tools

    Part Designation Sold Separately TROLLEY FOR PORTABLE LIFT 700.10650 CHARGER INTERFACE FOR FIXED CEILING LIFT 700.15510 Fig. 3 NOTE: Installation instructions for the charger interface for fixed ceiling lifts are included with the Charger Interface Kit. Required Tools 5 mm Allen key 17 mm hexagonal key 6 mm Allen key Bubble level...

  • Page 9: Assembling Instructions

    Assembling Instructions Assembling the 4-Post Rack Post Assembly- Corner Brackets Each set of pressure plates are assembled to the corner brackets prior to delivery. 1. Please verify the following (see Fig. 4): • Check if pressure plates are attached to the corner bracket with two M12 x 30 socket low-head bolts.
  • Page 10 Assembling Instructions Post Assembly - Levelling Feet 3. Make sure that the levelling feet turn easily and without friction. • Verify that the M6 x 10 HC screws (part #000.03030) does not protrude into the inner cavity of the levelling feet before attempting to insert the posts. M6 x 10 HC screws Screws must...
  • Page 11 Assembling Instructions • Tighten the M6 x 10 HC screws to a torque of 4 N•m (3 lbf•ft). Turn clockwise to Torque both raise post. screws to 4 N•m (3 lbf•ft). Maximum elevation 25,4 mm (1 in). Fig. 7 End Stoppers 5.
  • Page 12 Assembling Instructions Inserting Fixed Tracks to the Post Assembly Make sure the fixed tracks are properly inserted on the correct side (see Fig. 8). Fig. 8 6. Choose two of the four fixed track sections that will hold the trolleys for the mobile track (see Fig.
  • Page 13 Assembling Instructions 8. Insert the selected fixed track sections into the corner brackets with the pressure plates positioned in the lower channel of the fixed track (see Fig. 10). Be careful not to allow the trolleys for the mobile track or the end stoppers to fall out. Fig.
  • Page 14 Assembling Instructions CAUTION: Make sure that the lockwashers are installed at the proper locations. ALLEN KEY 8MM Fig. 12 11. Slide the four individual autolock end stoppers towards the four ends of the two parallel tracks, to prevent the mobile XY track from running into any of the corner brackets. 12.
  • Page 15 Assembling Instructions Mounting the Mobile Track The 4-Post Semi-Permanent Rack system is designed to receive a track lift for safe patient transfers. The track lift is installed on a mobile track that allows the lift to move within the area spanned by the 4-Post system.
  • Page 16 Assembling Instructions End stoppers Fig. 14 Once the mobile track is in place: 18. Straighten the track so that it is squared to the fixed tracks. 19. Tighten the setscrews on the trolleys with a 5 mm Allen key (see Fig. 15). BOTH PLACES Fig.
  • Page 17 Assembling Instructions 20. Slide the mobile track completely from one end of the 4-post system to the other end to ensure that the track is perfectly squared. The mobile track should contact the end stoppers of the fixed track evenly. If not, loosen the setscrews, readjust the mobile track, and retighten the setscrews (see Fig.
  • Page 18 Assembling Instructions Inserting the Track Lift into the Mobile Track Once the XY mobile track has been properly mounted and secured: 23. Position the first end stopper at the edge of the mobile track. Secure the end stopper according to the following procedure (see Fig. 18). •...
  • Page 19 Assembling Instructions RAIL STOPPER (INSERT THE TRACK LIFT BEFORE INSTALLING THE SECOND RAIL STOPPER) Fig. 19 Fig. 20...

  • Page 20: Specifications

    Specifications 2265 mm max. 2067 mm min. 89 1/8 in 81 3/8 in (KWIKtrak 180 mm) (KWIKtrak 180 mm) PRODUCT CODIFICATION 9 9 0 X X X X 30 = 3.0 m (10 ft) 35 = 3.5 m (11 ft 6 in) 40 = 4.0 m (13 ft)
  • Page 21 ÖSTERREICH GR-16121 KAISARIANI ATTIKIS POLSKA : 21 0724 36 68 ArjoHuntleigh GmbH : 21 0721 55 53 ArjoHuntleigh Polska Sp. z o.o. Dörrstrasse 85 ul. Ks Piotra Wawrzyniaka 2 AT-6020 INNSBRUCK ESPAÑA PL 62-052 KOMORNIKI (Poznan) Tel: +43 (0) 512 204 160 0 ArjoHuntleigh Ibérica S.L.
  • Page 22 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions.
