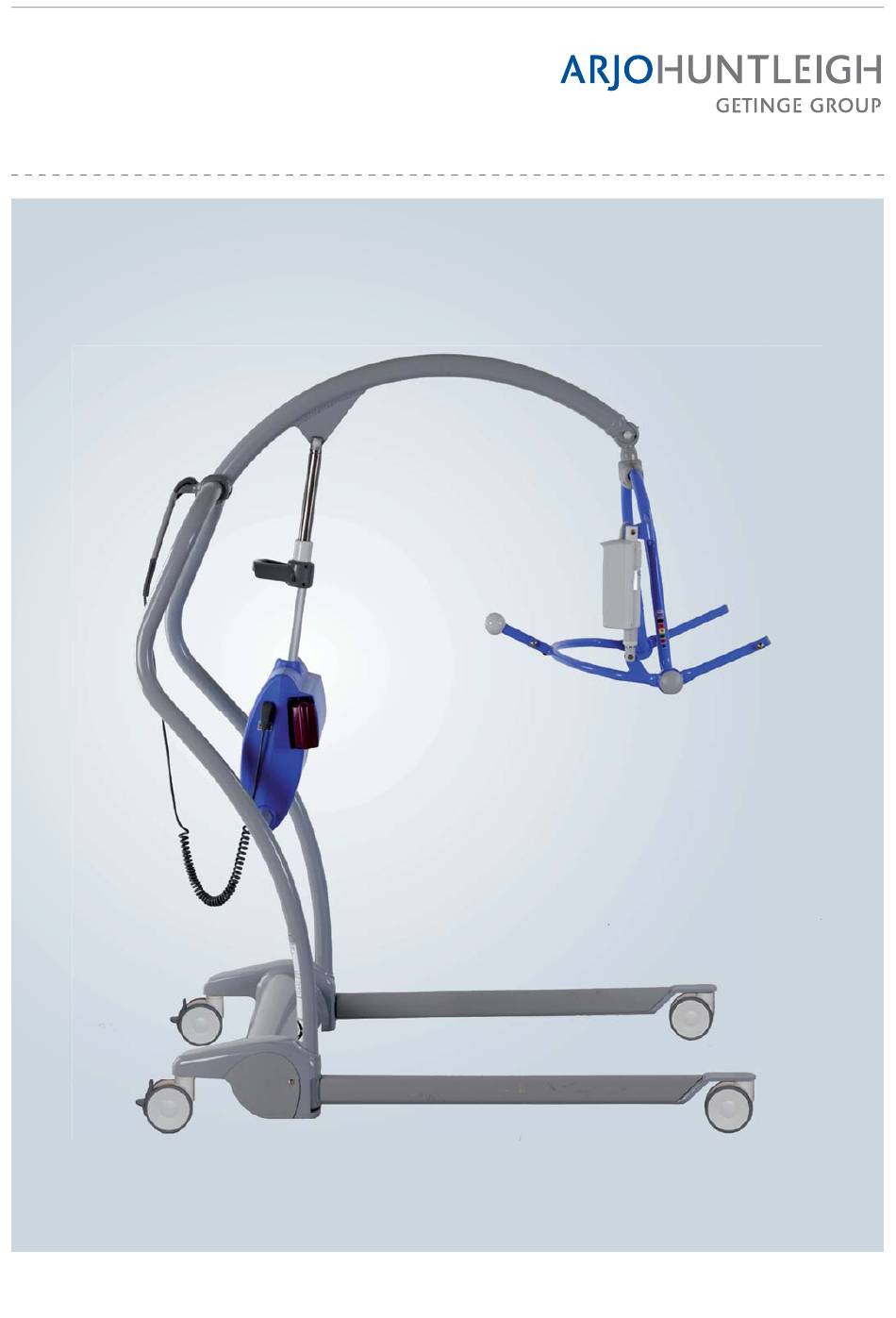

Maxi Twin
Instructions for Use
...with people in mind
•
04.KT.00_16GB
10/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maxi Twin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjohuntleigh Maxi Twin

Summary of Contents for Arjohuntleigh Maxi Twin

  • Page 1 Maxi Twin Instructions for Use ...with people in mind • 04.KT.00_16GB 10/2017...
  • Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2013. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.

  • Page 3: Table Of Contents

    Cleaning and Disinfecting Instructions ........38 Care and Preventative Maintenance ........40 Troubleshooting ..............44 Technical Specifications ............46 Dimensions ................48 Labels on the Maxi Twin ............50 Electromagnetic Compatibility ..........52 List of Standards and Certificates ........... 52 Parts and Accessories ............54...

  • Page 4: Foreword

    Thank you for purchasing ArjoHuntleigh equipment. A service routine must be performed on your Maxi Your Maxi Twin™ mobile passive lift is part of a series Twin lift every year by ArjoHuntleigh authorized of quality products designed especially for hospitals, service personnel to make sure the safety and daily nursing homes and other health care use.

  • Page 5: Intended Use

    The products may only be used by appropriately trained caregivers with adequate knowledge of the care environment and its common practices and procedures; Maxi Twin allows the handling of residents up to 182 kg (400 lbs). Maxi Twin is intended to be used for residents who: •...

  • Page 6: Safety Instructions

    Always Make Sure That: • the resident never spends long periods of time in WARNING the Maxi Twin lift, it can affect the blood flow in his/her legs. To avoid entrapment, make sure to keep • lower the Maxi Twin lift during transfer to a safe the residents hair, arms and feet close to height, little higher than a normal chair height.

  • Page 7: Preparations

    ArjoHuntleigh representative for support and service. The contact information (ArjoHuntleigh addresses) is listed on the last page of this IFU. The directions left or right on the Maxi Twin lift are given as shown in the illustration. Right Left...

  • Page 8: Parts Designation

    Parts Designation 1 Mast/Lift manoeuvring handle 12 Emergency lowering “ring” 2 Jib 13 Pivot bolt 3 Adjustable chassis legs 14 Hand control holder 4 Braked castors (rear) 15 Battery indicator light 5 Non-braked castors (front) 16 Scale (optional) 6 Powered DPS spreader bar Entire Product: 7 Hand control Type BF...

  • Page 9: Dps Spreader Bars

    DPS Spreader Bars Manual DPS (Dynamic Positioning System) Spreader Bar Powered DPS Spreader Bar Powered DPS Spreader Bar with Scale...

  • Page 10: Loop Bars 1

    Loop Bars 2-point Loop Bar (Small and Medium) 4-point Loop Bar (Large)
  • Page 11 Intentionally left blank...

  • Page 12: Slings 1

    To avoid entrapment, make sure to keep the residents hair, arms and feet close to the body and use designated grab supports during any movement. NOTE If ArjoHuntleigh Slings and Flites (disposable slings) are used with the Maxi Twin, then always refer to their instructions before use.
  • Page 13 ArjoHuntleigh standard sling profiles that can be used with the Maxi Twin lift Examples of Loop slings for Loop spreader bars Toilet loop General sling purpose loop with head sling with head support support Examples of Passive Clip slings for DPS spreader bars...

  • Page 14: Product Description/Function

    Product Description/Function Hand Control Fig. 1 CAUTION Do not drop the hand control into water. The hand control has an integrated hook which makes it easy to attach. When not in use, hook it over the hand control hang point at the top of the mast (B) or the hand control holder located on the main lift actuator (A).

  • Page 15: Castor Brakes

    Fig. 1 The chassis rear castors have brakes which can be foot operated to keep the Maxi Twin lift in position. Brake (A) and release the brake (B) as shown on the illustration. The brakes on both castors have to be applied to get full effect. (See Fig. 1) Driving/Positioning Handles Fig.

  • Page 16: Emergency Stop Button

    The emergency lowering function will only work when there is a load in the Maxi Twin lift exceeding 2 kg (4.4 lbs). It can be used in the event of a main control failure. The emergency lowering “Ring” (B) is on the top of the main lift...

  • Page 17: Powered Spreader Bar

    Powered Spreader Bar Fig. 1 Four sling attachment lugs (A) enable the sling clips to be attached. The rotational positioning handle (B) allows you to position the resident sideways. The powered spreader bar (C) is operated from the hand control. The resident can be positioned in a reclined or sitting position.

  • Page 18: Powered Spreader Bar

    The powered spreader bar is waterproof and is classified actuator. positioning labelled by ArjoHuntleigh as a wet environment unit. This handle water level mark signifies that the lower end of the spreader bar and sling may be immersed in bath water or used for DPS = Dynamic Positioning System showering.

  • Page 19: Using Your Maxi Twin

    It’s recommended to apply the brakes however, when lifting a resident from the floor. This may prevent any unwanted or accidental movement of the Maxi Twin lift that may cause harm or injury.

  • Page 20: Attachment Of Clip/Loop (Passive Sling)

    Attachment of Clip/Loop (Passive Sling) Clip Sling (3 Steps) Fig. 1 For more information, refer to respective sling IFU. 1 Place the clip on the spreader bar lug. (See Fig. 1) 2 Pull the strap down. (See Fig. 2) Fig. 2 3 Make sure all lugs are locked at the top end of the clips and Fig.

  • Page 21: Detachment Of Clip/Loop (Passive Sling)

    Detachment of Clip/Loop (Passive Sling) Clip Sling (3 Steps) Fig. 1 For more information, refer to respective sling IFU. 1 Pull the strap up. (See Fig. 1) 2 Make sure the lug is unlocked at the bottom of the clip. Fig.

  • Page 22: Attach The Leg Clips/Loops (Passive Sling)

    Attach the Leg Clips/Loops (Passive Sling) Straight Leg Attachment (2 Steps) Fig. 1 For most residents, it is recommended to use the straight attachment of the leg clips/loops. 1 Keep the leg straps straight. 2 Attach the leg clips/loops so that the leg straps are positioned vertically.
  • Page 23 Intentionally left blank...

  • Page 24: Transferring Resident - Dps Spreader Bar

    The wide part of the spreader bar should positioned at, or just below shoulder level. Make sure that the Maxi Twin lift is close enough to be able to attach the sling shoulder clips to the spreader bar.
  • Page 25 6 Before transfer, turn the resident to face the caregiver at Fig. 6 normal chair height. This provides confidence, secure feeling and improves the Maxi Twin lift’s stability. (See Fig. 6) 7 Remember to release the brakes, if these have been applied, before attempting to transfer the resident.

  • Page 26: To Lift From A Bed

    Using the adjustable width chassis legs, it is possible to manoeuvre around obstructions such as bed legs. (See Fig. 3) 4 Position the Maxi Twin lift so that the spreader bar is just above and centrally situated over the resident. Fig. 4...
  • Page 27 10 Move the Maxi Twin lift away before removing the sling from under the resident. If transferring the resident to a chair refer to the previous section To Lift from a Chair on page 24.

  • Page 28: To Lift From The Floor

    This will raise the resident’s head and shoulders slightly. (See Fig. 3) CAUTION Make sure that the sling is not put around or caught under the legs of the Maxi Twin. This might damage the spreader bar during the Fig. 3 lifting.
  • Page 29 If the resident is prone to spasms, he/she may be lifted with the Maxi Twin lift. However, special attention needs to be paid to support the head during the early part of the lift.

  • Page 30: Transferring The Resident - Loop Spreader Bar

    To avoid entrapment, make sure to keep the residents hair, arms and feet close to the body and use designated grab supports during any movement. Use ArjoHuntleigh loop slings with the 2-point loop bar. To Lift from a Chair Fig. 1 (7 steps) 1 Lean the resident forward if necessary.

  • Page 31: To Lift From A Bed

    To Lift from a Bed Fig. 1 (7 steps) 1 Place the sling under the resident as if it was a drawsheet. 2 Attach the shoulder loops to the hooks (A). See section, Attachment of Clip/Loop (Passive Sling) on page 20. 3 Flex the resident’s legs and bring the sling leg pieces under the thighs.

  • Page 32: To Lift From The Floor

    1 Put the sling down behind the resident’s back and bring the leg pieces of the sling into position. CAUTION Make sure that the sling is not put around or caught under the legs of the Maxi Twin. This might damage the spreader bar during the lifting. Fig. 1 2 Place the resident’s legs over the chassis and bring the lift...
  • Page 33 Intentionally left blank...

  • Page 34: Home Care Use

    Home Care Use Using the Maxi Twin Lift For Distributors and Renters Before using the Maxi Twin lift in home environment When transporting the Maxi Twin lift to the make sure that: (See Fig. 1-3) customer with a van: •...
  • Page 35 Fig 1 Transfer between bed and wheelchair with a sling lift mm (inches) 900 (36”) 800 (31”) 1700 (67”) 3500 (138”) Fig 2 Toiletting with a sling lift 800 (31”) 800 (31”) 2000 (79”) Fig 3 1200 47" 1100 43" 1000 39"...

  • Page 36: Battery Instructions

    To prolong the life of the battery, charge it at regular intervals, i.e. every night. • If the Maxi Twin lift is used frequently, it is recommended to use two batteries, one in operation and one as a stand-by in the charger.
  • Page 37 Intentionally left blank...

  • Page 38: Cleaning And Disinfecting Instructions

    (e.g. Arjo Clean™). • Protective gloves If you have any questions regarding disinfecting the • Protective glasses Maxi Twin lift, or wish to order disinfectant fluid, • Spray bottle with disinfectant contact ArjoHuntleigh Customer Service. • Spray bottle with water Make sure to have the Material Safety Data Sheets •...
  • Page 39 Disinfection (Step 6-10 of 10) Always Follow these 10 Steps for Cleaning and Disinfection. 6 Spray disinfectant on the: If an ArjoHuntleigh shower panels will be used, see • the Maxi Twin lift respective IFU. • all removed parts Removing visual residue (Step 1-2 of 10) 7 Allow a disinfection time according to the 1 Remove slings from the lift.

  • Page 40: Care And Preventative Maintenance

    Care and Preventative Maintenance The Maxi Twin lift is subject to wear and tear, and the following actions must be performed when specified to make sure that the product remains within its original manufacturing specification. WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule.
  • Page 41 IFU. Every day Fig. 1 • Disinfect the Maxi Twin lift. The Maxi Twin lift has to be disinfected immediately after use. ArjoHuntleigh cleaning agents should be used in recommended concentrations. • Visually check the slings. Check for fraying, holes, cuts, loose stitching and damaged plastic clips.
  • Page 42 Test the movement of the spreader bar and the open/ close function of the legs. All functions should work as expected without divergences. Yearly The Maxi Twin lift has to be serviced according to the Preventive Maintenance Schedule (Qualified Personnel Action/Check).
  • Page 43 WARNING To avoid injury and/or unsafe product, the maintenance activities must be carried out at the correct frequency by qualified personnel using correct tools, parts and knowledge of procedure. Qualified personnel must have documented training in maintenance of this device. Every QUALIFIED PERSONNEL Action/Check YEAR...

  • Page 44: Troubleshooting

    Troubleshooting PROBLEM ACTION The lift raises or lowers after the hand Activate the red emergency stop button and pull the battery control buttons are released. out, remove the resident from the lift and contact qualified personnel. The lift does not raise or descend 1 Make sure that the battery is fully connected in the battery when the hand control buttons are compartment.
  • Page 45 Intentionally left blank...

  • Page 46: Technical Specifications

    Component weights Maxi Twin Lift (no scale, hanger bar or battery) 45.5 kg (100 lbs.) Maxi Twin Lift and Scale (no hanger bar or battery) 48.5 kg (107 lbs.) Maximum total weight of lift (Lift and Patient) 240 kg (526 lbs.) Powered DPS Hanger bar 8 kg (15,2 lbs.)
  • Page 47 This requirement applies in the European Union. Do not dispose these products as unsorted municipal waste. You can return your device and accessories to ArjoHuntleigh or you can contact your local authorities for advice on disposal.

  • Page 48: Dimensions

    Dimensions Dimensions of the Maxi Twin lift C.S.P = Central Suspension Point Reference Note Dimension (mm) Max. External Length 1298 Max. Internal Length Max. External Width 1371 Max. Internal Width 1231 Min. External Width Min.Internal Width Height of C.S.P at Max. Hoisting Reach 1281 Max.
  • Page 49 Dimensions of the Maxi Twin lift with a scale C.S.P = Central Suspension Point Reference Note Dimension (mm) Max. External Length 1298 Max. Internal Length Max. External Width 1371 Max. Internal Width 1231 Min. External Width Min.Internal Width Height of C.S.P at Max. Hoisting Reach 1401 Max.

  • Page 50: Labels On The Maxi Twin

    Labels on the Maxi Twin On the data label you will find the following A battery is the power source of this information: equipment. Safe Working Load Environmental danger. Total mass of equipment including its safe working load. kg/lbs Not for disposal...
  • Page 51 182 kg 400 lb Clips Water Level Instructions Mark Emergency Label Lowering Label Sling range label Battery Indicator Label Brand Name Battery Label Product Name Data Label Identification Label...

  • Page 52: Electromagnetic Compatibility

    EMC information below. The Maxi Twin lift is intended for use in the electromagnetic environment specified below. The customer or the user of the Maxi Twin lift should assure that it is used in such an environment.
  • Page 53 RF communications equipment (transmitters) and the Maxi Twin lift by maintaining a distance of not less than 1 meter to any part of the Maxi Twin lift, including cables, if the transmitters output power rating exceeds 1 W.

  • Page 54: Parts And Accessories

    Parts and Accessories No picture Battery and charger Sling Contact your local representative.
  • Page 55 AUSTRALIA FRANCE POLSKA ArjoHuntleigh Pty Ltd ArjoHuntleigh SAS ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
  • Page 56 Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjohuntleigh.com ArjoHuntleigh is a world-leading provider of integrated products and solutions that improve the lives of patients and residents with reduced mobility. We help healthcare facilities deliver wellness and effective everyday care, early mobilisation, safe patient handling, venous thromboembolism prevention, pressure injury prevention, hygiene routines, bariatric care and diagnostics.
