Maxi Air
INSTRUCTIONS FOR USE
...with people in mind
04.MS.01_7GB . July 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maxi Air and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjohuntleigh Maxi Air

Summary of Contents for Arjohuntleigh Maxi Air

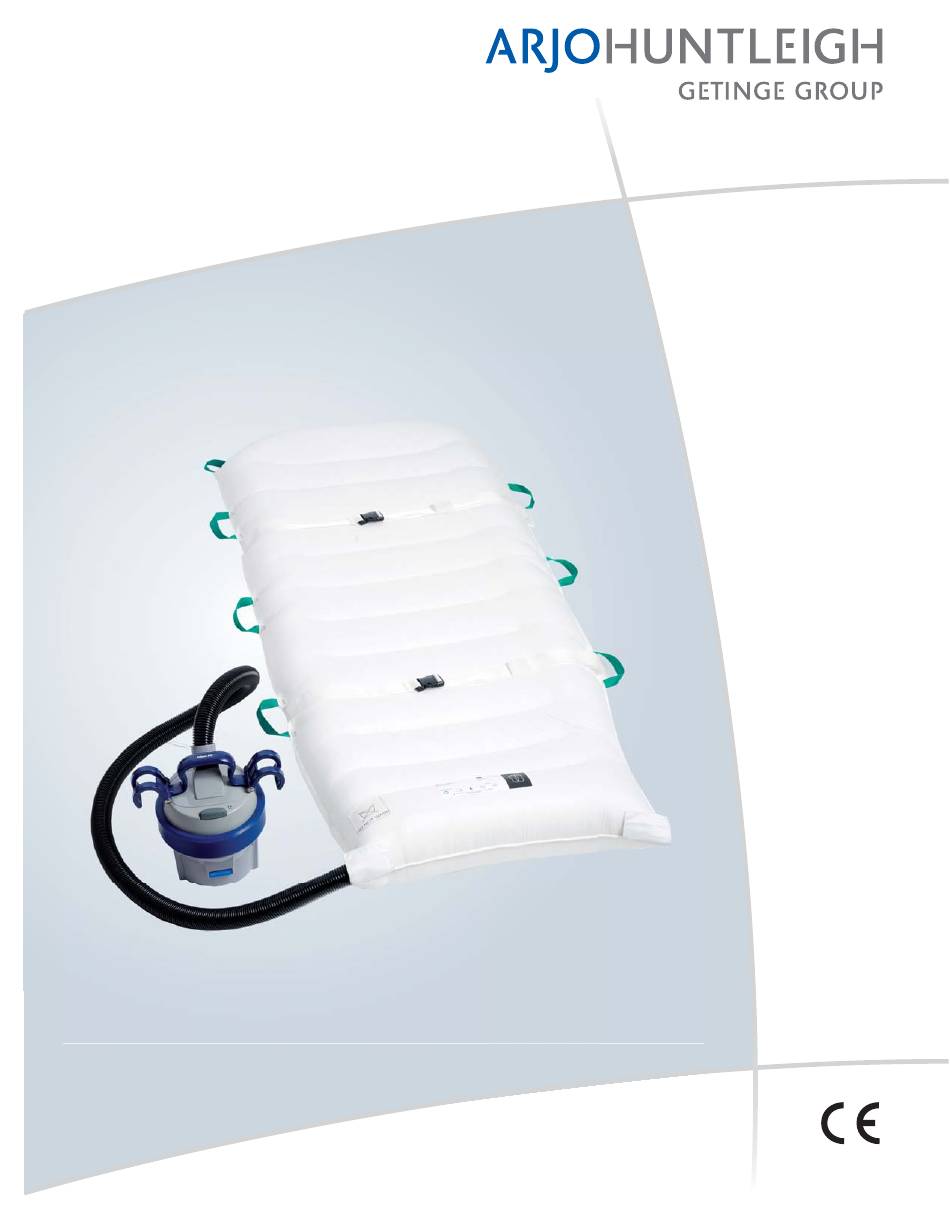

  • Page 1 Maxi Air INSTRUCTIONS FOR USE ...with people in mind 04.MS.01_7GB . July 2013...
  • Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh AB 2013. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or in...

  • Page 3: Table Of Contents

    Product Specifications .............. 8 Parts Designation ..............10 Product Description/Functions ..........12 Correct Placement of the Patient ..........13 Correct Placement of the Maxi Air air supply ......14 Transfer ................... 16 Disinfection Instructions ............20 Care and Preventive Maintenance .......... 22 Check and Change the Air Filter ..........

  • Page 4: Foreword

    Thank you for purchasing ArjoHuntleigh Definitions in this IFU: equipment. WARNING Your Maxi Air™ is a part of a series of quality products designed for patient transfer especially for hospital and extended care facilities. Means: Please contact us if you have any questions about the Safety warning.

  • Page 5: Intended Use

    Expected Lifetime this Instructions for Use (IFU). The expected lifetime of the Maxi Air air supply, is unless otherwise stated five (5) years, if subject to The equipment must only be used for the purposes...

  • Page 6: Safety Instructions

    WARNING To avoid bodily injury to the patient, use the Maxi Air in an environment where the temperature is below 32 °C (90 °F). Temperatures above 32 °C (90 °F) can cause the Maxi Air mattress surface to...

  • Page 7: Preparations

    Product Specifications. section Parts Designation in this IFU. If any part is missing or damaged - do NOT use 2 Check that all parts of the Maxi Air is in place. the product! Compare with the section Parts Designation in this IFU.

  • Page 8: Product Specifications

    Product Specifications Maxi Air air supply Dimensions: 12,5 x 7 x 7”(317,5 x 178 x 178 mm) Weight: 11 lbs. (5 kg) Material: Fire Retardant ABS, NBR Air Hose Lengths: 78” (1980 mm), 300” (7620 mm) Optional Power Cord Length: 180” (4570 mm) Maxi Air mattress Widths: L 34”...
  • Page 9 Intentionally left blank...

  • Page 10: Parts Designation

    Parts Designation Maxi Air air supply 1 Carrying handle 2 Attachment hooks 3 Socket inlet 4 Push button (On/Off) 5 LED mains power indicator 6 Rubber bumper 7 Cover 8 Air filter (inside) 9 Air hose 10 Socket 11 Snap lock button (air hose)

  • Page 12: Product Description/Functions

    (See Fig. 2) 3 Use the velcro lip to secure the air hose in place. (See Fig. 3) Operation and controls 1 Plug in the power cord from the Maxi Air air supply to an electrical outlet. Fig. 2 2 The LED will light up to indicate that the mains is turned on.

  • Page 13: Correct Placement Of The Patient

    Correct Placement of the Patient WARNING Always make sure the patient has the correct size of the Maxi Air mattress. If the Maxi Air mattress is too narrow, the Maxi Air mattress can tip over during transfer causing serious injury to the patient and the caregivers.

  • Page 14: Correct Placement Of The Maxi Air Air Supply

    Make sure it is secured from movement and from falling down. (See Fig. 1) • Make sure the Maxi Air air supply is not placed in front of the electrical outlet that is being used. • Make sure the power cord on the floor is rolled up.
  • Page 15 Intentionally left blank...

  • Page 16: Transfer

    (See Fig. 1) 4 Place the Maxi Air mattress with the labels upwards, underneath the patient. Follow local routines. 5 Make sure the patient is correctly placed on the Maxi Air mattress. WARNING To prevent patient from rolling off the Maxi Air mattress, the safety belts must be used during Fig.
  • Page 17 11 Hang the Maxi Air air supply on the receiving surface. 12 Plug the power cord into an electrical outlet. WARNING To avoid sudden deflation make sure the air hose is properly connected before transfer.
  • Page 18 Sending side: feel underneath the Maxi Air mattress to make sure that the patient can’t be felt through it. (See Fig. 4) If any part of the patient can be felt, the Maxi Air mattress is partly inflated. To correct this problem: Fig. 5 •...
  • Page 19 17 Receiving side: meet up the Maxi Air mattress when it is Fig. 7 halfway over the receiving surface. (See Fig. 7) WARNING To avoid bodily injury, make sure that the Maxi Air mattress is centred on the receiving surface, before the Maxi Air mattress is deflated.

  • Page 20: Disinfection Instructions

    If the Maxi Air mattress is washed, the paper coating will disappear, revealing a CAUTION DO NOT REUSE sign. Do not lower down the Maxi Air air supply in disinfectant solution. This could damage the electrical components and cause inter- nal corrosion.
  • Page 21 Maxi Air air supply or if more suitable by spraying water and wipe with a 4 Plug the air outlet of the Maxi Air air supply with clean cloth. The cloth should occasionally be a cloth or a disposable towel to prevent moisture/...

  • Page 22: Care And Preventive Maintenance

    Care and Preventive Maintenance The Maxi Air system is subject to wear and tear, and the following actions must be performed to make sure that the product remains within its original manufacturing specification. WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule.
  • Page 23 Caregiver obligations shall be carried out by personnel with sufficient Maxi Air knowledge, following the instructions in this IFU. Before Every New Patient Disinfect the Maxi Air air supply. Make sure the Maxi Air air supply is disinfected between patients according to section Disinfection Instructions. Every Transfer Visually check all exposed parts.

  • Page 24: Check And Change The Air Filter

    Fig. 3 4 Check the air filter (D) for dirt. (See Fig. 3) 5 If the air filter is dirty, replace it. Do not use the Maxi Air air supply until the air filter has been changed. 6 Attach the cover (C) and the rubber ring (B). (See Fig. 2) If the product does not work as intended, immediately contact your local ArjoHuntleigh representative for support.

  • Page 25: Troubleshooting

    PROBLEM ACTION • Check power supply. • Check power cord connections on the Maxi Air air No air flow. supply and the electrical outlet. • Check air hose connections between the Maxi Air air supply and the Maxi Air mattress.

  • Page 26: Technical Specifications

    Technical Specifications Technical Data Maxi Air air supply Weight 11 lbs. (5 kg) Expected life 5 years from manufacturing date Protection class Not protected against ingress of water Pollution degree Operating force: Push button 30.0 N Maximum duty cycle For continuous use...
  • Page 27 10-70% at +20°C (+68°F) Atmospheric pressure 700 hPa to 1060 hPa Transport and Storage Temperature -40°C to +80°C (-40°F to +176°F) Maxi Air air supply -17°C to +43°C (+0°F to +110°F) Maxi Air mattress Humidity 10-70% at +20°C (+68°F) Atmospheric pressure...
  • Page 28 The device should be recycled according to national regulations. Package Wood and corrugated cardboard recyclable Maxi Air air supply Electric, metal and plastic parts shall be separated and recycled according to (WEEE) and according to markings on the unit. Disposal (Environmental Protection)
  • Page 29 Intentionally left blank...

  • Page 30: Labels On Maxi Air Mattress

    Labels on Maxi Air mattress Type B, Applied part: Foot end of mattress protection against electrical shock in accordance with IEC 60601-1. Follow Instructions for Use The name and address of the Read the Instruction for Use manufacturer. before use...
  • Page 31 Maxi Air MAS014000-WW Date: Patient Name: LATEX Data label...

  • Page 32: Labels On Maxi Air Air Supply

    Labels on Maxi Air air supply CE marking in accordance IP2X Protection class: The product with the Medical Devices must only be used in a dry Directive 93/42/EEC. The location. equipment has been EMC- Class I Insulation class tested and fulfils all requirements according to EN/IEC 60601-1-2.
  • Page 33 Identification Label MR unsafe Maxi Air, Model: MASXXXXXX-US Company Logo Data label 120V ArjoHuntleigh AB,Verkstadsvägen 5, 241 38 Eslöv (SWEDEN). Made in Sweden Maxi Air, Model: MASXXXXXX-AU Data label 230V ArjoHuntleigh AB,Verkstadsvägen 5, 241 38 Eslöv (SWEDEN). Made in Sweden...

  • Page 34: Approvals And List Of Standards

    Approvals and List of Standards CERTIFICATE STANDARDS EN/IEC 60601-1: 2005, Medical electrical equipment. General requirements for safety. CAN/CSA-C22.2 No. 601.1, Medical equipment Certified for Canada...

  • Page 35: Electromagnetic Compatibility

    EMC information below. The Maxi Air system is intended for use in the electromagnetic environment specified below. The customer or the user of the Maxi Air system should make sure that it is used in such an environment.
  • Page 36 Guidance and Manufacturer’s declaration - Electromagnetic Immunity The Maxi Air system is intended for use in the electromagnetic environment specified below. The customer or the user of the Maxi Air system should ensure that it is used in such an environment.
  • Page 37 3 Vrms 150 kHz to 80 Portable and mobile RF IEC 61000-4-6 communications equipment should be used no closer to any part of the Maxi Air system including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

  • Page 38: Parts And Accessories

    Parts and Accessories Power cord Air hose Extended air hose US 8563082 8662971 8664411 AU 6364344 Air filter For disinfectant, contact Maxi Air mattress your local representative. L, XL, XXL 6305180...

  • Page 39: Arjohuntleigh Addresses

    ArjoHuntleigh Addresses AUSTRALIA FAR EAST POLSKA ArjoHuntleigh Pty Ltd ARJO Far East Limited ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth street Unit 3A, 4/F., block B Hoi Luen ul. Ks Piotra Wawrzyniaka 2 O’Connor Industrial Centre PL 62-052 KOMORNIKI (Poznan)
  • Page 40 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions.
