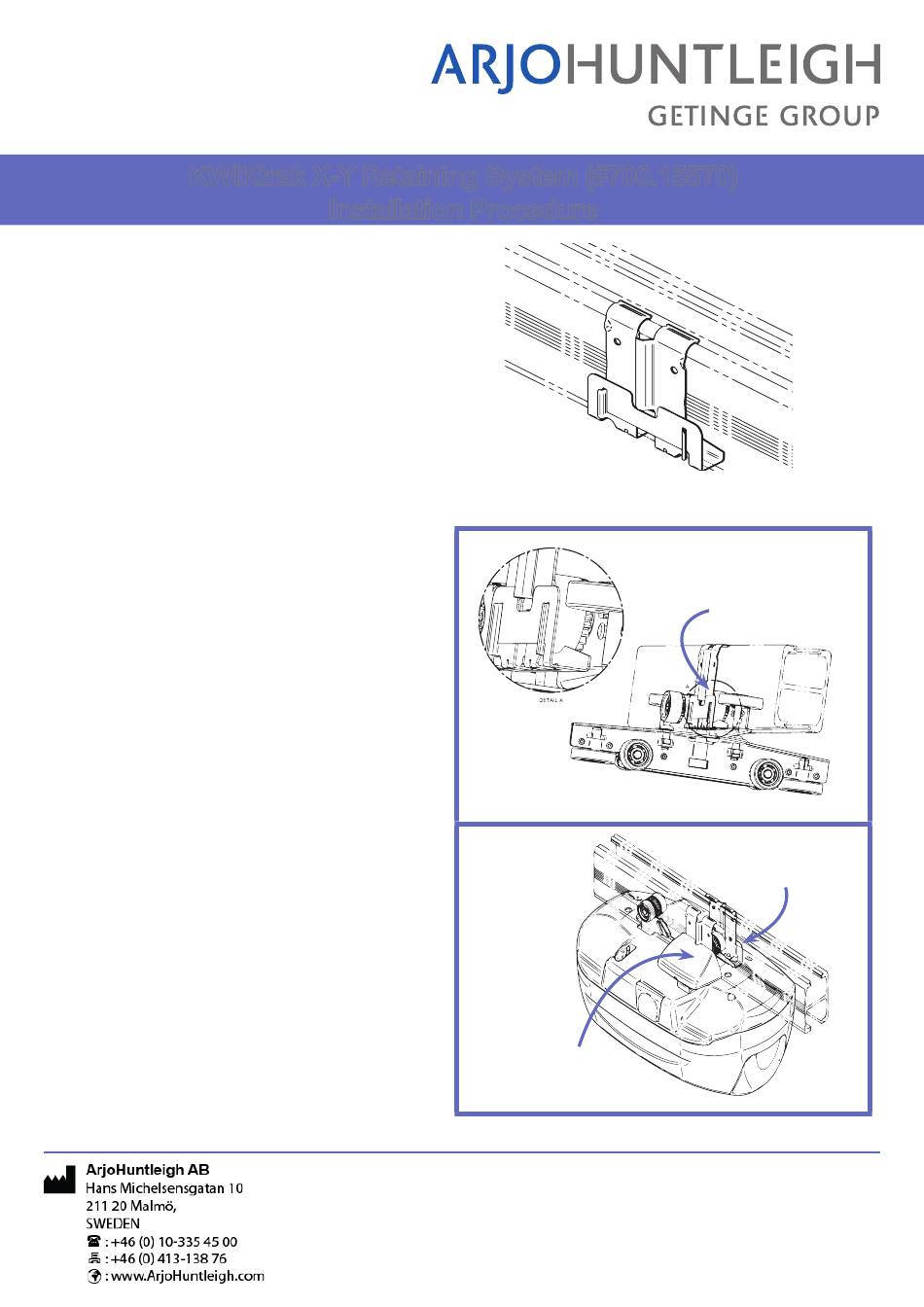

KWIKtrak X-Y Retaining System (#700.15570)
The KWIKtrak X-Y Retaining System is necessary
when installing the X-Y configuration or with a single
rail configuration, when using a 2-function lift (manual
horizontal displacement). It provides an easier
positioning of the lift with the charging station and
properly retains the lift on the charging station.
The installation of the retaining system must respect the following instructions depending on the type of
configuration.
1) X-Y
Configuration:
must be installed on the fixed rail of the X-Y
configuration, where the mobile rail will be when
charging the battery of the lift. A second retaining
system must be installed on the moving rail, as
described below (#2).
2) One rail configuration: The retaining system
must be installed on the opposite side of the
charger contact station.
.
Installation Procedure
The
retaining
system
Charger contact
station
Retaining system
Retaining system
001.15570.BIL rev.2 • February 2014
