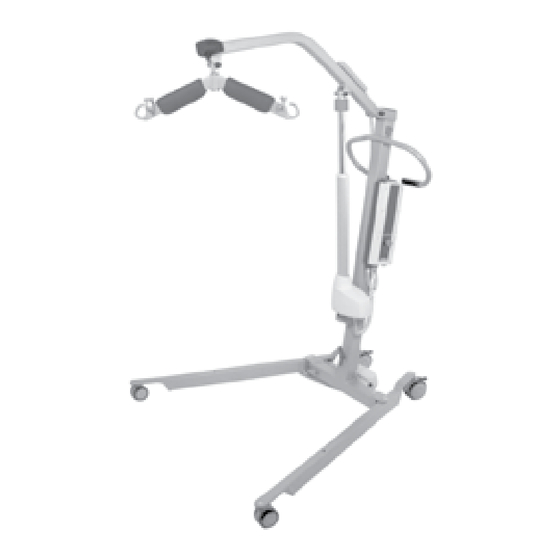

Dismantleable patient lift with spreading travel legs
Table of Contents

Advertisement

Available languages

Available languages

Casalift 18001
Casalift 140E
Casalift 180E
Dok.-Nr. (DE) / Doc.-no. (GB) / Doc n° (FR) /
22079BE
Doc.-nr. (NL): 22079 – 15.10.2010
Bedienungsanleitung
zerlegbarer Patientenlifter
mit Fahrbeingrätschung
Operating manual
Dismantleable patient lift
with spreading travel legs
Gebruiksaanwijzing
Demontabele patiëntenliften
met rijpotenspreiding
Manuel d'utilisation
Lève-personne démontable
avec dispositif d'écartement
des jambes
DE
GB
NL
FR
