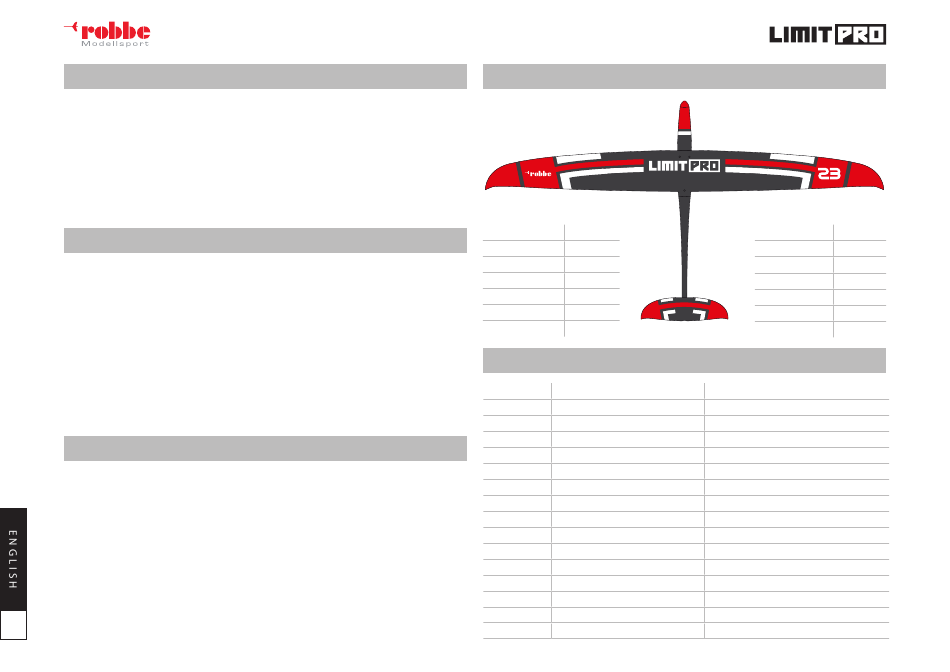

Flight Instructions; Safety Instructions; Specifications; Box Content/Needed Accessories - ROBBE LIMIT PRO Instruction And User's Manual

Congratulations on your purchase of the new LIMIT PRO!
The LIMIT PRO is a high-quality FRP hotliner with a dynamic flight envelope.
It can be flown within in a broad speed range. There are various ways of constructing the model, depending
on your preferences.
Therefore the solutions stated in this manual should only be considered as recommendations.
For the most parts, the PNP (plug and play) version is already prefabricated.
The ARF version (almost ready to fly) requires modeling experience and basic technical knowledge in
construction.
Thus there are different ways to achieve a model with good flight skills.
This is why most alternatives are in fact explained in the manual but not necessary shown in the pictures.
Please read this manual carefully before you start assembling the model.
F L I G H T I N S T R U C T I O N S
• Before the first flight, observe the instructions in the „Safety Instructions" section.
• To fly in the model, you should choose a day with as little wind as possible
• A large, flat meadow without obstacles (trees, fences power lines etc.) is suitable for the first flights.
• Carry out another functional test of the drive and remote control.
• After assembling the model on the airfield, check once again that all model components such as wing,
tail units, wing mounts, engine, linkage, etc. are firmly seated.
• For the hand start a helper should be present, who can transport the model with not too little thrust
into the air.
• The start usually takes place against the wind
• Do not stall the model near the ground
• Do not initiate tight bends in the immediate vicinity of the ground.
• Check the reactions of the model to the rudder deflections. If necessary, the rashes after landingto
increase or decrease the size accordingly.
• The minimum flight speed must be at an adequate safety altitude.
• Initiate the landing with sufficient speed
S A F E T Y I N S T R U C T I O N S F O R B A T T E R I E S
• Do not immerse the battery in water or other liquids.
• Do not heat, throw into fire or microwave.
• Do not short-circuit or charge with reversed polarity
• Do not expose, deform or throw the battery to pressure
• Do not solder directly on the battery
• Do not change or open the battery
• Only charge the battery with suitable chargers, never connect it directly to a power supply unit.
• Never charge or discharge the battery or charger on a flammable surface.
• Never leave the battery unattended during charging or discharging processes.
• Never charge or discharge the battery in direct sunlight or near heaters or fire.
• Do not use the battery in places subject to high static discharge.
• Keep the battery away from children
• Do not associate leaked electrolyte with fire, as it is highly flammable and may ignite.
• The electrolyte liquid should not get into the eyes, if it does, rinse immediately with plenty of clear
12
water and then see a doctor.
• Observe the safety instructions of the battery manufacturer and the charger manufacturer.
Instructions and User Manual
P R E F A C E S P E C I F I C A T I O N S
Span 1700 mm
Length 900 mm
Weight (dry) approx.550 g
Flying weight approx.1350 g
Wing Area 23,5 dm²
Airfoil MH-30
C.G. 68 - 72 mm
B O X C O N T E N T / N E E D E D A C C E S S O R I E S
ARF
Motor not included
ESC not included
Folding Prop not included
Spinner not included
Battery not included
Servo ELE not included
Servo RUD /
Servo AILE not included
Servo FLAP /
Servo cable not included
MULTIlock /
MPX plugs /
Adhesives not included
TX min. 5 Channels (not included)
RX min. 7 Channels (not included)
Elevator yes
Rudder no
Ailerons yes
Flaps no
Flaps no
Motor yes
Landing Gear no
PNP
Robbe X36-800 #5800 (built-in)
not included (RoControl 6-60 #8711)
Aeronaut CAM Prop 12x8" #7234/50 (included)
Alu Turbo Spinner 38mm (included)
not included (ro-Power 4S 3200-4000mAh)
1x Robbe FS-155 MG #9106 (built-in)
/
2x Robbe FS-155 MG #9106 (built-in)
/
2x 20cm (JR), 3x 50cm (JR)
/
/
UHU Por, Epoxy, Thread Locker (n.included)
min. 5 Channels (not included)
min. 7 Channels (not included)
