Supermicro SC847E1C Series User Manual page 125

E-16 CSE-PTJBOD-CB3 IPMI Static IP to DHCP Setting
IP Address to DHCP Setting
1. Download the utility from the Supermicro website or technical support
2. Extract the file to a known folder.
3. By default, the CSE-PTJBOD-CB3 will be configured in static IP 192.168.1.99
4. Change the host to static IP as 192.168.1.10
5. Go to the IPMI website and select the Configuration tab and then select the
Network page
6. Change the setting from Static to DHCP mode
If default website is not responding, press the reset button for more than
ten seconds to reset to default. You will observe that the fan speed will slow
and then return to normal. Continue to change to DHCP mode when the fan
reaches normal speed
7. Save the new setting
8. Change the host IP back to DHCP mode
9. Determine the DHCP IP address of the host, for example 10.1.1.50

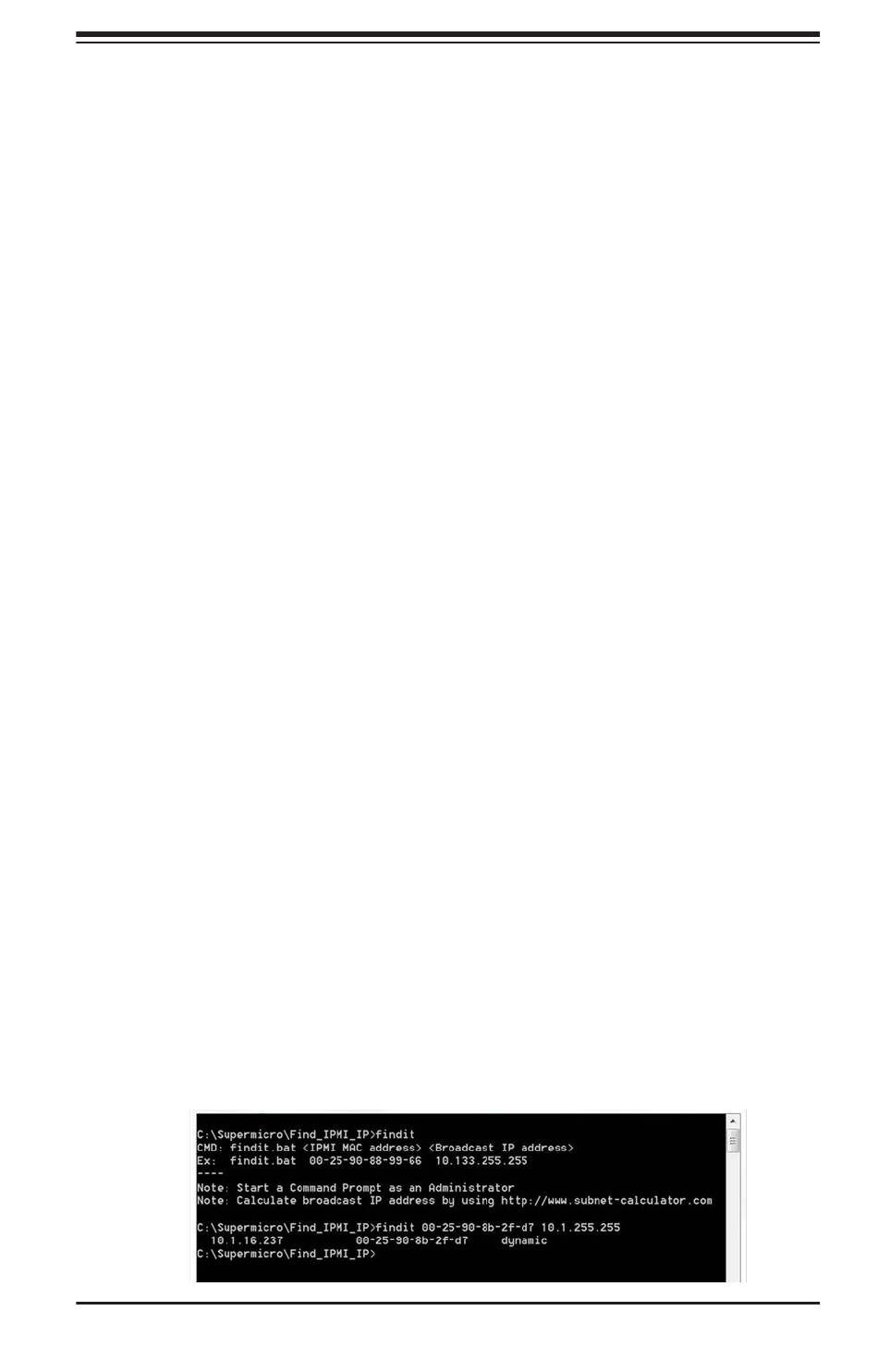

10. Run the command prompt with administrative privileges
11. Go to the utility folder and type in:
findit 00-25-90-xx-xx-xx yy.zz.255.255
Where: xx-xx-xx is, enter the CSE-PTJBOD-CB3 MAC ID. yy.zz represents
the first two octets of your host IP.
Example: findit 00-25-90-xx-xx-xx 10.1.255.255
12. The utility will return the IP address of the CSE-PTJBOD-CB3. Enter the IP in
browser and access the IPMI web GUI
