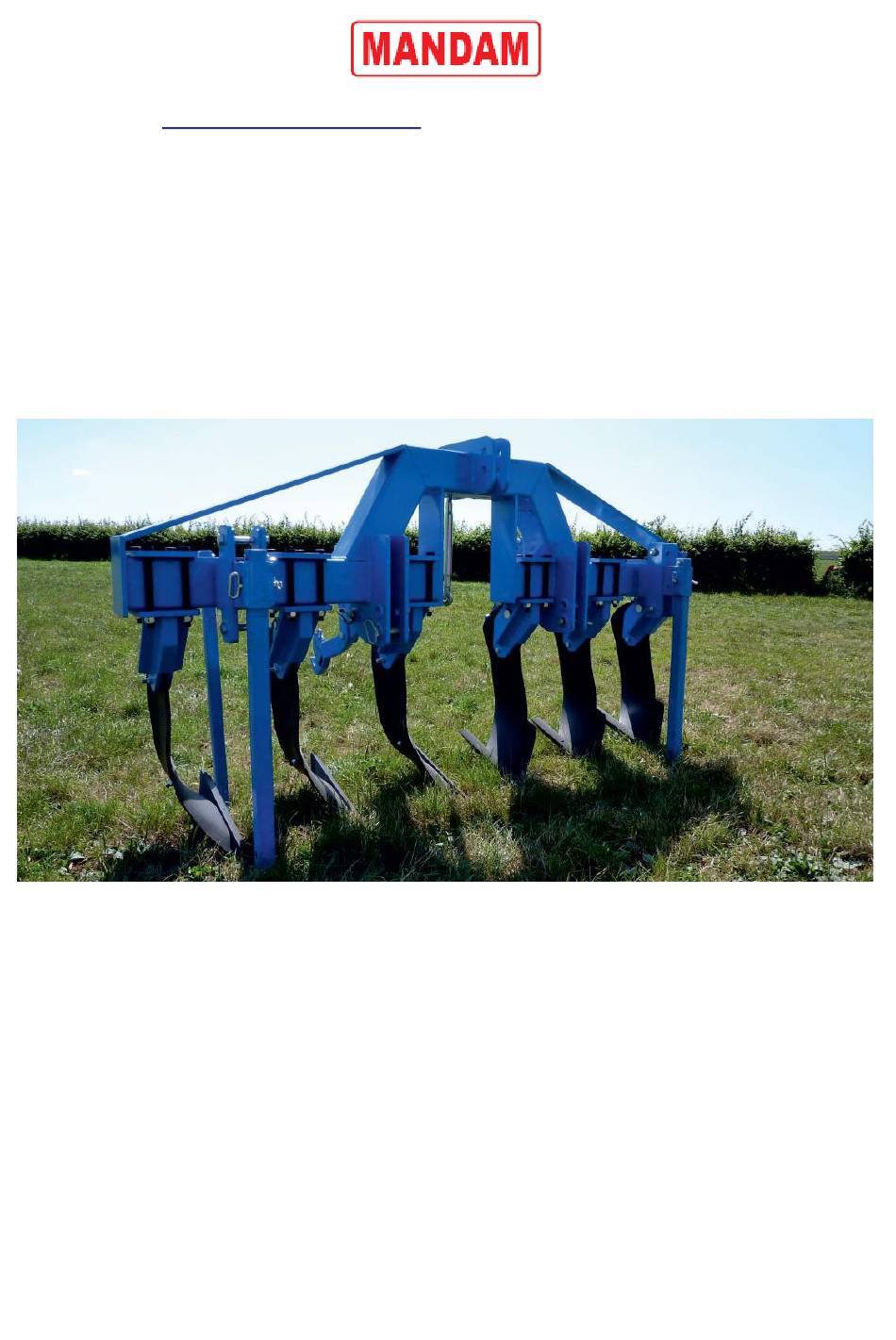

- Page 1 P.P.H. MANDAM Sp. z o.o. 44-100 Gliwice ul.Toruńska 2 e-mail mandam@mandam.com.pl Tel.: 032 232 26 60 Fax: 032 232 58 85 NIP: 648 000 16 74 REGON: P – 008173131 INSTRUCTION MANUAL WITH A LIST OF SPARE PARTS MGP SUBSOILER...
- Page 2 In accordance with the Ordinance of the Minister of Economy dated 21 October 2008 (Journal of Laws No. 199, item 1228) and European Union Directive 2006/42/EC dated 17 May 2006 Przedsiębiorstwo Produkcyjno-Handlowe „MANDAM” Sp. z o.o. ul. Toruńska 2 44-100 Gliwice...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..................4 1.1 Safety signs and inscriptions ..............4 2. Intended purpose of the subsoiler.............. 5 3. Safe operation..................6 4. General information on the subsoiler operation..........7 4.1 Adjustment of the subsoiler..............7 4.2 Working with the subsoiler .............. -
Page 4: Introduction
1. Introduction We sincerely congratulate you on your purchase of the MGP subsoiler. This manual provides information on the hazards that may occur during working with the subsoiler, technical data and the most important indications and recommendations you need to know and apply for its proper operation. Recommendations that are important for safety reasons are marked with: This machinery has a rating plate located on the main frame. -
Page 5: Intended Purpose Of The Subsoiler
Table 1. Information and warning signs Safety sign Meaning of the safety mark Place the sign is located on the machine Read the operating instructions The subsoiler frame near the before using this machinery top connection fixing point Risk of toes or feet being crushed The subsoiler frame near the top connection fixing point The subsoiler frame near the Do not stand too close to hoists... -
Page 6: Safe Operation
WARNING! The subsoiler is intended exclusively for agricultural work. Use for other purposes will be construed as improper use and will result in loss of warranty. Failure to comply with these operating instructions will also be construed as misuse. WARNING! The manufacturer is not responsible for damage caused by misuse of the machine. 3. -
Page 7: General Information On The Subsoiler Operation
the subsoiler should be parked in an area out of the reach of the farm animals, use and operation of the machine by children or persons unfamiliar with the instructions or under the influence of alcohol is prohibited. WARNING! Failure to follow the above rules may present a risk to the operator and any third parties, as well as damage to the machine. -
Page 8: Working With The Subsoiler
Figure 1. Adjustment of operation depth by means of the wheel on the subsoiler: 1 - depth adjustment bolt; 2 - bar with openings in the support wheel; 3 - support wheel bar handle. WARNING! Prior to working with the subsoiler, check all bolted connections and ensure the machine is properly connected to the tractor. - Page 9 Upper connector Depth adjustment Bolt Setting bar Three-point hitch tension rod Figure 2. MGP subsoiler three-point hitch components WARNING! Coupling of the tractor with the subsoiler must be carried out carefully, at the tractor’s minimum speed! When hooking up the machine, make sure there are no bystanders too close. Before leaving for the field via a public road, a warning sign must be attached to the subsoiler or the co-operating machine, for transport on public roads.
-
Page 10: Faults And Abnormalities In The Subsoiler Operation
The subsoiler’s proper operating depth is determined by adjusting the position of the bolts in the openings of the adjustable support wheels (Figure 1). The depth relative to the co- operating machine is determined by means of the depth adjustment bolts by inserting them into the appropriate opening below the depth-setting bar (Figure 2). -
Page 11: Transport
WARNING! Store the subsoiler on a level, horizontal surface, preferably indoor or in a roofed area protected from unauthorized access by outsiders or animals. 8. Transport WARNING! Particular caution should be exercised when transporting the subsoiler. It is forbidden to travel on public roads without an appropriate additional warning sign. Prior to travel on a public road, a portable warning light device and a distinctive sign for slow-moving vehicles should be fitted to the ends of the subsoiler’s frame. -
Page 12: Technical Characteristics
11. Technical characteristics Table 2. Technical data for the MGP subsoiler Type Working width Secured by Number of Min. power Weight tines [KM] [kg] [pcs] MGP 6 3000 3.00 Cotter pin... - Page 13 12. Spare parts list Figure 2 Subsoiler MGP 6 3000 - spare parts...
-
Page 14: List Of Spare Parts
Table 3. List of spare parts for the MGP subsoiler Item Name MGP 6 3000 Frame Double sided coulter Right-hand tine Left-hand tine Right-hand moldboard Left-hand moldboard Support leg Frame with front axle (optional) Support wheel (optional) 10 Turnbuckle 11 Handle of the arm with front axle 12 Band with three-point hitch hook 13 Height adjuster 14 Tine holder... -
Page 15: General Rules Governing The Warranty Procedure
4 General rules governing the warranty procedure • Only original spare parts intended for Mandam machinery provide long-lasting and efficient operation. Parts for all Mandam machinery are available through our dealer network or directly from the manufacturer. • The warranty covers defects and damage attributable to the Manufacturer as a result of material defect, inappropriate treatment or assembly. -
Page 16: Warranty Card
P.P.H. MANDAM Sp. z o.o. 44-100 Gliwice ul.Toruńska 2 e-mail mandam@mandam.com.pl Tel.: 032 232 26 60 Fax: 032 232 58 85 NIP: 648 000 16 74 REGON: P – 008173131 WARRANTY CARD ORKAN VARIO plough Type ........Serial number ........
