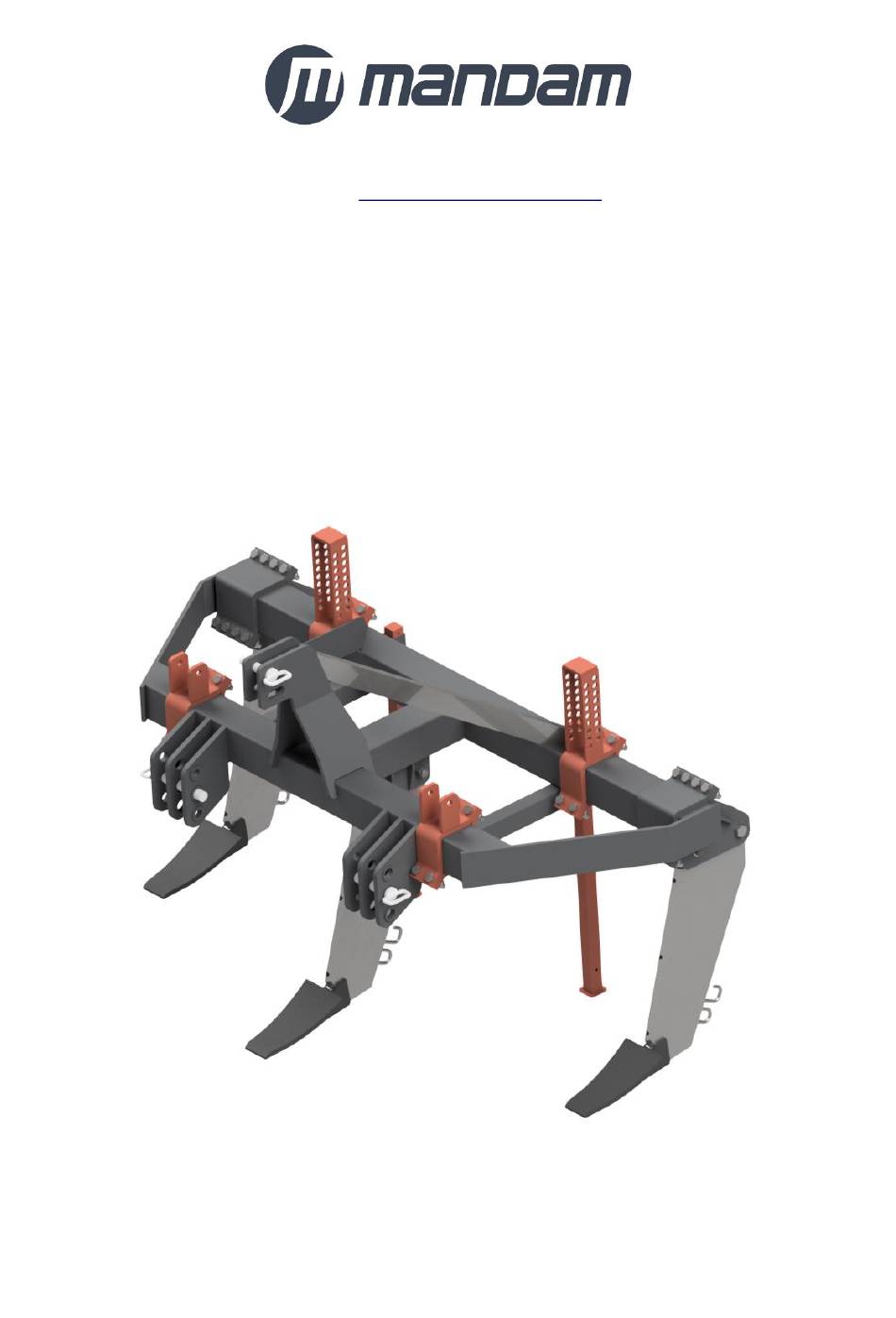

- Page 1 MANDAM Sp. z o.o. 44-100 Gliwice ul. Toruńska 14 e-mail mandam@mandam.com.pl Tel.: 032 232 26 60 Fax: 032 232 58 85 NIP No.: 648 000 16 74 REGON No.: P – 008173131 OPERATING MANUAL MGX SUBSOILER Edition I Gliwice 2023...
- Page 2 Pursuant to the Regulation of the Minister of Economy of 21 October 2008 (Journal of Laws No. 199, item 1228) and the EU Directive No. 2006/42/EC of 17 May 2006, MANDAM Sp. z o. o. ul. Toruńska 14 44-100 Gliwice...
-
Page 3: Table Of Contents
Table of contents Introduction ..................4 1.1 Safety signs ................5 1.2 Design of the MGX subsoiler ............7 Intended use ..................7 General safety rules ................8 3.1 Coupling and uncoupling from the tractor ........... 9 3.2 Tires ..................9 3.3 Safety related to transport on public roads ......... -
Page 4: Introduction
The warranty card is an integral part of the machine. Always quote the serial number when making inquiries about spare parts. Information on spare parts can be found • at: http://mandam.com.pl/parts/ • by phone +48 668 662 289 • E-mail: parts@mandam.com.pl... -
Page 5: Safety Signs
Misplaced and illegible signs and inscriptions should be replaced with new ones. Information on the acquisition of information and warning signs can be found by contacting the MANDAM spare parts department. - Page 6 Safety sign Safety sign meaning Location on the machine Keep a safe distance from The front part of the middle folding and movable parts frame near the side frames of the machine Do not reach into the crush The middle frame near the area if components may side frames move...
-
Page 7: Design Of The Mgx Subsoiler
Min. tractor Mass [kg] subsoiler width [m] [pcs] power [HP] MGX 2200 1.50 – 2.20 MGX 3000 1.80 – 2.75 2 Intended use The subsoiler is an agricultural machine designed for loosening and aerating soil at a depth of up to 60 cm in order to improve its physical and biological properties. -
Page 8: General Safety Rules
The manufacturer is not responsible for arbitrary changes in the construction of the subsoiler. During the warranty period, only MANDAM factory replacement parts should be used. -
Page 9: Coupling And Uncoupling From The Tractor
WARNING! Failure to comply with the above rules may pose a threat to the operator and bystanders as well as may lead to damage to the machine. The user is responsible for damages resulting from failure to comply with these rules. -
Page 10: Description Of The Residual Risk
30 cm. 3.4 Description of the residual risk MANDAM sp. z o. o. makes every effort to eliminate the risk of an accident. However, there is a residual risk that may result in an accident. The greatest danger occurs in case of: •... -
Page 11: Handling And Usage Information
• careful reading of the operating manual, • keeping a safe distance from dangerous zones, • prohibition on staying on the machine and in the machine operating zones when the tractor engine is running, • performing maintenance works in accordance with safety rules, •... - Page 12 Table 3. Range of operating tines spacing of the MGX subsoiler. Minimum working width Type of the subsoiler Maximum working width [mm] Number of tines [mm] MGX 2200 1500 2200 MGX 3000 (4z) 1800 2750 MGX 3000 (5z) 2200 2750 Fig.
-
Page 13: Handling And Usage Information
WARNING! Operating the subsoiler on excessively moist soil is unacceptable. Operating on stony soil with large stones is unacceptable! Optionally, it is possible to mount a weight with a chain behind the subsoiler’s tine (fig. 4), whose main task is to create a groove (drainage) at the operating depth of the machine, which ensures the circulation of water moving after rainfall. -
Page 14: Coupling The Subsoiler With The Tractor
a – distance between the center of gravity of the front-mounted device and the center of the axle, b – tractor wheel track, c – distance between the center of the rear axle and the center of the coupling pin of the rear unit, d –... -
Page 15: Maintenance And Lubrication
When attaching the MGX subsoiler to the tractor, perform the following actions: • switch the tractor’s hydraulic system to position regulation, • remove the lower coupling pins if the tractor’s three-point suspension system is not equipped with coupling hooks, • carefully reverse, hang the machine on the lower links, then secure, •... -
Page 16: Service
Table 4. Tightening torque values for screws and nuts. CAUTION! It is forbidden to work on a damaged machine caused by any event that resulted in cracking or deformation of the frame, roller or other machine assembly! 5 Service Due to the simplicity of its design and the materials used, the MGX subsoiler is distinguished by a very low failure rate. -
Page 17: Daily Service
5.1 Daily service • Each time after finishing work, the MGX subsoiler should be cleaned of soil, and then parts and assemblies should be inspected. When cleaning, remove soil and plant debris. • After the first 4 hours of operation, retighten all screws and then periodically check tightness. -
Page 18: Storage Of The Subsoiler
Replacement of operating elements Excessively worn operating elements make it difficult to penetrate the tools and cause an increase in operating resistance. Replacement of working elements should be carried out with the machine lowered to the ground, after switching off the tractor engine. To prevent the replaced elements from touching the ground, place durable pads (e.g. -
Page 19: Disassembly And Withdrawal
Disassembled metal parts must be scrapped. 9 Spare parts for the MGX subsoiler To find, price and order original spare parts for MANDAM machines, please visit our website at: www.mandam.com.pl, in the “parts” tab. On this website, we provide catalogs and spare parts cards in PDF format, containing current diagrams of parts for each machine, along with their numbers and prices.
