Summary of Contents for Mandam GAL-K

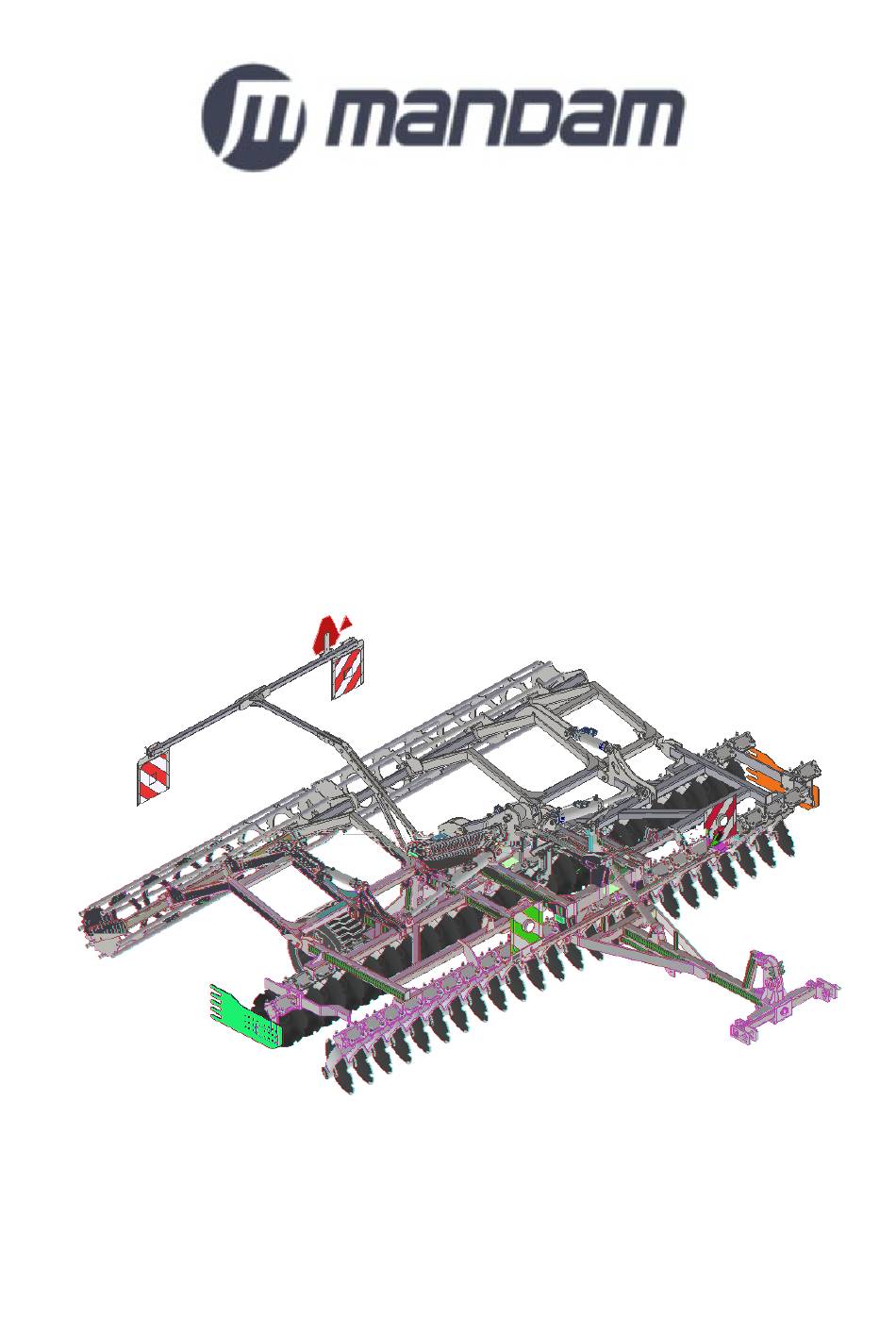

- Page 1 MANDAM Sp. z o.o. 44-100 Gliwice ul.Toruńska 14 e-mail mandam@mandam.com.pl Phone: 032 232 26 60 Fax: 032 232 58 85 TIN: 648 000 16 74 REGON (statistical No.): P – 008173131 OPERATION MANUAL Disc harrow GAL-K, GAL-K HD Revision V Gliwice 2023...
- Page 2 Directive of the European Union 2006/42/EC of 17 May 2006 MANDAM Sp. z o.o. ul. Toruńska 14 44 -100 Gliwice declares with full responsibility that the machine: DISC HARROW GAL-K, GAL-K HD type/model ………………………… ......... year of production: .......
-
Page 3: Table Of Contents
General information ........................8 2.1. Construction of the GAL-K disc harrow ................8 2.2. Intended use of the GAL-K and GAL-K HD disc harrows ..........10 General safety rules ........................11 3.1. Proper coupling and uncoupling with the tractor ..............12 3.2. - Page 4 5.2. Chassis suspension system ....................59 Replacement procedures ......................61 Storage of the disc harrow ......................63 Disassembly and disposal ......................63 Spare parts for the disc harrow GAL-K ..................63...
-
Page 5: Introduction
Notes that are important for safety reasons are marked with the sign: Machine identification The identification data of the GAL-K harrow can be found on the rating plate on the support frame, which contains the CE mark, basic information about the manufacturer and the machine: The guarantee on the harrow is valid for 12 months from the date of sale. -
Page 6: Safety Signs
1.1. Safety signs NOTE! When using the machine, special care must be taken in areas marked with special information and warning signs (yellow stickers). The signs and inscriptions on the machine are detailed below. Safety signs and inscriptions should be protected against loss and loss of legibility. Signs and inscriptions that are lost or illegible should be replaced with new ones. - Page 7 Safety signs Meaning of the safety sign Miejsce umieszczenia na maszynie Do not reach into the crushing area if parts may Mid frame near side frames move Pressurised liquid jet - Cylinders bodily harm Upper part of the drawbar (upper fastener bolt) Rear frame part: rigid frame (adjacent •...
-
Page 8: General Information
2 General information 2.1. Construction of the GAL-K disc harrow Right shaft Left shaft Chassis Shaft clamp Main frame Drawbar Shafts hydraulic control Turnbuckle Arms set Foot (option) Wheel 480/45-17” Front disc row Rear disc row Side screen Fig.1 Disc harrow GAL-K. - Page 9 Right shaft Left shaft Chassis Shaft clamp Main frame Cylinders Drawbar Shafts hydraulic control Turnbuckle Arms set Foot (option) Wheel 480/45-17” Front disc row Rear disc row Side screen Fig.1 Disc harrow GAL-K HD.
-
Page 10: Intended Use Of The Gal-K And Gal-K Hd Disc Harrows
In addition, the harrow can also be fitted with a coupling to the seed drill, known as a hydropack. The GAL-K units are equipped with their own chassis with a braked axle. A pneumatic system is used for this purpose. -
Page 11: General Safety Rules
The manufacturer is not responsible for arbitrary changes to the harrow design. During the warranty period, only factory-made "MANDAM" parts must be used. The disc harrow should be operated with all precautions in mind, in particular: •... -
Page 12: Proper Coupling And Uncoupling With The Tractor
• driving and parking the unit next to a slope with unstable ground may cause a landslide. machinery must be stored in such a way as to prevent injury to people and animals. 3.1. Proper coupling and uncoupling with the tractor The attachment of the machine to the tractor must be made as specified, •... -
Page 13: Description Of Residual Risk
3.5. Description of residual risk MANDAM Sp. z o.o. makes every effort to eliminate the risk of accidents. There is a residual risk that could result in an unfortunate accident. The greatest danger occurs when: using the machine for purposes other than those described in the instructions, •... -
Page 14: Information On Handling And Use
4 Information on handling and use Before starting the machine for the first time: refer to the operating instructions, • make sure the machine is in good working order, • check the condition of the hydraulic and pneumatic systems (replace components •... -
Page 15: Preparing The Disc Harrow
b – tractor wheel track, c - distance between the centre of the rear axle and the centre of the hitch pin of the rear device, d - distance of the centre of gravity of the machine from the towing pins of the tractor x –... -
Page 16: Coupling The Harrow To The Tractor
Tubular shaft Arms Shaft clamp Fig. 3 Connection of the arms with shaft bracket. Before starting the work, check the condition of the disc harrow, especially the condition of the working parts and bolted connections. NOTE! The correct procedure for mounting the shafts in the arm holders requires that the bolts be evenly tightened diagonally, so that the entire plane of the arm holders is adjacent to the plane of the shaft clamp profile. -
Page 17: Coupling The Seed Drill To The Disc Harrow
- disconnect the suspension axle from the unit and place it on the lower links of the tractor, - back the tractor up to a distance that allows the suspension axle to be connected to the frame plates and the tractor's top link to the harrow hanger, - secure the suspension axle in the frame plates with clamps and pins, - connect the top link on the tractor. -
Page 18: Opening Sequence For Machines Without Chassis
Hook Cylinder Fig. 5 Main frame with automatic wing locking mechanism. 4.4.2 Opening sequence for machines without chassis Before unfolding the folding wings of the machine, it is important to familiarise yourself with the opening sequence that allows you to do this correctly. 1. - Page 19 Fig. 6 Machine opening sequence: 1- lift the machine up to its maximum, 2- fold the machine wings into the "closed" position. 3. Once you have ensured that the hook of the hydraulic wing lock mechanism will allow the machine wings to be unlocked, you can proceed to open them fully (fig.7).
-
Page 20: Setting Up Work Units
4. When opening the machine's wing arms, ensure that the ends of the arms are at a sufficient height to prevent them from catching the ground (fig. 9). Fig. 8 Machine opening sequence: opening the machine with special attention to the height of the arm ends from the ground. - Page 21 On the GAL disc harrow, the position of the individual working units must be preadjusted before starting work in the field. It is also necessary to level the machine longitudinally with the tractor's top link or drawbar turnbuckle and transversely with the right lower link hanger.
- Page 22 Incorrect machine settings: Fig. 11 Incorrect machine settings. Turning at field ends is only permitted with the machine raised on the chassis. Fig. 12 Turning the machine correctly.
- Page 23 Turning with the machine buried in the spoil in or turning on shafts is not permitted: Fig. 13 Turning the machine incorrectly. When working with the machine, it is also advisable to use an additional weight on the front of the tractor to enable more stable and comfortable working. Levelling the machine.
- Page 24 Machine levelled incorrectly:...
- Page 25 Levelling: If you notice an abnormality in the machine's level, screw or unscrew the end of the cylinder. Firstly, the lock nut is loosened with a size "50" spanner and then the cylinder end is adjusted with a size "41" spanner by placing the spanner on the end of the cylinder piston rod.
- Page 26 Misalignment of shafts:...
- Page 27 Irregularities during operation - pulling off the machine Machine operating correctly: Pulling the machine to the right side: If there is a situation of the machine pulling to the right side, the level of the machine should be checked first. If the machine is not levelled correctly, this can occur when the left side is horizontal and the right side is facing upwards, the cylinder on the right side should be rotated.
- Page 28 Left side Right side Pulling the machine to the left side: If there is a situation of the machine pulling to the left side, the level of the machine should be checked first. If the machine is not levelled correctly, this can occur when the right side is horizontal and the left side is facing upwards, the cylinder on the left side should be rotated.
-
Page 29: Working Depth Of The Gal-K Disc Harrow
4.4.4 Working depth of the GAL-K disc harrow The working depth is determined by the position of the shaft, whose arms are adjustable by cylinders. To maintain a constant shaft position (working depth) during operation, clamps are fitted to the cylinder piston rods (fig. - Page 30 Once the required working depth has been established, the appropriate number of clamps must be taken from the holder on the shaft arm and then fitted to the piston rod of the cylinders. This ensures a constant working depth during operation. The number of clamps on both cylinders must always be equal.
-
Page 31: Opening Sequence Of The Machine On The Chassis
The working depth of the machine is set using pawls located at the piston rod of the cylinder. As more pawls are folded, the operation of the machine becomes shallower. In a configuration where none of the pawls are installed, the machine is in its greatest working depth configuration. - Page 32 Fig. 19 Location of pins preventing the machine wings from unfolding. NOTE! Remember to secure the machine wings against self-opening by means of safety pins each time the unit is folded. 3. Using the hydraulics, spread the arms of the machine horizontally until they are fully extended (fig.
- Page 33 Back view Side view Fig. 20 Unfolding the wings of the machine.
- Page 34 Back view Side view Fig. 21 Unfolding the wings of the machine to horizontal position. 4. The next step is to hydraulically unfold the open arms of the machine to a horizontal position (fig. 21, 22).
- Page 35 Back view Side view Fig. 22 View of the machine after unfolding. 5. Once the machine has been unfolded on the chassis, the alignment of the working shafts with respect to the machine must be carried out using hydraulic cylinders. The entire process is carried out using hydraulic cylinders that determine the height of the shafts and their angle of attack relative to the ground, and turnbuckles fitted to the machine's wing drawbars (fig.
-
Page 36: Adjusting The Working Depth And Setting The Correct Position For Machines With Chassis
4.4.6 Adjusting the working depth and setting the correct position for machines with chassis Once the machine has been unfolded, proceed with setting the working depth and levelling. First of all, the appropriate working depth must be determined using the hydraulic cylinders of the three-point linkage on which the disc harrows are suspended (item 1, fig. - Page 37 Fig. 25 Placement of turnbuckle on drawbar assembly; 1- turnbuckle. Levelling the machine is also possible thanks to the adjustment screws at the rear of the chassis. The vertical bolts (item 1, fig. 26) adjust the position of the disc harrow when the machine is folded.
- Page 38 fitted to the cylinder piston rods. The maximum permissible working depth is 12cm for discs Ø560mm. Once the required working depth has been established, the appropriate number of clamps must be taken from the holder on the shaft arm and then fitted to the piston rod of the cylinders.
- Page 39 Cylinder Fig. 29 The correct way to lift the machine when carrying out a turning manoeuvre. For machines with chassis, an option is available to purchase a valve block with electric control, which allows all the hydraulic sections (except the section responsible for folding/unfolding the machine wings) to be connected directly to the joystick control panel, which allows more convenient control of the machine's hydraulics and requires only two, free pairs of hydraulic connections on the tractor for its connection (fig.
- Page 40 Cylinder UCJ769/80/45/40 Cylinder UCJ769/80/45/40 Cylinder UCJ184/80/50/230 Cylinder UCJ111/140/63/1015 Cylinder UCJ769/80/45/40 Cylinder UCJ697/80/45/145 Cylinder UCJ125/80/50/230 Cylinder UCJ769/80/45/40 Fig. 31 Diagram of the machine's hydraulic system with valve block fitted.
-
Page 41: Braking System
4.5. Braking system Chassis-mounted machines can be equipped with three types of braking systems - single-circuit hydraulic brake, dual-circuit hydraulic brake or air brake (standard on 8.0m; 10.0m; 12.0m machines), a diagram of which, along with the principle of operation, is shown below. 4.5.1 Air brake Fig.32 Diagram of an air brake: 1 - spiral hose coupling (red), 2 - spiral hose coupling (yellow), 3 - 40L air... -
Page 42: Hydraulic Single-Circuit Brake
4.5.2 Hydraulic single-circuit brake Valve settings: B-C brake released A-B brake locked Drawbar assembly Chassis assembly Fig. 33 Diagram of a single-circuit hydraulic brake with the most important operating components: 1 - 301349/P2 cylinder, 2 - hydraulic hose, 3 - 0.75l 100 bar(SIAP WA) accumulator, 4 - SAFIM quick-release coupling, 5 - accumulator bracket, 6 - safety valve actuating chain, 7 - brake beam, 8 - brake cylinder holder. -
Page 43: Hydraulic Double-Circuit Brake
4.5.3 Hydraulic double-circuit brake Side view Carriage assembly Fig. 34 Diagram of a double-circuit hydraulic brake with the most important operating components: 1 - combination brake cylinder, 2 - valve with pump reservoir, 3 - DLC- double-circuit coupling with cable, 4-5 - hydraulic line, 6 - hydraulic cylinder mounting plate, 20 - beam bracket, 23 - elbow connector, 24 - hydraulic line. - Page 44 Fig. 35 Overview of the two-circuit hydraulic braking system. Fig. 36 Valve with marked components. Figures 7 and 8 show the respective valve plans with the designations of the most important wires and connectors, where they denote in sequence: • CL – control line (from coupling joint), •...
- Page 45 Fig. 37 View showing the couplings from the tractor side. • CT – output port (of brake cylinders or load sensing valve, if fitted), • ST – output port (spring brake sections of the combined SAHR actuators - SL port), •...
- Page 46 Fig. 39 Marking the point of connection of the metal cable to its dedicated housing. If the braking system contains an automatic load detection valve of type 206104/xx, connect the SL-A port of the automatic brake valve to the SL port of the load detection valve.
- Page 47 trailer is disconnected from the tractor, the automatic brake valve activates the automatic emergency braking function. Fig. 41 Standard position of the activation spool in the driving position. Mode 2 – Emergency mode: When the trailer is disconnected from the tractor, an automatic brake valve connects the spring brake section of the SAHR cylinders to the reservoir.
- Page 48 Fig. 42 Dummy connection port for the remaining coupling joints. Mode 3 - Deactivation of automatic brake function: To deactivate the automatic brake function (if towing a trailer by a non-two-wheel tractor or other type of vehicle): • Press the activation spool (as in the image on the right) until it is fully extended.
- Page 49 The activation spool automatically returns to its normal function position every time the pressure in the secondary line (SL) increases to its normal value. The valve's normal function mode is engaged each time the operator connects the two- line joint, starts the tractor engine and releases the parking brake. In this situation, all emergency functions are switched on.
-
Page 50: Hydraulic System Quick Couplings
Fig. 44 Location of tank cap, decompression button and hand pump. Check the oil level in the tank regularly: the level must always be between the „max” and „min” positions on the oil level indicator. If the oil level is below the minimum, follow one of the previously described procedures to refill the tank. -
Page 51: Rules For Transporting The Harrow On Public Roads And Lighting
Once the plates have been fixed, the electrical wires of the warning-light device should be connected to the socket of the tractor's electrical installation. For the GAL-K 4.0H; 5.0H and 6.0H machines, the manufacturer does not supply warning signs as standard equipment. Warning signs for these units are available commercially. -
Page 52: Maintenance And Lubrication
Front lighting assembly Rear lighting assembly Fig. 46 Front and rear lighting assemblies and their location Before transporting, the machine should be cleaned from the soil and the operation of the lights checked. After lifting the machine, check the clearance under the lowest working elements, which should be at least 30 cm. -
Page 53: Screw Tightening Torque
• When replacing worn components, use thread glue, original bolts and nuts. • Always ensure that screw connections are properly tightened. NOTE! Periodic lubrication is a guarantee of the durability of the machine. The service life and efficiency of the machine depend to a large extent on regular lubrication. -
Page 54: Operation Of The Gal-K Disc Harrow
NOTE! It is forbidden to work on a damaged machine caused by any event resulting in a broken, or deformed frame, shaft or other assembly of the machine! 5 Operation of the GAL-K disc harrow Everyday service Each time after work, the harrow should be thoroughly cleaned of soil and plant debris and the condition of the bolt and pin connections and the condition of the working elements and other parts should be inspected. - Page 55 However, if this is not possible, the condition of the protection should be checked from time to time and, if necessary, the rain-washed grease should be replenished. Operation of the GAL-K chassis Regular control of wheel pressure. If there is a significant loss of air from the tyres, check the air valve for leaks.
- Page 56 5 years. Appearance of oil on the piston rod of the hydraulic cylinder - check the nature of the leak. When the piston rod is fully extended, check the sealing points. Minor leaks characterised by wetting of the piston rod with an "oil film" are permissible (defective sealing ring).
-
Page 57: Operation Of The Vibration Compensation System Of The Chassis Suspension System
5.1. Operation of the vibration compensation system of the chassis suspension system On the GAL-K and GAL-K HD disc harrows, a vibration compensation system can be fitted as an option. The vibration compensation system consists of: double-acting cylinder, hydro-pneumatic accumulator, pressure gauge, shut-off valve, hose assembly and fittings. -
Page 58: Operation
NOTE! Partially assembled components do not provide a connection that enables operation. Before commissioning, check all connections and tighten them! Fig. 50. Hydraulic diagram of the vibration compensation system. 5.1.2 Operation The vibration compensation system is switched on and off using a ball valve (No. 9, fig. - Page 59 5.2. Chassis suspension system A suspension system for the chassis is fitted as standard on the GAL-K HD and optional on the GAL-K disc harrow. The vibration compensation system consists of: cylinder system, hydro-pneumatic accumulator, pressure gauge, shut-off valve, hose assembly and fittings.
- Page 60 Side view: Fig. 52. Diagram of the chassis suspension system. The system is assembled on the centre frame of the machine and comprises the following components: 1. Hydro-accumulator, 2. Clamp, 3. Ball valve, 4. Adapter M18 th. W-w, 5. Pressure gauge, 6. Adapter M18 th. W-w, 7. Tee, 8. Accumulator clamp bracket, 9.
- Page 61 Initial system start-up and operation • Lift the machine as far as possible on the chassis, only then fold it into the transport position. • The arm cylinders (hydraulic working depth) must be extended so that when the machine is lowered, the arms are not damaged by colliding with the chassis. •...
- Page 62 Use proper spanners and protective gloves during maintenance and repairs. Table 4. Causes and remedies for faults and malfunctions of the GAL-K disc harrow. Fault, malfunction Reason...
- Page 63 Parts are shipped directly to the address provided and payment is made on delivery. If you are not sure, please contact the Mandam spare parts department on the following telephone numbers : 32-232-2660 ext. 39 or 45 or on the mobile number +48 668-66-22-...
- Page 64 Original MANDAM spare parts are also available from all authorised MANDAM machine distributors.
