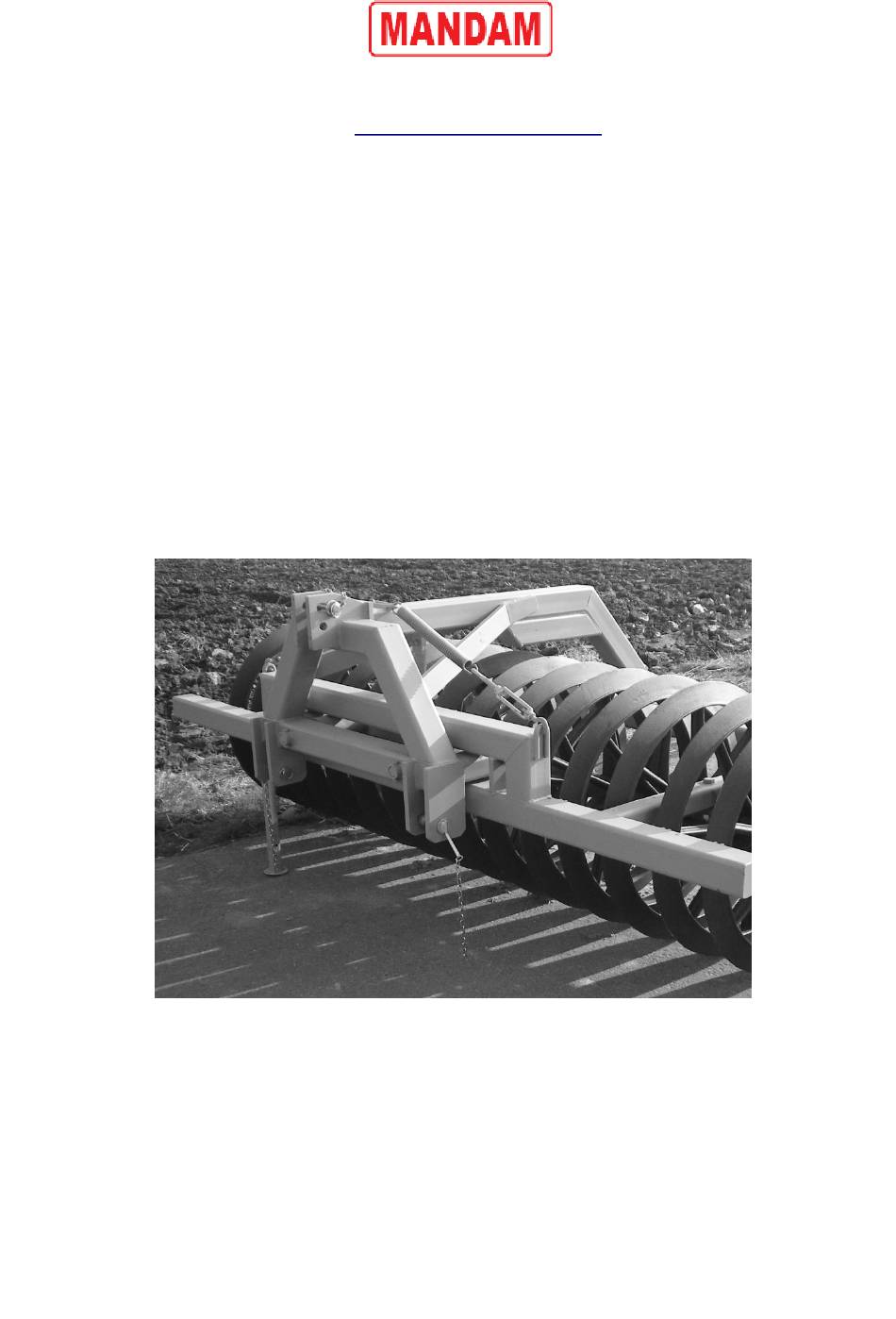

- Page 1 P.P.H. MANDAM Sp. z o.o. ul. Toruńska 2 44-100 Gliwice, Poland e-mail mandam@mandam.com.pl Tel.: 032 232 26 60 Fax: 032 232 58 85 NIP (VAT no.): 648 000 16 74 REGON (Registration no.): P – 008173131 INSTRUCTION MANUAL MWC/MWW CAMPBELL ROLLER 1.5.
- Page 2 Pursuant to the Ordinance of the Ministry of Economy of 21 October 2008 (Journal of Laws No. 199, item 1228) and the Directive of the European Union no. 2006/42/EC of 17 May 2006 Przedsiębiorstwo Produkcyjno-Handlowe „MANDAM” Sp. z o.o. ul. Toruńska 2 44-100 Gliwice, Poland...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ........................4 1.1 Safety signs and inscriptions ..................4 1.2 Roller design ......................7 2. Intended use of the roller ....................8 3. General safety information ....................8 3.1. Attaching the tractor ....................9 3.2. Hydraulic system ......................9 3.3. Transport on public roads ..................9 3.4. -
Page 4: Introduction
The warranty card constitutes an integral part of the machine. Whenever you request any information on spare parts, provide the serial number. For more information on spare parts: please visit our website at: http://mandam.com.pl/parts/ • or call us at +48 668 662 239 •... - Page 5 Table 1. Information and warning signs Safety sign Meaning of the safety sign Location on the machine Read the instruction Subsoiler frame adjacent to the manual prior to operating mounting of the upper fastener the machine. Danger of toe or foot Subsoiler frame adjacent to the crush mounting of the upper fastener...
- Page 6 Safety sign Meaning of the safety sign Location on the machine Do not reach into the crushing zone if the Mid frame adjacent to side frames elements can move Liquid jet under pressure – Cylinders injury Upper part of the drawbar (upper fastener bolt) Rear part of the frame: Fixing point for transport...
-
Page 7: Roller Design
1.2 Roller design Fig. 1 Design of the MWC/MWW roller 1- frame, 2- drawbar, 3 - roller working wheel, 4 - smoothing harrow (MWW model only), 5 - tooth of the smoothing harrow, 6 - chain, 7 - support foot, 8 - smoothing harrow control crank, 9 - side frame, 10 - mechanical lock, 11 - cylinder... -
Page 8: Intended Use Of The Roller
The manufacturer shall not be liable for any unauthorised alternation of the roller. Only genuine parts manufactured by MANDAM are allowed during the warranty period. The roller must be operated with all precautionary measures, in particular: before every start-up, check the roller and the tractor, make sure that their conditions •... -
Page 9: Attaching The Tractor
move forward, lift and lower the roller slowly and smoothly without sudden jerks, • making sure that nobody stays in the vicinity, obey traffic rules while travelling on public roads and attach transport equipment such • as lights as well as reflective and warning devices, do not stand on the machine or apply additional loads during operation and transport, •... -
Page 10: Description Of Residual Risk
3.4. Description of residual risk Mandam Sp. z o. o. act with due diligence to eliminate the risk of accidents. However, there is some residual risk that may result in an accident. The greatest risk is posed: if the machine is not used according to this manual, •... -
Page 11: General Operation Instructions
4. General operation instructions The Campbell roller with its hitch at the front comprises three main elements: Main frame of the roller – Working roller – Smoothing harrow (optional) – The main frame is a load-bearing element of the entire structure and the working roller. - Page 12 Fig. 2 Location of the smoothing harrow on the MWW roller: 1 - smoothing harrow, 2 - depth adjustment crank, 3 - frame Tyre pressure in the tractor wheels must comply with the values recommended by the manufacturer. The lower bars of the three-point linkage should be at the same height, spaced correspondingly to the spacing of the lower points of suspension.
- Page 13 centre, b – tractor wheelbase, c – distance between the rear axle centre and the centre point of the hitch bolt of the rear- mounted equipment, d – distance between the machine centre of gravity from the hitch bolts (roller without smoothing harrow –...
-
Page 14: Adjustments
CAUTION! Before folding and unfolding of the side wings, pull the string to release the roller locks 4.2. Adjustments The roller operates by gravity and requires no adjustments of its operation. The smoothing harrow can be optionally adjusted in terms of working depth. For this purpose, the crank mounted on the harrow arm in front of the roller in working position is used (Fig. - Page 15 Inspect connection and sub-assemblies as well. Retighten loose screwed joints. Replace or refurbish any damaged or worn parts. Working elements of the smoothing harrow can be used until they are almost entirely • worn or their performance is inefficient. Use only genuine screws and nuts when replacing worn parts. •...
-
Page 16: Storage Of The Roller
Fig. 4 Diagram of the hydraulic system of the MWC/MWW roller: 1- cylinder, 2- quick- connector, 3-T-connector, 4- flange, 5- copper washer, 6- hydraulic line 1.2 m, 7- hydraulic line1.0 m, 8- hydraulic line 2.2 m Storage of the roller When the work season is finished, the parts and the sub-units have to be inspected. -
Page 17: Transporting The Roller
6. Transporting the roller For transporting the roller, a three-point linkage on the tractor (front or rear-mounted) is used. CAUTION! Travelling on public road with a roller the length and height of which is over 3.0 m and 4.0 m respectively is forbidden due to its excessive travel width. -
Page 18: Disassembly And Withdrawal From Service
Table 3 Transportation dimensions of the MWC/MWW rollers Type Wheel diameter [mm] H [m] B [m] 1.65 1.25 1.65 MWC/MWW 1.5 1.65 1.25 MWC/MWW 2.5 1.25 MWC/MWW 3.0 1.95 MWC/MWW 4.0 H 2.75 MWC/MWW 6.0 H While travelling, tractor must be driven as close to the right side of the road as possible. -
Page 19: Technical Description
8. Technical description Table 3 Technical data of the MWC roller Number of Wheel Wheel Working Min. power Weight Type wheels diameter edge angle width [m] demand [HP] [kg] [º] [pcs] [mm] MWC 1.5 1000 1200 MWC 2.5 1350 1182 MWC 3.0 1450 1390... - Page 20 Table 4 Technical data of the MWW roller Wheel Number Number of Wheel Working Min. power Weight Type edge of teeth wheels diameter width [m] demand [HP] [kg] angle [º] [pcs] [pcs] [mm] MWC 1.5 1112 1330 MWC 2.5 1480 1075 1360 MWC 3.0...
-
Page 21: General Warranty Terms
GENERAL WARRANTY TERMS • Only genuine spare parts for the machines manufactured by Mandam can ensure long-lasting and efficient operation. The parts for all machines manufactured by Mandam can be purchased in our dealer network or directly from the manufacturer. -
Page 22: Warranty Card
P.P.H. MANDAM Sp. z o.o. ul. Toruńska 2 44-100 Gliwice, Poland e-mail mandam@mandam.com.pl Tel.: 032 232 26 60 Fax: 032 232 58 85 NIP (VAT no.): 648 000 16 74 REGON (Registration no.): P – 008173131 WARRANTY CARD OF THE CAMPBELL ROLLER with a hitch for front-mounting Type: ........
