Mandam MCH Series Instruction Manual

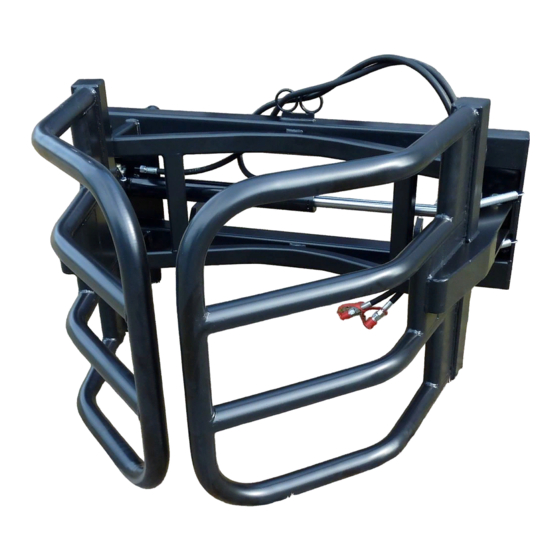

Bale gripper
Hide thumbs

Advertisement

Table of Contents

P.P.H.
Sp. z o.o.
ul. Toruńska 2
44-100 Gliwice, Poland
e-mail: mandam@mandam.com.pl www.mandam.com.pl
Tel.: 032/ 232 26 60
Fax: 032/ 232 58 85
NIP (VAT no.): 648 000 16 74 REGON (Registration no.): P – 008173131
INSTRUCTION MANUAL
BALE GRIPPER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCH Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mandam MCH Series

Summary of Contents for Mandam MCH Series

  • Page 1 P.P.H. Sp. z o.o. ul. Toruńska 2 44-100 Gliwice, Poland e-mail: mandam@mandam.com.pl www.mandam.com.pl Tel.: 032/ 232 26 60 Fax: 032/ 232 58 85 NIP (VAT no.): 648 000 16 74 REGON (Registration no.): P – 008173131 INSTRUCTION MANUAL BALE GRIPPER...
  • Page 2 Pursuant to the Ordinance of the Ministry of Economy of 21 October 2008 (Journal of Laws No. 199, item 1228) and the Directive of the European Union no. 2006/42/EC of 17 May 2006, Przedsiębiorstwo Produkcyjno-Handlowe “MANDAM” Sp. z o.o. ul. Toruńska 2...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 INTRODUCTION ..........................4 2 INTENDED USE OF THE BALE GRIPPER ................... 5 3 GENERAL SAFETY INFORMATION .................... 5 4 GENERAL OPERATION INSTRUCTIONS ................... 6 5. GENERAL WARRANTY TERMS ....................8 6. WARRANTY CARD ........................9...

  • Page 4: Introduction

    BALE GRIPPER This instruction manual is an integral part of the product. Keep this manual for future reference. 1 INTRODUCTION Congratulations on your purchase of the bale gripper. This instruction manual contains the information on hazards that may occur during work with the bale gripper, technical data and the most important guidelines and recommendations to be known and applied to ensure a proper operation.

  • Page 5: Intended Use Of The Bale Gripper

    2 INTENDED USE OF THE BALE GRIPPER The gripper for round bales is used for grabbing, handling and loading straw bales. It allows bales to be arranged or stacked. The gripper for round bales may be adjusted to various bale sizes with the maximum diameter of 1.60 m. Standard accessories supplied with the gripper include an EURO type hook and two lines for making a direct connection to the hydraulic system on the tractor.

  • Page 6: General Operation Instructions

    4 GENERAL OPERATION INSTRUCTIONS Fig. 1 Bale gripper Bale gripper Item Name Main frame Clamping arms Cylinder Hydraulic lines Quick-connectors Table 1 The main load bearing element of the entire machine is the gripper frame designed as a welded structure. The frame features attached working arms.
  • Page 7 4.1. ADJUSTMENTS OF THE BALE GRIPPER The bale gripper is usually supplied for sale in a ready-to-operate condition. However, due to limitations of transport means used to deliver the machine to the point of sale, the machine may be sometimes partially disassembled, i.e. with the clamping arms disconnected from the main frame.

  • Page 8: General Warranty Terms

    5. GENERAL WARRANTY TERMS  Only genuine spare parts for the machines manufactured by Mandam can ensure long-lasting and efficient operation. The parts for all machines manufactured by Mandam can be purchased in our dealer network or directly from the manufacturer.

  • Page 9: Warranty Card

    P.P.H. Sp. z o.o. ul.Toruńska 2 44-100 Gliwice, Poland e-mail: mandam@mandam.com.pl www.mandam.com.pl Tel. 032/ 232 26 60 Fax 032/ 232 58 85 NIP (VAT no.): 648 000 16 74 REGON (Registration no.): P – 008173131 WARRANTY CARD BALE GRIPPER Type: .........
