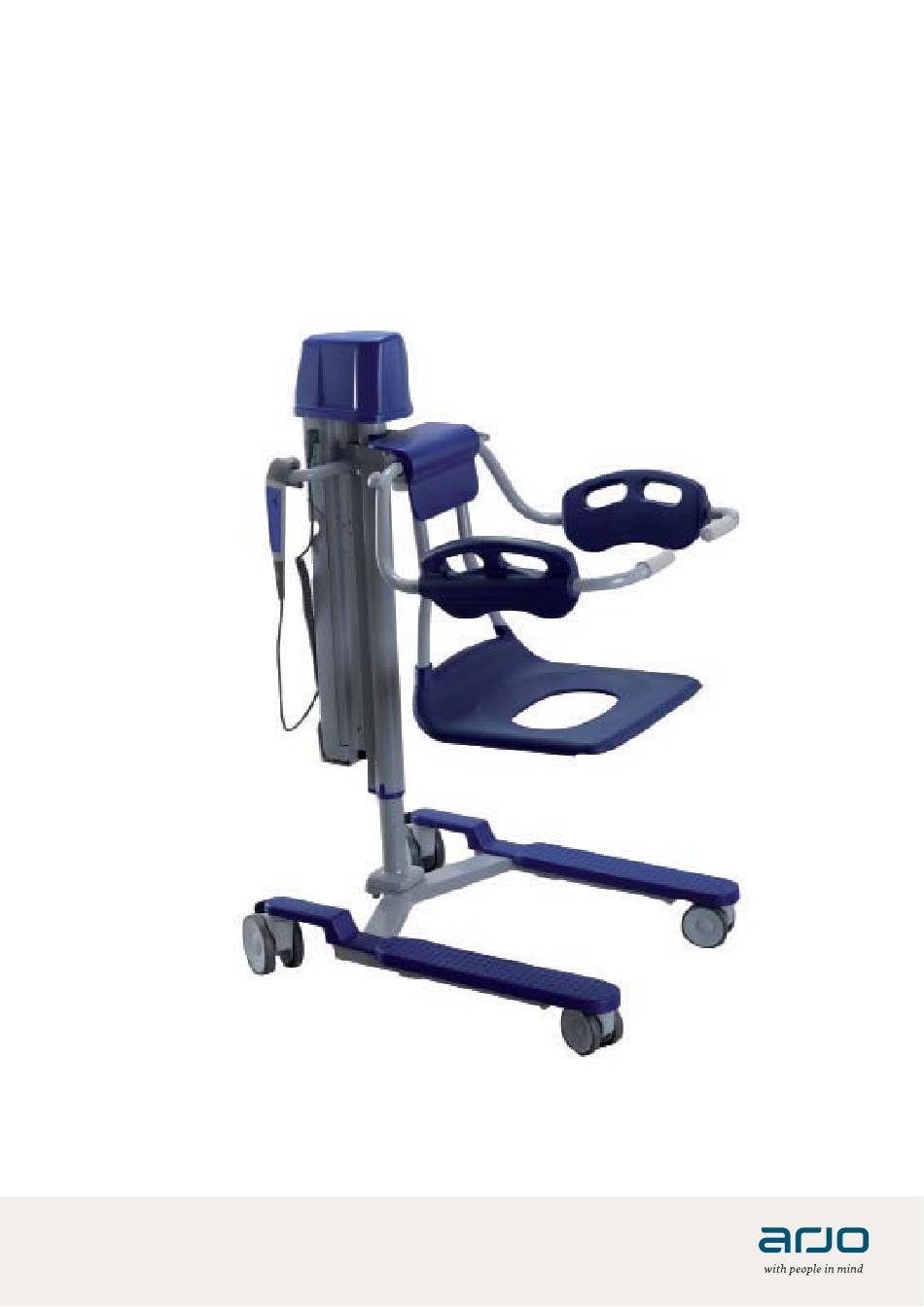

INSTRUCTIONS FOR USE
Calypso
04.CD.03_17EN • 06/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Calypso and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjo Calypso

Summary of Contents for Arjo Calypso

  • Page 1 INSTRUCTIONS FOR USE Calypso 04.CD.03_17EN • 06/2019...
  • Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2019. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.

  • Page 3: Table Of Contents

    Contents Foreword ................... 4 Intended Use ................5 Safety Instructions ..............6 Preparations ................7 Parts Designation ..............8 Product Description/Functions ..........9 Manual Raising and Lowering ..........9 Electric Raising and Lowering ..........9 Hand Rest and Backrest ............9 Seat ..................

  • Page 4: Foreword

    Thank you for purchasing Arjo equipment. term safety, reliability and value of the product. Contact Your Calypso® lift and hygiene chair is part of a series your local Arjo representative for replacement parts. of quality products designed especially for hospitals, Your service representative stocks the parts you will nursing homes and other health care use.

  • Page 5: Intended Use

    The lifetime and service life are as stated providing that to assist with the bathing process. Calypso must be used the preventative maintenance are being carried out in by appropriately trained caregivers with adequate...

  • Page 6: Safety Instructions

    WARNING When the scale (accessory) is mounted on To avoid the device from tipping and the the Calypso lift and hygiene chair patient from falling, do not use the There could be a risk of getting jammed between the equipment on floor with recessed drains, scale base and the swivelling castors.

  • Page 7: Preparations

    Actions Before the First Use (4 steps) (9 steps) 1 Check that all parts of the Calypso lift and hygiene 1 Visually check the package for damage. If the chair are in place. Compare to page Part product is suspected to be damaged make a Designations in this IFU.

  • Page 8: Parts Designation

    Parts Designation CDB 60XX CDB 70XX 1 Two-part hygiene seat 12 Foot rest 2 Seat insert 13 Lowering button (Hydraulic) 14 Hand pump for raising (Hydraulic) 3 Transfer handles 4 Backrest 15 Backrest/Hand rest left 5 Knob for attachment of safety belt 16 Backrest/Hand rest right 6 Manoeuvring handle 17 Safety belts...

  • Page 9: Product Description/Functions

    Product Description/Functions Manual Raising and Lowering Fig. 1 • The Calypso lift and hygiene chair is raised by using the hand pump (A). Pump evenly, using the full range of movement. (See Fig. 1) • The Calypso lift and hygiene chair is lowered by pressing the lowering button (B).

  • Page 10: Seat Cushion

    (See Fig. 6) Fig. 7 Emergency Stop If, for any reason, the Calypso lift and hygiene chair does not respond to the control buttons, you can quickly stop the lift movement by pressing the button on the battery and disconnect it.

  • Page 11: Automatic Safety Stop

    Fig. 9 2 Check the Calypso lift and hygiene chair by pressing a blunt, thin object into the holes at the panel. (i.e. a pen). (See Fig. 9) CAUTION Do not use a sharp tipped object to press into the holes.
  • Page 12 (A) or the knob (B). (See Fig. 16) When the safety belt is not in use Attached the safety belt to both the transfer handle (A) and the knob (B) when the Calypso lift and hygiene chair is not in use. (See Fig. 16) CDB 60XX...

  • Page 13: Accessory Description

    Accessory Description Battery Charger Fig. 1 See Battery Charger IFU. (See Fig. 1) Scale (Optional) Fig. 2 See Foot scale IFU. (See Fig. 2) Bedpan and Bedpan Holder (Optional) Fig. 3 CDB 60XX A bedpan holder can be mounted under the seat. Assemble.

  • Page 14: Transfer The Patient

    1 Apply the wheel brakes on the bed, if applicable. 2 Fold down the bed rail and turn the patient onto his/her side away from the Calypso lift and hygiene chair. (See Fig. 1) 3 Fold up the hand rest and backrest. Position the seat over the bed as close to the patient as possible and so that the patient will be sitting on the back part of the seat, when lifted.
  • Page 15 To avoid injury, make sure that the patient is not left unattended at any time. 16 Lower the Calypso lift and hygiene chair to a height in which the patient can put the feet on the foot rests. 17 The patient should keep his/her hands on the hand rest.

  • Page 16: To Bed

    1 Apply the wheel brakes on the bed, if applicable. 2 Fold down the bed rail. 3 If the Calypso lift and hygiene chair comes from a bath: place a towel on the bed to avoid making the bed wet.

  • Page 17: From Wheelchair

    3 Position the Calypso lift and hygiene chair right beside the wheelchair. 4 Adjust the Calypso lift and hygiene chair so its seat is at the same level or slightly higher than the wheelchair seat. If the wheelchair design allows it, the seat of the Calypso lift and hygiene chair can slightly overlap the wheelchair seat.

  • Page 18: To Wheelchair

    5 Position the Calypso lift and hygiene chair right beside the wheelchair. 6 Adjust the Calypso lift and hygiene chair so its seat is at the same level or slightly higher than the wheelchair seat. If the wheelchair design allows it: the seat of the Calypso lift and hygiene chair can slightly overlap the wheelchair seat.

  • Page 19: To Toilet

    Calypso lift and hygiene chair. (See Fig. 1) 2 Place the Calypso lift and hygiene chair right over the toilet seat. Lower the Calypso lift and hygiene chair seat and apply the brakes.

  • Page 20: Bath The Patient

    Fig. 2 Place the Calypso lift and hygiene chair in right angle close to the legs of the bathtub. Raise the Calypso lift and hygiene chair to clear the edge of the bathtub and move the patient in over the bathtub.
  • Page 21 Lower the Calypso lift and hygiene chair seat so that it rests against the bottom of the bathtub. (See Fig. 3) 6 Remove the safety belt over the chest.

  • Page 22: Shower The Patient

    1 Remove the cabinets splash guard. 2 Position the Calypso lift and hygiene chair in front of the cabinet with patient’s back towards the cabinets front. Fig. 2...
  • Page 23 Fig. 3 5 Loosen the safety belt and undress the patient then fasten the safety belt again. 6 Put in the splash guard. (See Fig. 3) WARNING To prevent scalding, always check the water temperature with your naked hand before directing the water on the patient.

  • Page 24: Cleaning And Disinfection Instructions

    Cleaning and Disinfection Instructions Accessories for Disinfecting the Only use Arjo Branded Disinfectants Calypso Lift and Hygiene Chair If you have any questions regarding disinfecting the equipment, or wish to order disinfectant, contact Arjo • Protective gloves Customer Service. •...
  • Page 25 1 Remove the seat insert, the two seat parts (only CDB6000 model), the backrest and the safety belt (if applicable) and place them at the bottom of the bathtub. (See Fig. 1) 2 Move the Calypso lift and hygiene chair over the bathtub and lower it down. 3 Clean: •...
  • Page 26 • the upper part of the Calypso lift and hygiene chair • all removed parts • all other areas of the Calypso lift and hygiene chair, such as chassis The cloth should occasionally be rinsed in running water during removal of disinfectant.

  • Page 27: Battery Instructions

    Battery Instructions Storage of Battery • The battery is delivered charged but we WARNING recommend you to recharge the battery when To avoid bodily injury, do NOT crush, received due to a slow self discharge. puncture, open, dismantle or otherwise •...

  • Page 28: Troubleshooting

    - remove the patient from the Calypso lift and hygiene chair and contact qualified personnel. The the Calypso lift and hygiene chair does not raise or WARNING descend when the hand control button is pressed.

  • Page 29: Care And Preventive Maintenance

    Care and Preventive Maintenance The Calypso lift and hygiene chair is subject to wear and tear, and the following actions must be performed when specified to ensure that the product remains within its original manufacturing specification. WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule.

  • Page 30: Disinfect

    IFU. Every day • Disinfect: The Calypso lift and hygiene chair has to be disinfected immediately after every use. Arjo disinfectants and shampoos should be used in recommended concentrations labelled on the disinfectant bottle. See section Cleaning and Disinfection Instructions on page 24.

  • Page 31: Check Hand Control And Cable

    Electric version. (See Fig. 6) • Perform functionality test: Test up/down motion by pressing up/down. Test emergency High/Low Yearly The Calypso lift and hygiene chair has to be serviced according to the table QUALIFIED PERSONNEL Action/Check on page 32.
  • Page 32 WARNING To avoid injury and/or unsafe product, the maintenance activities must be carried out at the correct frequency by qualified personnel using correct tools, parts and knowledge of procedure. Qualified personnel must have documented training in maintenance of this device. QUALIFIED PERSONNEL Action/Check Every YEAR Lubricate inner profile...

  • Page 33: Technical Specifications

    Maximum weight of lift (lift + scale) 47 kg (103 lbs) Maximum total weight of lift (lift + patient) 183 kg (403 lbs) Calypso lift and hygiene chair, model CDB 60XX, CDB 70XX (Electric) Safe Working Load (SWL) (Maximum patient weight) 136 kg (300 lbs)
  • Page 34 Transport, storage and operation (Applies to all Calypso lift and hygiene chair models except the chargers) Ambient temperature range -20 °C to +70 °C (-4 °F to +158 °F) Transport -20 °C to +70 °C (-4 °F to + 158 °F) Storage +10 °C to +40 °C (+50 °F to +104 °F) Operation...

  • Page 35: Overall Dimensions

    Overall Dimensions Calypso Classic/Pur Classic mm (inch) Stroke: maximum 595mm (23 3/8”) 552 (21 3/4”) 631 (24 7/8”) 616 (24 1/4”) 484 (19”) 479 (18 7/8”) Ø125 (4 7/8”) 459 (18 1/8”) 102 (4”) 620 (24 3/8”) 780 (30 3/4”) 641 (25 1/4”)
  • Page 36 Calypso Hydraulic mm (inch) 552 (21 3/4”) Stroke: maximum 500mm (19 5/8”) 282 (11 1/8”) 479 (18 7/8”) 130 (5 1/8”) 79 (3 1/8”) Ø 125 (4 7/8”) 780 (30 3/4”) 102 (4”) Ø 100 (3 7/8”) 641 (25 1/4”) 933 (36 3/4”)

  • Page 37: List Of Standards And Certificates

    List of Standards and Certificates STANDARD/CERTIFICATE DESCRIPTION EN/IEC 60601-1:2005 Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance AMD1:2012 ANSI/AAMI ES60601-1 (2005) Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance AMD 1 (2012) CAN/CSA-C22.2 No.

  • Page 38: Labels

    Labels Label explanation Separate electrical and electronic components for recycling in Attention Important user information for accordance with the European Label correct use. Directive 2012/19/EU (WEEE) Battery Label States safety and environmental information for the battery. A battery is the power source of this equipment.
  • Page 39 Model CDB 60XX, (Electrical) is shown Attention Label Data Label Identification Label Battery Label Data Label Applied Part Identification Label (Hydraulic Version) Driving direction 8418751A Attention label...

  • Page 40: Electromagnetic Compatibility

    (electromagnetic interference) from external sources. Some procedures can help reduce electromagnetic interferences: • Use only Arjo cables and spare parts to avoid increased emissions or decreased immunity which can compromise the correct functioning of the equipment. • Ensure that other devices in patient-monitoring and/or life-support areas comply to accepted emissions standards.
  • Page 41 Guidance and manufacturer’s declaration – electromagnetic immunity Electromagnetic Immunity test IEC 60601-1-2 test level Compliance level environment – guidance Electrostatic ±2kV, ±4kV, ±8kV, ±15kV air ±2kV, ±4kV, ±8kV, ±15kV air Floors should be wood, discharge (ESD) concrete or ceramic tile. If floors are covered with EN 61000-4-2 ±8kV contact...

  • Page 42: Parts And Accessories

    Parts and Accessories SEAL Foot scale Bedpan and bedpan holder Safety belt Battery and charger For disinfectant contact the Arjo local representative...
  • Page 43 AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX...
  • Page 44 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise...
