INSTRUCTIONS FOR USE

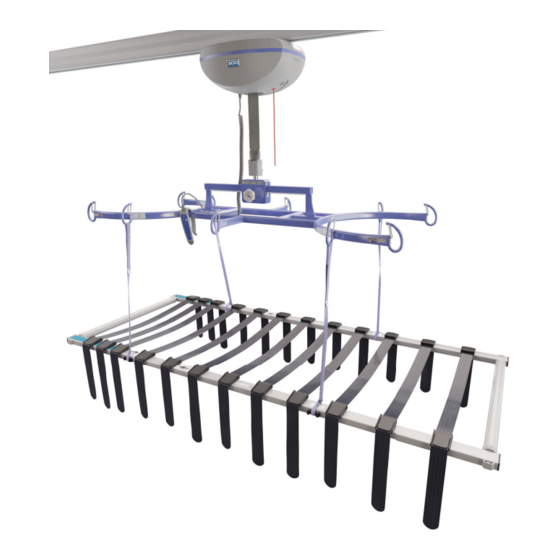

Arjo Strap Stretcher
001-14908-EN Rev 0 • 03/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Strap Stretcher and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjo Strap Stretcher

Summary of Contents for Arjo Strap Stretcher

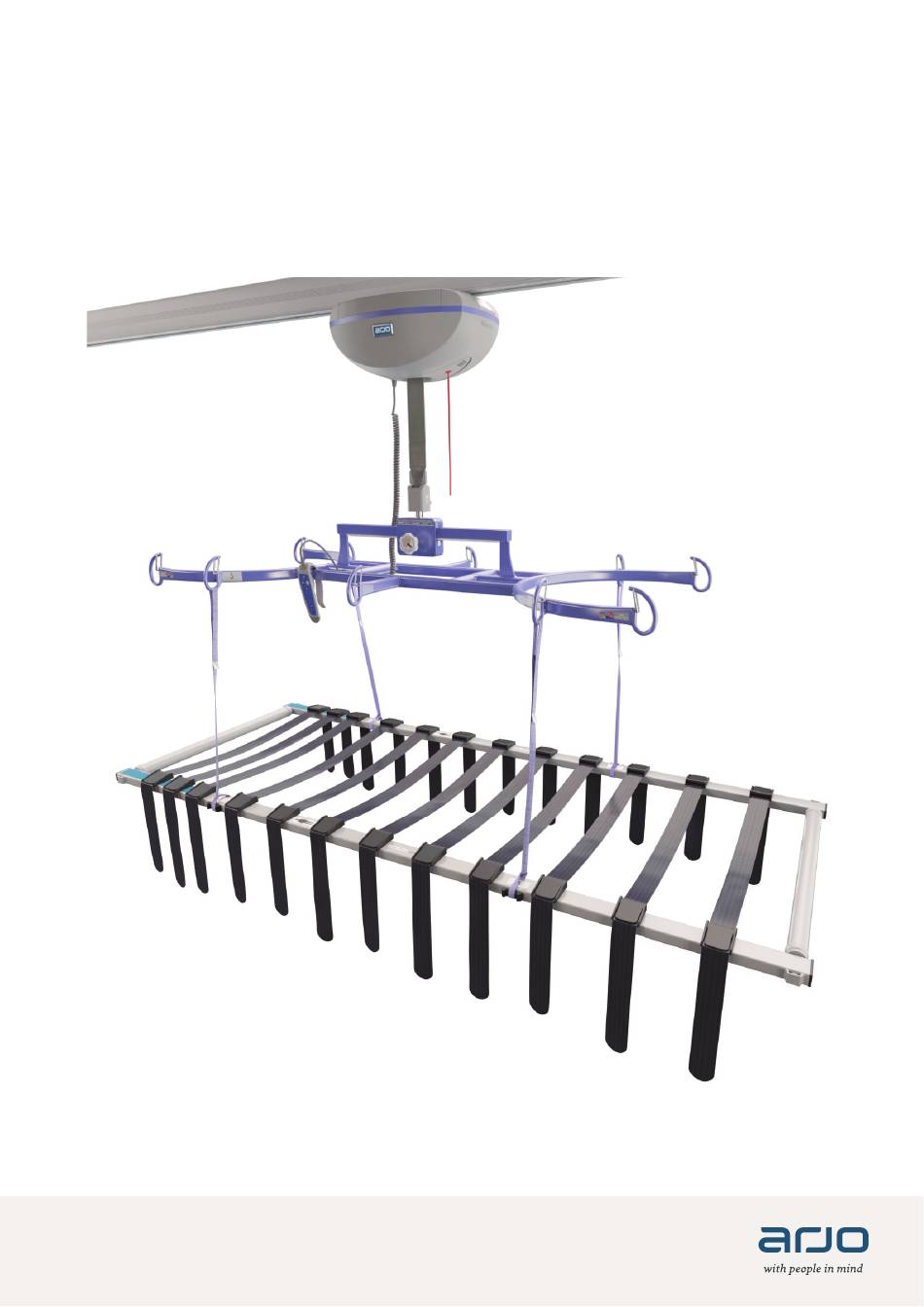

  • Page 1 INSTRUCTIONS FOR USE Arjo Strap Stretcher 001-14908-EN Rev 0 • 03/2020...
  • Page 2 © Arjo 2020. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the consent of Arjo.

  • Page 3: Table Of Contents

    Actions Before Every Use ........................9 Parts Designation ............................10 Arjo Strap Stretcher Assembly........................11 Dual-Loop Strap Installation on the Arjo Strap Stretcher Frame ............12 Raise the Patient ............................13 Adjusting Stretcher Frame ........................ 15 Removing a Strap While Raised ....................... 16 Lower the Patient............................

  • Page 4: Foreword

    Thank You for Purchasing Arjo Equipment. Your Arjo Strap Stretcher is part of a series of quality products designed especially for your health care facility. We are dedicated to serving your needs and providing the best products available along with training that will bring your staff maximum bene t from every Arjo product.
  • Page 5 Service and Support A service routine must be performed on the Arjo Strap Stretcher to make sure the safety and operating procedures of your product. See section “Care and Preventive Maintenance” on page 20. If you require further information, please contact Arjo for comprehensive support and service programs to maximize the long-term safety, reliability and value of the product.

  • Page 6: Intended Use

    IFU. The Arjo Strap Stretcher should only be used for the purpose speci ed in the IFU. Any other use is prohibited. Resident Assessment We recommend that facilities establish regular assessment routines.

  • Page 7: Operational Life

    The information in this IFU is important for your safety and must be read and understood to help prevent injuries.If there is anything in the manual that is confusing or hard to understand, call Arjo or their vendor (the telephone number appears on the last page of this manual).

  • Page 8: Safety Instructions

    To avoid entrapment, make sure to keep the To avoid patient injury, always inspect resident’s hair, arms and feet close to the the Arjo Strap Stretcher prior to each use body and use designated grab supports for any irregularities as per the “Care and during any movement.

  • Page 9: Preparations

    Preparations Actions Before First Use 1. Check that all parts of the product are supplied. Compare to section “Parts Designation” on page 10. If any part is missing or damaged - do NOT use this product. 2. Read the IFU. 3.

  • Page 10: Parts Designation

    Parts Designation Fig. 1 1. Patient Orientation label (2x) 8. Safe Working Load (SWL) label (2x) 2. Suspension Point label (4x) 9. Additional Cross Straps (12x) 3. End Tube (2x) 10. Strap Guide 4. Side Section (right hand) 11. Buckles (24x) 5.

  • Page 11: Arjo Strap Stretcher Assembly

    Arjo Strap Stretcher Assembly Attach the Arjo Strap Stretcher to Stretcher Frame NOTE The three closely positioned strap buckles should be positioned at the head end of the strap stretcher. They will be indicated by the head end of the tube. (11 steps)

  • Page 12: Dual-Loop Strap Installation On The Arjo Strap Stretcher Frame

    See Fig. 8. Fig. 8 Dual-Loop Strap Installation on the Arjo Strap Stretcher Frame (2 steps) 1. Before patient is lifted, all the Cross Straps must be locked into the buckles.

  • Page 13: Raise The Patient

    Raise the Patient (See respective IFUs for lifters) (6 steps) 1. Bring the lift to the patient. See Fig. 10. 2. Align the center of the frame approximately over the patient’s navel. See Fig. 11. 3. Lower the stetcher frame over the patient. See Fig.
  • Page 14 See Fig. 14. 6. Proceed to raise the patient. See Fig. 15. When Fig. 14 using a ceiling lift, always make sure that the Arjo Strap Stretcher is in an horizontal position. Refer to the section “Adjusting Stretcher Frame” on page 15.

  • Page 15: Adjusting Stretcher Frame

    Adjusting Stretcher Frame (Ceiling Lifts only) (3 steps) 1. To adjust the spreader bar frame, pull out/push in the knobs. See. Fig. 16. 2. Rotate knob. See Fig. 17. 3. Move the support bracket towards the heavier end (downward pointing) when stretcher frame is hanging horizontally.

  • Page 16: Removing A Strap While Raised

    Removing a Strap While Raised (2 steps) Individual patient support Cross Straps can be loosened and removed for access to any part of the patient while they are raised. WARNING To avoid injury, remove no more than one strap. Fig. 19 Raise and move the patient away from the bed.

  • Page 17: Lower The Patient

    2. Once lowered, remove the Dual-Loop Attachment Straps from both the stretcher frame Fig. 21 and the Arjo Strap Stretcher. See Fig. 22. 3. Raise the spreader bar. Move the oor lift away from the patient. See Fig. 23. Fig. 22 Fig.

  • Page 18: Remove The Arjo Strap Stretcher

    Once the Cross Straps are removed, proceed to remove all other Arjo Strap Stretcher parts, including the two End Tubes and Side Sections. See Fig. 25. 3. Store the Arjo Strap Stretcher in its bag in a safe and appropriate place. Fig. 24 NOTE The Arjo Strap Stretcher should be cleaned and disinfected between each patient use.

  • Page 19: Cleaning And Disinfection

    Cross Straps and Dual-Loop Straps (6 steps) (3 steps) 1. Detach the Arjo Strap Stretcher from the lift. 1. Detach the Arjo Strap Stretcher from the lift. 2. Rinse to remove any deposits or visible dirt from 2. Rinse to remove any deposits or visible dirt from the Strap Stretcher, if needed.

  • Page 20: Care And Preventive Maintenance

    Care and Preventive Maintenance The Arjo Strap Stretcher, as well as the Dual-Loop Attachment Straps are subject to wear and tear, and the following actions must be performed to make sure that the product remains within its original manufacturing speci cation.
  • Page 21 Strap Inspection WARNING If the strap inspection reveals any signs of irregularities, stop using the strap. The expected service life of the Dual-Loop Attachment Straps is two (2) years. If you have any doubts about the strap’s safety, replace it with a new one. Continual use of a damaged strap can seriously compromise the caregiver’s or patient’s safety.

  • Page 22: Technical Speci Cations

    Technical Speci cations GENERAL Total weight (with Cross Straps, 13.4 kg (28.7 lb) Dual-Loop Straps and Strap Guide) Lifting capacity 227 kg (500 lb) (SWL = Safe Working Load) Polyester straps Acetal buckles Material Steel frame Polycarbonate Strap Guide OPERATING CONDITIONS Ambient Temperature Range +5 °C (41°F) to +40°C (104°F) Relative Humidity Range...
  • Page 23 ALLOWED COMBINATIONS Stretcher Frame (700-19302) Adjustable Stretcher Frame, with Quick Connect (700-15695) Arjo Strap Stretcher (700-14945) Adjustable Stretcher Frame, with union tube & clevis pin (700-19522) TECHNICAL SPECIFICATIONS...

  • Page 24: Dimensions

    Dimensions 788 mm (31 in) 670 mm (26 2/5 in) 50 mm (2 in) 1400 mm (55 1/8 in) DIMENSIONS...

  • Page 25: Labels

    Labels SYMBOL EXPLANATION SYMBOL EXPLANATION This symbol is accompanied Washing temperature 80°C 80°C by the date of manufacture (176°F) permanent cycle. and the address of the manufacturer. Do not bleach. Points out manufacturing date. This symbol is accompanied by the manufacturer’s Do not dry clean.
  • Page 26 Page intentionally left blank...
  • Page 27 AUSTRALIA FRANCE POLSKA Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 11 Talavera Road CS 70133 PL-62-052 KOMORNIKI (Pozna ) Macquarie Park, NSW, 2113, FR-59436 RONCQ CEDEX...
  • Page 28 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise the standard of safe and digni ed care.
