QUICK REFERENCE GUIDE - USE

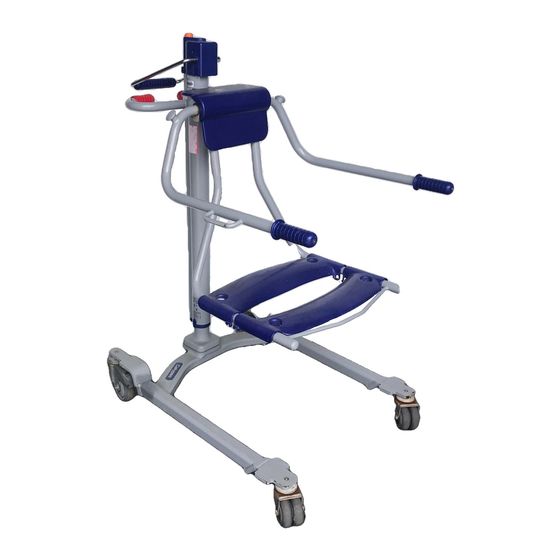

Calypso
Transfer from bed
1
Apply the brakes on the bed, if
applicable.
5
Apply brakes on all castors.
2
Fold down the bedrail.Turn the
patient onto their side, away from
Calypso lift and hygiene chair.
6
Turn the patient on their back.
Sit the patient upright, manually or
by raising the head end of the bed.
08.CD.11_1EN • 09/2020 • Page 1/6
3
Position the seat over the bed as,
close to the patient as possible.
7
B
A
Fold down the hand rest (A).
Lean the patient forward and
fold down the backrest (B).
4
Lower the seat so that it is pressed
against the bed.
8
B
A
Fasten safety belt.
Position the patient in the centre
of the seat, back against the
backrest (B) and hands on the
hand rest (A).
