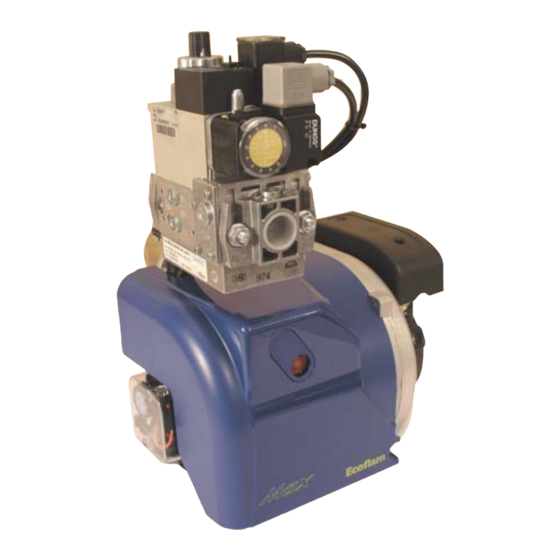

Ecoflam Max Gas 70 P AB Manual

Blown air gas burners 220v 50/60hz low nox

Hide thumbs Also See for Max Gas 70 P AB:

Manual (44 pages)

Technical data, operating instructions, electric diagrams, spare parts list (64 pages)

Operating instructions manual (36 pages)

Table of Contents

Quick Links

Need help?

Do you have a question about the Max Gas 70 P AB and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecoflam Max Gas 70 P AB

Page 1 BLOWN AIR GAS BURNERS MAX GAS 70 P AB MAX GAS 105 P AB MAX GAS 120 P AB Low Nox 220V 50/60 Hz 420010386102 29.11.2011...
Page 2: Technical Data
* : Minimum/maximum gas inlet pressures depend by the gas train matched to the burner. The values are written on the gas trains manual. TECHNICAL DATA Max Gas 70 P AB Max Gas 105 P AB Max Gas 120 P AB Termal power max.
Page 3 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB Installation must be carried out in compliance with the local provisions The burners have been certified in combustion d=0,8 chambers according to EN 676 standards. d=0,7 Consult the burner manufacturer if the com- d=0,6 bustion chamber of the boiler in which the burner is to be installed has smaller dimen-...
Page 4 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB ADJUSTING THE AIR PRESSURE SWITCH The air pressure switch must be adjusted so that an insufficient air flow does not allow the CO value to exceed 1% in volume. After having adjusted the gas flow and obtained optimum combustion (CO = 9.5 to 9.8% and a CO value of less than 75 ppm), the air pressure switch must be adjusted.
Page 5 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB POSITION OF ELECTRODES IONIZATION PROBE IGNITION ELECTRODE NOTE: For the conversion from Natural Gas into LPG see LBKIT1 manual MOUNTING TO THE BOILER TUBE DISASSEMBLY pag.5...
Page 6 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB MAINTENANCE YEARLY INSPECTION Periodic inspection of the burner (combustion head, electrodes, etc.) must be carried out by authorised per- sonnel once or twice a year, depending of use. Before carrying out maintenance inspection on the burner, it is advisable to check its general condition and carry out the following operations: - Disconnect the burner from the power supply (remove the plug).
Page 7 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB pag.7...
Page 8 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB pag.8...
Page 9 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB pag.9...
Page 10 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB MAX GAS 70 PAB code N° DESCRIPTION AIR PRESSURE SWITCH LGW10A2P 65323047 AIR INTAKE SET BURNER COVER 65320602 MOTOR 75 W 65325327 CAPACITOR 3 µF AEG 65321857 5 µF SIMEL 65325038 GASKET 65321109...
Page 11 420010386101 Max Gas 70-105-120 P AB 420010386102 Max Gas 70-105-120 P AB MAX GAS 105 PAB MAX GAS 120 PAB code code N° DESCRIPTION GAS PRESSURE SWITCH LGW10A2P 65323047 65323047 AIR INTAKE SET BURNER COVER 65320602 65320602 MOTOR 75 W 65325327 65325327 CAPACITOR...
Page 12 ECOFLAM BRUCIATORI S.p.A. reserves the right to make any adjustments, without prior notice, which it considers necessary or useful to its products, without affecting their main features. Ecoflam Bruciatori S.p.A. via Roma, 64 - 31023 RESANA (TV) - Italy - tel. 0423.719500 - fax 0423.719580 http://www.ecoflam-burners.com - e-mail: export@ecoflam-burners.com...

This manual is also suitable for:

Max gas 105 p ab Max gas 120 p ab
