TRI tool BEVELMASTER 212B Instructions Manual

Miter mandrel head for sp/ff
Hide thumbs

Advertisement

Quick Links

CUSTOMER MESSAGE
TOOL BIT RESHARPENING POLICY
WARRANTY INFORMATION

TABLE OF CONTENTS

Inside Front Cover
3
6
7
9
11
20
21
22
Inside Back Cover
Inside Back Cover

Advertisement

loading
Need help?

Need help?

Do you have a question about the BEVELMASTER 212B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRI tool BEVELMASTER 212B

Summary of Contents for TRI tool BEVELMASTER 212B

  • Page 1: Table Of Contents

    TABLE OF CONTENTS CUSTOMER MESSAGE Inside Front Cover SAFETY PRECAUTIONS GENERAL DESCRIPTION SPECIFICATIONS MAINTENANCE OPERATION DISASSEMBLY AND ASSEMBLY ACCESSORIES ILLUSTRATED PARTS BREAKDOWN TOOL BIT RESHARPENING POLICY Inside Back Cover WARRANTY INFORMATION Inside Back Cover...
  • Page 2 Copyright 1998 Proprietary property of TRI TOOL Inc. No reproduction, use, or duplication of the information shown hereon is permitted without the express written consent of TRI TOOL Inc.

  • Page 3: Safety Precautions

    Model 212B Miter Mandrel Head for SP/FF SAFETY PRECAUTIONS IN GENERAL When using rotating head cutting equipment, basic safety precautions should always be followed to reduce the risk of personal injury. Operate this tool only in accordance with specific operating instructions. Do not override the deadman switch on the power unit.
  • Page 4 TRI TOOL INC. TOOL CARE Maintain tools with care. Keep tools in good operating condition. Sharp tool bits perform better and safer than dull tool bits. Well maintained tools function properly when needed. Check for damaged parts. If a tool has malfunctioned, been dropped or hit, it must be checked for damage.
  • Page 5 Model 212B Miter Mandrel Head for SP/FF Disconnect power supply during setup and maintenance. Use all ‘Stop’ or Shut off’ features available when changing or adjusting tool bits, maintaining the tool, or when the tool is not in use. Remove adjusting keys and wrenches before applying power to the equipment. Develop a habit of checking the tool before turning it on to make sure that all keys and wrenches have been removed.

  • Page 6: General Description

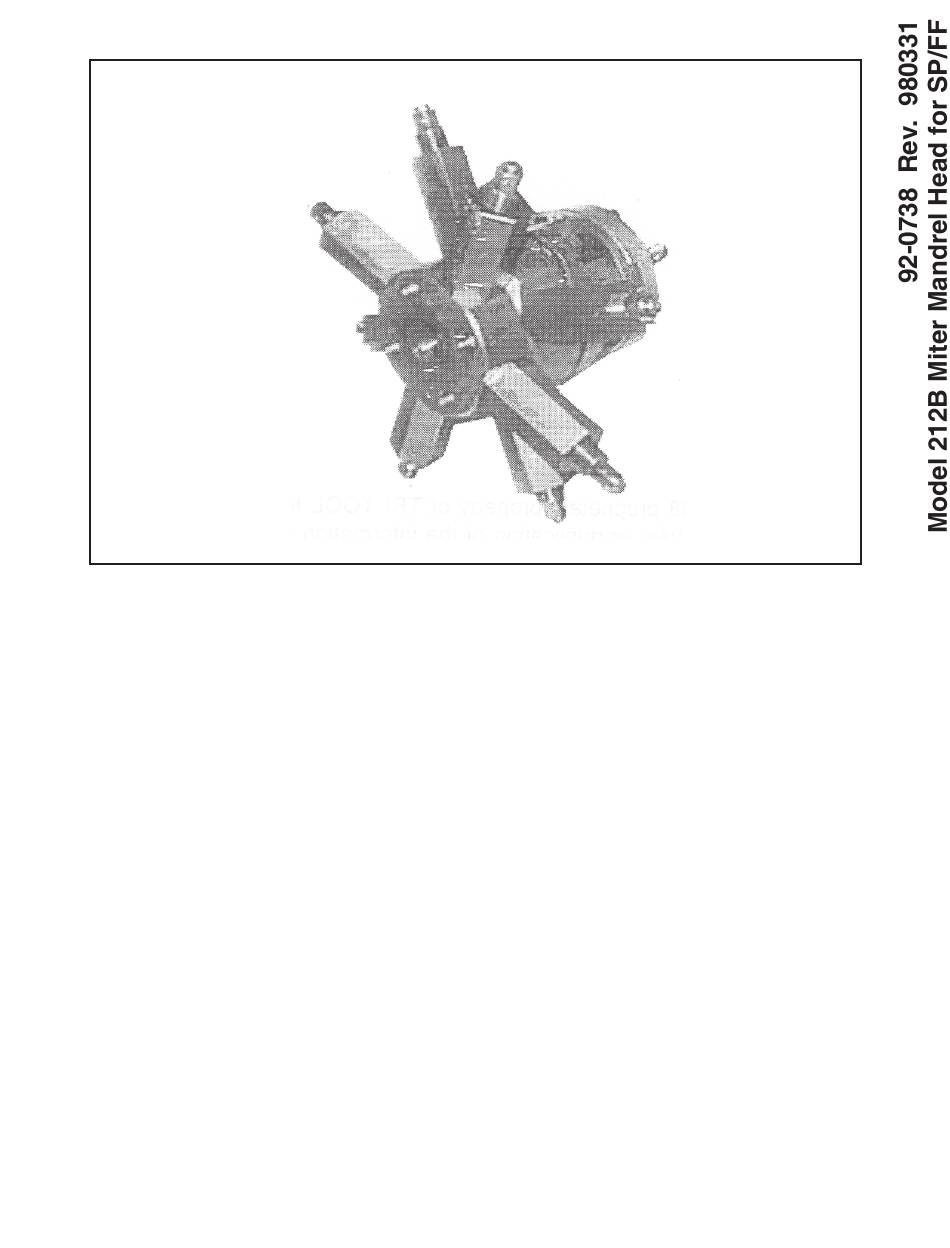

    TRI TOOL INC. GENERAL DESCRIPTION The Model 212B SP Miter Mandrel Head is an accessory option which is used to expand the versatility of the Model 212B by allowing in-situ set up on irregular pipe, fittings and valves. The Miter Mandrel Head is secured to the ID of the work-piece by way of eight individually adjusted ‘Jackscrews’...

  • Page 7: Specifications

    Model 212B Miter Mandrel Head for SP/FF SPECIFICATIONS Weight 20 lbs (9 kg)* *Weight will vary with the Jackscrew size. Pipe Holding Capacities Basic Pipe Size 6” pipe up to sch 120 through 24” pipe sch 30 and up. (Using Adapter Extension Plate) Envelope Drawing...
  • Page 8 TRI TOOL INC. Location Identifications 92-0738 : Rev. 980331...

  • Page 9: Maintenance

    Model 212B Miter Mandrel Head for SP/FF MAINTENANCE Tri Tool Miter Mandrel Heads are precision tools that will perform excellently if they are well maintained. Keep the Miter Mandrel Head clean. Brush away any chips or other debris with a soft bristle brush.
  • Page 10 TRI TOOL INC. Identification of Various Major Parts Occasionally back off the four (4) Parallel Offset Adjustment Screws, remove the Draw Nut, Adapter Plate Assembly and the Torque Plate. Check all parts for cracks, burrs, etc. Remove the four (4) Angular Offset Adjusting Screws and Spherical Washers and separate the Gimbal Plate from the Mandrel Head.

  • Page 11: Operation

    Model 212B Miter Mandrel Head for SP/FF OPERATION CAUTION: Never attempt to manually lift the Miter Mandrel Head with the 212B installed. The eight (8) Jackscrews are removable. They are made of heat-treated steel and have a slight spherical radius on the surface that contacts the work-piece. On most surfaces, this provides for excellent holding power with virtually no marring of the work-piece.
  • Page 12 TRI TOOL INC. The Extension Plate helps stabilize the miter mandrel head on the extended ID Ranges. It mounts to the front of the miter mandrel head (P/N 21-0101). Turn the Jackscrews to a diameter slightly smaller than the bore of the work-piece.
  • Page 13 Model 212B Miter Mandrel Head for SP/FF This will permit a maximum range of adjustment for final settings after the mandrel has been mounted. By turning the Draw Rod counterclockwise, the mandrel Shaft Assembly can be removed from the Miter Mandrel Head. NOTE: To make the parallel Offset Adjustment, all four (4) screws must be slightly loose.
  • Page 14 TRI TOOL INC. If it is not, then loosen the Angular Offset Adjustment Screws where the gap is small and tighten the Angular Offset Adjustment Screws where the gap is wide. Lightly tighten the Draw Nut. NOTE: All four of the Angular Offset Adjustment Screws must be used in conjunction with each other.
  • Page 15 Model 212B Miter Mandrel Head for SP/FF If not, locate the four (4) Parallel Offset Adjusting Screws and back off one (1) or two (2) screws where the Adapter Plate Assembly is ‘in’. Tightening to opposite one or two screws will bring the Adapter Plate Assembly toward the center.
  • Page 16 TRI TOOL INC. This will diminish the amount of Parallel Offset required after the angular adjustment has been made. Using a tape measure or a steel ruler, keep the rear flange of the Gimbal Plate roughly centered while turning the Jackscrews to tighten them against the ID of the work-piece.
  • Page 17 Model 212B Miter Mandrel Head for SP/FF Dial Indicator Kit Setup As before, use the Indicator Kit to determine how much the Adapter Plate Assembly must move, and in what direction. To move the Adapter Plate Assembly in a given direction, first loosen one or two Parallel Offset Adjustment Screws on the side of the Adapter Plate Assembly which you wish to move toward.
  • Page 18 TRI TOOL INC. Remove the indicator items and the Indicator Sleeve from the Miter Head. Tighten the Draw Nut securely. Torque should be 50 ft/lbs (68 N/m) to 75 ft/lbs (102 N/m). Align the torque pin holes in the end of the Mandrel Shaft with the Torque Pins in the Adapter Plate Assembly.
  • Page 19 Model 212B Miter Mandrel Head for SP/FF Short Perch Mounting, 8" to 16" Elbow Miter Mandrel , Tool Holder Extension Item Part Description 27-0626 ADAPTER, EXTENSION, TOOL HOLDER 33-2123 SCREW, SHOULDER be able to bring the miter head mounting jack screws closer to the edge of the finish prep.

  • Page 20: Disassembly And Assembly

    TRI TOOL INC. DISASSEMBLY AND ASSEMBLY Disassembly of the Miter Mandrel Head Back off the four (4) Parallel Offset Adjusting Screws about three full turns each. Unscrew the draw rod and slide the Mandrel Shaft Assembly rearward. Remove the Draw Nut, the Adapter Plate Assembly and the Torque Plate.

  • Page 21: Accessories

    Model 212B Miter Mandrel Head for SP/FF ACCESSORIES The following accessories are recommended for use with the Model 212B MM Head for SP and are available from TRI TOOL INC. Jackscrews Extension Kits: Item Part Description 05-1425 JACKSCREW ASSEMBLY, SHORT, STAINLESS STEEL...

  • Page 22: Illustrated Parts Breakdown

    TRI TOOL INC. ILLUSTRATED PARTS BREAKDOWN MODEL 212B SP/FF, MITER MANDREL HEAD (P/N 06-0226) 92-0738 : Rev. 980331...
  • Page 23 Model 212B Miter Mandrel Head for SP/FF Parts List, Model 212B SP/FF, Miter Mandrel Head (P/N 06-0226) Item Part Description 06-0226 HEAD ASSEMBLY, MITER MANDREL 21-0101 HEAD 24-0419 PLATE, TORQUE 24-0456 PLATE, GIMBAL 24-0533 PLATE ASSEMBLY, ADAPTER 29-0152 BEARING, SPHERICAL WASHER 33-0557 SCREW, SET 33-1321...
  • Page 24 TRI TOOL INC. INDICATOR SLEEVE ASSEMBLY (P/N 46-0128) 92-0738 : Rev. 980331...
  • Page 25 Model 212B Miter Mandrel Head for SP/FF Parts List, Sleeve Assembly, Indicator (P/N 46-0128) Item Part Description 29-0102 BEARING, BALL 35-0222 NUT, LONG 46-0126 SLEEVE, OUTER 46-0127 SLEEVE, INNER 92-0738 : Rev. 980331...
  • Page 26 TRI TOOL INC. DIAL INDICATOR ASSEMBLY (P/N 50-0015) 92-0738 : Rev. 980331...
  • Page 27 Model 212B Miter Mandrel Head for SP/FF Parts List, Dial Indicator Assembly (P/N 50-0015) Item Part Description 30-0334 BASE, MAGNETIC 30-0335 POST, UPRIGHT 30-0336 SLEEVE 30-0337 30-0338 SLEEVE 30-0339 ATTACHMENT, INDICATOR 30-0340 INDICATOR, DIAL 30-0341 ATTACHMENT, UNIVERSAL 92-0738 : Rev. 980331...
  • Page 28 TRI TOOL INC. EXTENSION PLATE KIT (P/N 05-1219) Parts List, Extension Plate Kit (P/N 05-1219) Item Part Description 24-0608 EXTENSION PLATE 33-1456 SCREW, CAP, 1/2-20 X 1.75" NOT SHOWN 36-0012 WRENCH, L 3/8" HEX 92-0738 : Rev. 980331...
