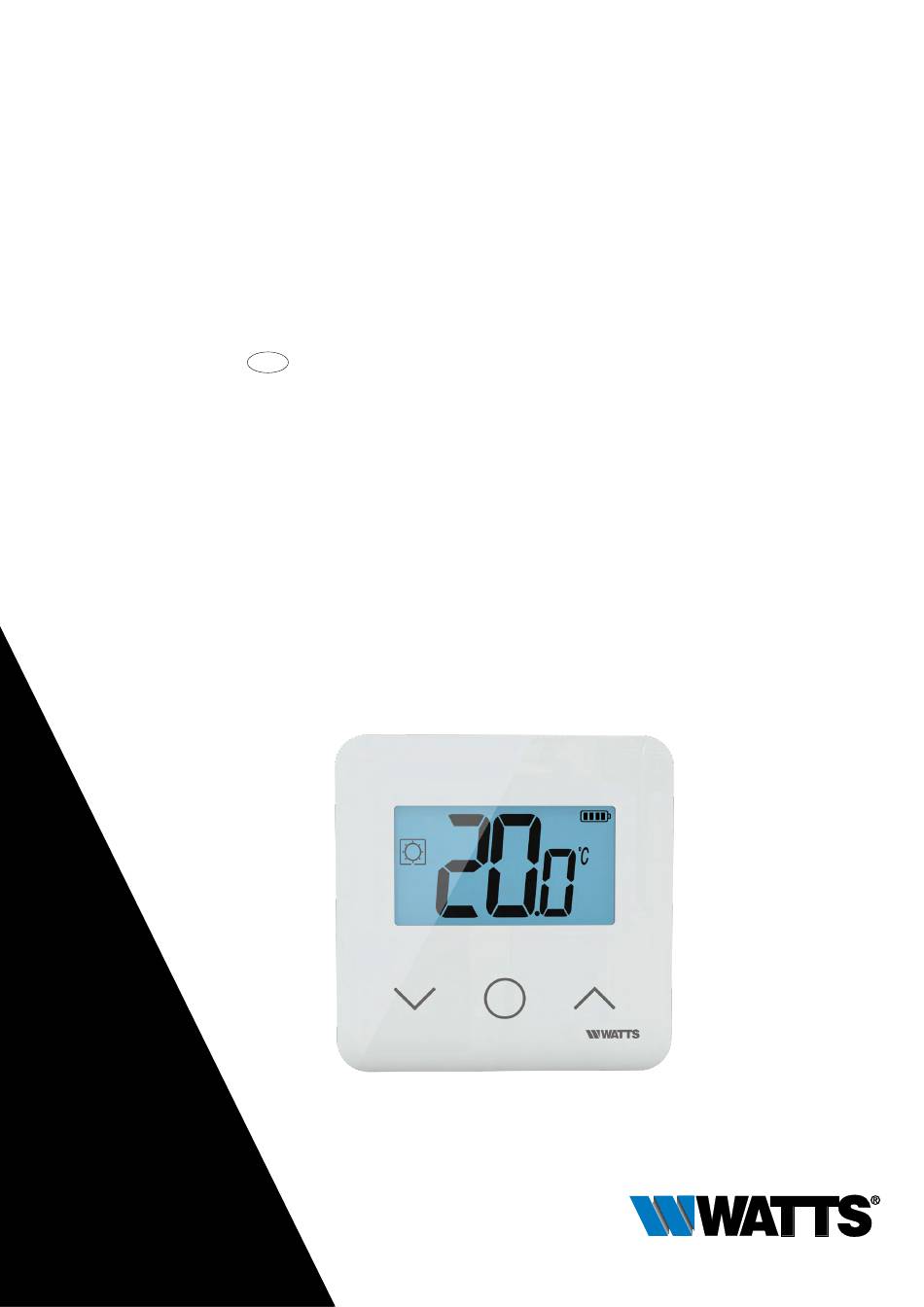

- Page 1 BT-D03 HC FC (relay) Wired digital Heat&Cool room thermostat with integrated relay Vision Wired ® Installation manual Installation and Operation Manual wattswater.eu...
-
Page 2: Table Of Contents
Table of content General information ..................................................................1. Presentation ......................................................................2. Box contents ......................................................................3. First Installation ....................................................................4. Product description ................................................................4.1 LCD logo description ................................................................. 5. Mode selection ....................................................................5.1 Change temperature setting ............................................................5.1.1 Boost/Timer mode 5.1.2 Comfort mode 5.1.3 Reduced / ECO mode 5.1.4 Anti-freeze mode 5.1.5 OFF mode... -
Page 3: General Information
General information Safety warnings and operating instructions • This product should be installed preferably by a qualified • 2012/19/EU (WEEE directive): Products marked with this professional. Subject to observation of the above terms, the symbol cannot be disposed of as unsorted municipal manufacturer shall assume the liability for the equipment as waste in the European Union. -
Page 4: Presentation
• Opened window detection function • Keyboard locking and Pin code for public area. • EEPROM non volatile memory. • 2 parameter menus: User and Installer. 2. Box contents Quick Installation Guide WATTS Vision thermostat Back cover ® AAA type batteries Fixing screws... -
Page 5: First Installation
3. First Installation See quick installation guide for installation. Batteries installation. Open the cover and insert the 2 AAA supplied batteries. CAUTION: risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the instructions. -
Page 6: Product Description
4. Product description Minus button Plus button or down/left button or up/right button for menu navigation. for menu navigation. Validation of temperature set point setting or accessing to parameter menu or displaying measured temperature / temperature set point. 4.1 LCD logo description 1. -
Page 7: Mode Selection
5. Mode selection Menu for mode selection No user action 5 seconds after 10 seconds Automatic selection Parameter menu Selection of mode of current mode Press any key to wake-up the thermostat and activates the backlight. Hold key for 2 second to access to menu for selection of mode. Press permits to navigate/change in different mode. -
Page 8: Change Temperature Setting
5.1 Change temperature setting Wake-up the thermostat by pressing any key. 5.1.3 Reduced/ECO mode Press , to change the temperature set point (digits In this mode, reduced temperature set point will be followed starts to blink). all the time. By pressing key, temperature set point value is validated. -
Page 9: Reversible Mode
6.2 Reversible mode 6.5 PIN code To activate this function enter user parameter #07. The PIN code protect the thermostat from any change of the setting as temperature or mode. When user pushes a key, “PIN” will be displayed. If user press another time a touch, he has to enter PIN number. -
Page 10: User Parameter Description
8. User parameter description ECO/Reduced offset setting User configure offset value for ECO/reduced mode. Default value: 2,0°C or 3,6°F - Step value: 0,1°C or 0,2°F Value range: 0,0°C to 5,0°C or 0,0°F to 9,0°F “basic navigation” mode « Yes » : activation of function, restrict to comfort mode and off mode « no » : no activation Default value: no Values: Yes / no... - Page 11 Setting value for PIN code This menu is only displayed if parameter Pin (#07) is set with “Yes”. User has to configure values of the three digits with keys, and validate its choice with validation key Default value: 000 Value range: 000 to 999 Degree unity for displaying - °C: Celsius - °F: Fahrenheit...
-
Page 12: Installer Parameter Description
Professional/Installer menu This menu permits to access to installer parameter menus. Pressing and maintaining validation key displays first parameter of installer menus. When validation/menu key is hold: Accessing to installer parameters Installer parameters holding holding releasing button button button User menu exit Press validation key to exit user menu and return to the main screen. - Page 13 Cycle time setting This menu is displayed only if parameter “Typ” (#15) is equal to “bp”. Use minus and plus keys to set cycle time value. The setting is validated with validation key. Default value: 10 minutes Other values: [10 15 30 45 60] Proportional Band This menu is displayed only if parameter “Typ”...
-
Page 14: Troubleshooting & Solution
Pump and valve exercises Activation or not of system exercise function. It will drive pump during 4 minutes after 7 days pump off. Default value: Yes Values: Yes / no EEPROM clearing All thermostat parameters will be loaded with factory settings. Pressing and maintaining validation key displays: Accessing to installer parameters... -
Page 15: Maintenance
11. Maintenance Battery level indication If the thermostat needs a more thorough cleaning: The batteries are considered weak when voltage level is too Lightly dampen a soft and clean cloth with water. low for a correct product functioning. Wring out any excess water from the cloth. The icon will blinked on LCD screen. -
Page 16: Dimensions & Weight
Ecodesign requirements for local space heaters. 2015/1188/EU Regulation (EU) 2015/1188 Watts Electronics S.A.S B.P. N°10 - Z.A. des Tourettes, 43800 ROSIERES, France, T: +33(0) 471 57 40 49, F: +33(0) 471 57 40 90, www.wattswater.eu Watts contacts in Europe: https://wattswater.eu/watts/contacts/ BT-D03-HC-RF-RELAY-IOM-FR-W-EN-01-24 © 2024 Watts...
