Summary of Contents for Vacmaster CC0101

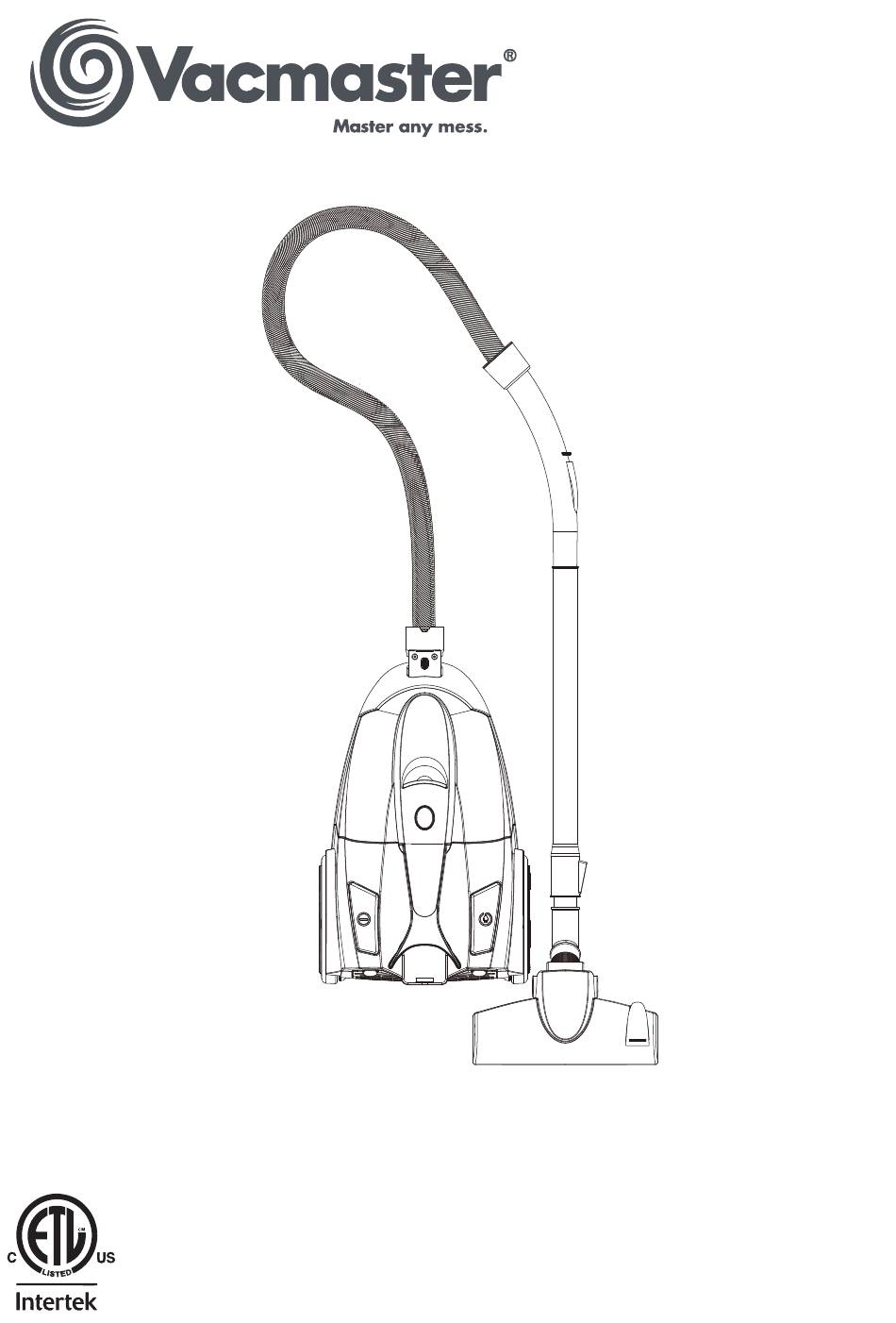

- Page 1 Use & Care Guide Bagless Canister Vacuum Cleaner MODEL NO. CC0101 www.vacmaster.com Cleva North America, Inc. Greenville, SC 29607 (866) 384-8432 Made in China...
-
Page 2: Table Of Contents
Operating Instructions........................7-10 Maintaining Your Vacuum........................ 11-14 Troubleshooting..........................15-16 ® Thank you for purchasing this Vacmaster vacuum cleaner. With it you are obtaining a high quality product that is engineered for optimal performance. FOR YOUR SAFETY Read and understand this manual before use. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING - To reduce the risk of fire, electric shock, or injury: •... -
Page 4: Warranty
WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call (866) 384-8432. • This warranty does not cover filters, which are expendable parts that can wear out from normal use within the warranty period. -
Page 5: Getting To Know Your Vacuum
Exhaust Foam Filter Cover REPLACEMENT PARTS Item Part No. Attachment Holder 591018182 Crevice Tool 591018183 Dusting Brush 591018181 HEPA Filter 591018155 Air Outlet Filter 591018156 Exhaust Foam Filter 591018119 Floor Nozzle 591018185 Hose 591018168 Available online at www.vacmaster.com or call (866) 384-8432. -
Page 6: General Assembly Instructions
GENERAL ASSEMBLY INSTRUCTIONS WARNING! DO NOT plug into electrical supply until assembly is complete. Failure to do so could result in electrical shock or injury. 1. Insert the hose into the canister with the hose release button upward until you hear a click. -
Page 7: Operating Instructions
4. Insert the desired accessories into the wand and press together tightly . 5. This vacuum cleaner is equipped with onboard attachment storage. The dusting brush and crevice tool are stored in the attachment holder as shown. Dusting Brush Crevice Tool OPERATING INSTRUCTIONS Using Your Vacuum Cleaner Note: Make sure the vacuum cleaner is completely assembled and the dust cup... - Page 8 2. Plug the power cord into an outlet located near the floor. WARNING To reduce the risk of electric shock, this vacuum cleaner has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way.
- Page 9 WARNING • The cord moves rapidly when rewinding. Keep children away and provide a clear path when rewinding the cord to prevent personal injury. • DO NOT use outlets above counters. Damage from cord to items in surrounding area could occur. Using the Attachments •...
- Page 10 • Crevice Tool: For vacuuming edges and gaps. • Dusting Brush: For vacuuming fragile or easily scratched items, such as furniture and drapes. Note: You can also choose to use your vacuum cleaner by inserting the crevice tool or the dusting brush into the hose directly. Storing Your Vacuum 1.
-
Page 11: Maintaining Your Vacuum
MAINTAINING YOUR VACUUM CAUTION To reduce the risk of shock, disconnect the power cord, and turn off before performing any service or maintenance. Emptying the Dust Cup Note: For best performance, empty dust cup after every use. Never operate vacuum cleaner without dust cup and filter in place. 1. - Page 12 Cleaning the Filters Clean the HEPA Filter & Air Outlet Filter 1. Press the dust cup release button as shown to separate the dust cup & filters from the canister. 2. Open the air outlet filter holder and separate the air outlet filter from the holder. 3.
- Page 13 IMPORTANT : The filters must dry completely before reuse. 5. Place the air outlet filter back onto the air outlet filter holder. Then reinstall the HEPA filter with dust wrap into the dust cup by rotating clockwise. 6. Ensure the air outlet filter holder clicks into place and then place the dust cup back to the canister.
- Page 14 3. Reinstall the exhaust foam filter cover by inserting the two tabs on the cover into the slots at the bottom of the canister. Then press the cover into place and ensure the release latches snap into place until you hear a click. slots Checking and Removing Clogs For best cleaning results, keep the airflow passage open.
-
Page 15: Troubleshooting
Empty dust cup. Follow instructions on Dust cup is full. page 11. Follow filter cleaning instructions on Filters need cleaning. page 12. Purchase online at www.vacmaster.com Filters need to be replaced. or call (866) 384-8432. The job of Check the nozzle, telescoping wand, dirt pick-up There is a clog in the vacuum. - Page 16 Filter is missing or installed Check filter for correct installation. incorrectly. Dust escapes from vacuum. Filter is damaged and needs to Purchase online at www.vacmaster.com be replaced. or call (866) 384-8432. Power cord is dirty Clean the power cord. Cord won’t Power cord is jammed.
