Relay Drop Down Menu; Enu; Relay Time (Ms) Field; Type Drop Down Menu - Telex IP-223 Technical Manual

Per line Setup Window—Tetra Radio Configuration

Relay Drop Down Menu

The Relay drop down menu identifies the relay(s), if any, closed immediately upon receipt of the function tone.
Available selections for this field are: no selection, R01, R02, or BOTH.
Relay Drop Down Menu

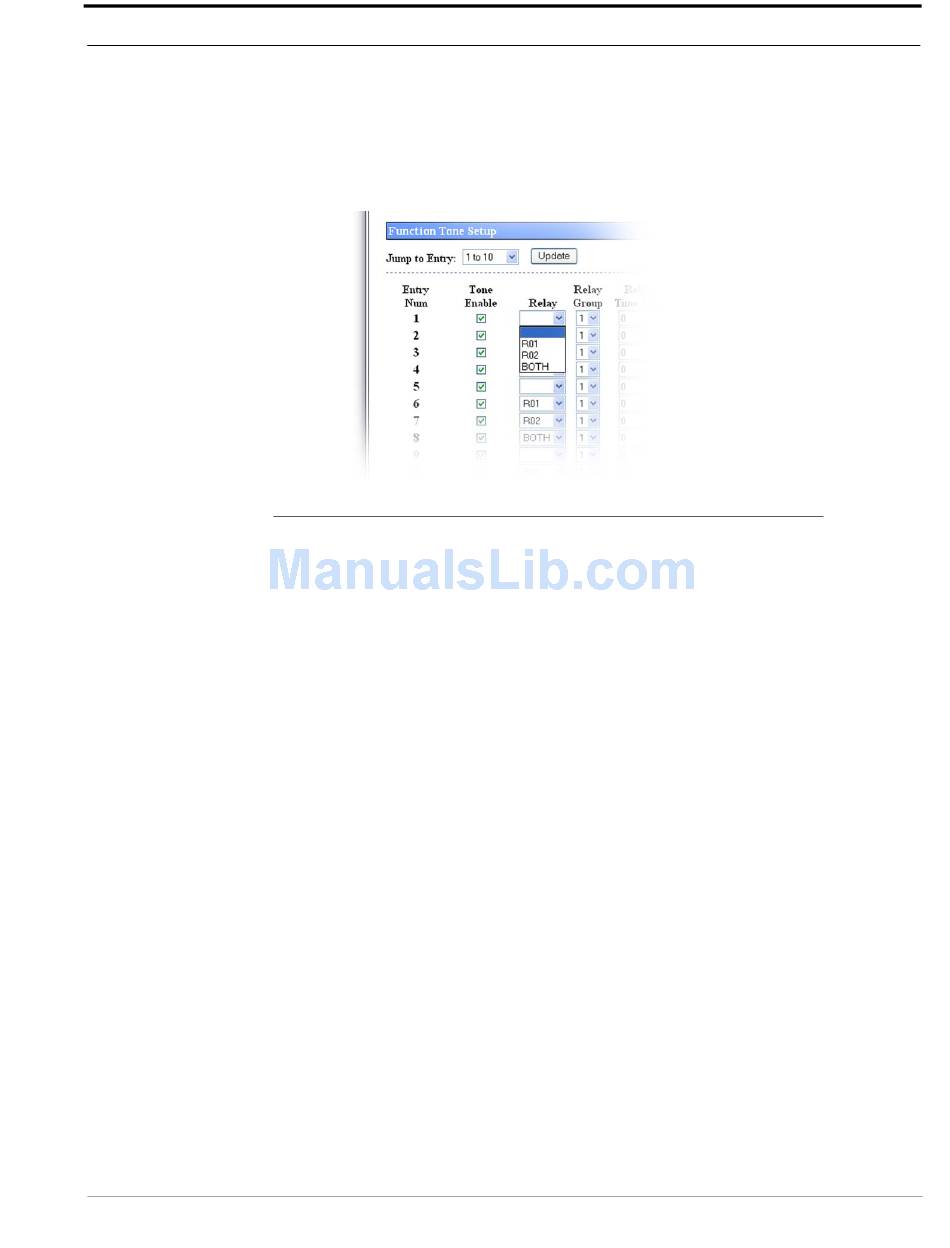

FIGURE 116.
Relay Group Drop Down Menu
The Relay Group drop down menu identifies if a relay is grouped into separate functions. This allows more than one (1) relay
to be activated at any particular time by being in separate groups. For example, when F1 has R1 selected as its relay, and F2
has R2 selected as its relay, setting the two (2) Relay Group numbers to the same value allows multiple relays with different
functions. In this scenario, the relays for F1 and F2 are interlocked. When the Relay Group assigned to F1 and F2 are different,
R2 does not activate when F1 is received. Furthermore, when there is no relay selected for a function tone, but the assigned
relay group is used by another relay group, when the function tone is received, all relays in the group are activated. This allows
relay R1 and R2 to be assigned to different groups and use other function tones within the same relay group to activate them.
Select either 1 or 2 from the drop down menu.

Relay Time (ms) Field

The Relay Time (ms) field identifies if the selected relay(s) latch ON when the function tone is received, or if the selected
relay(s) is latched ON for a specified period of time when the function tone is received. To program the relay(s) to latch ON
when the function tone is received enter a zero (0) in the field. To set the duration the relay(s) is latched ON, enter the desired
amount of time, in ms, in the field.
The range for this field is 0 to 32000ms.
