Crosspatch Setup Window

Delete String Field

The Delete String field identifies the DTMF digit sequence to delete this crosspatch entry. The number entered must be the
number of digits specified in the Dialing Digits field.
This field can contain up to 4 digits.

Mode Drop Down Menu

The Mode drop down menu identifies the crosspatch mode used for the crosspatch entry number. The crosspatch modes
available are:

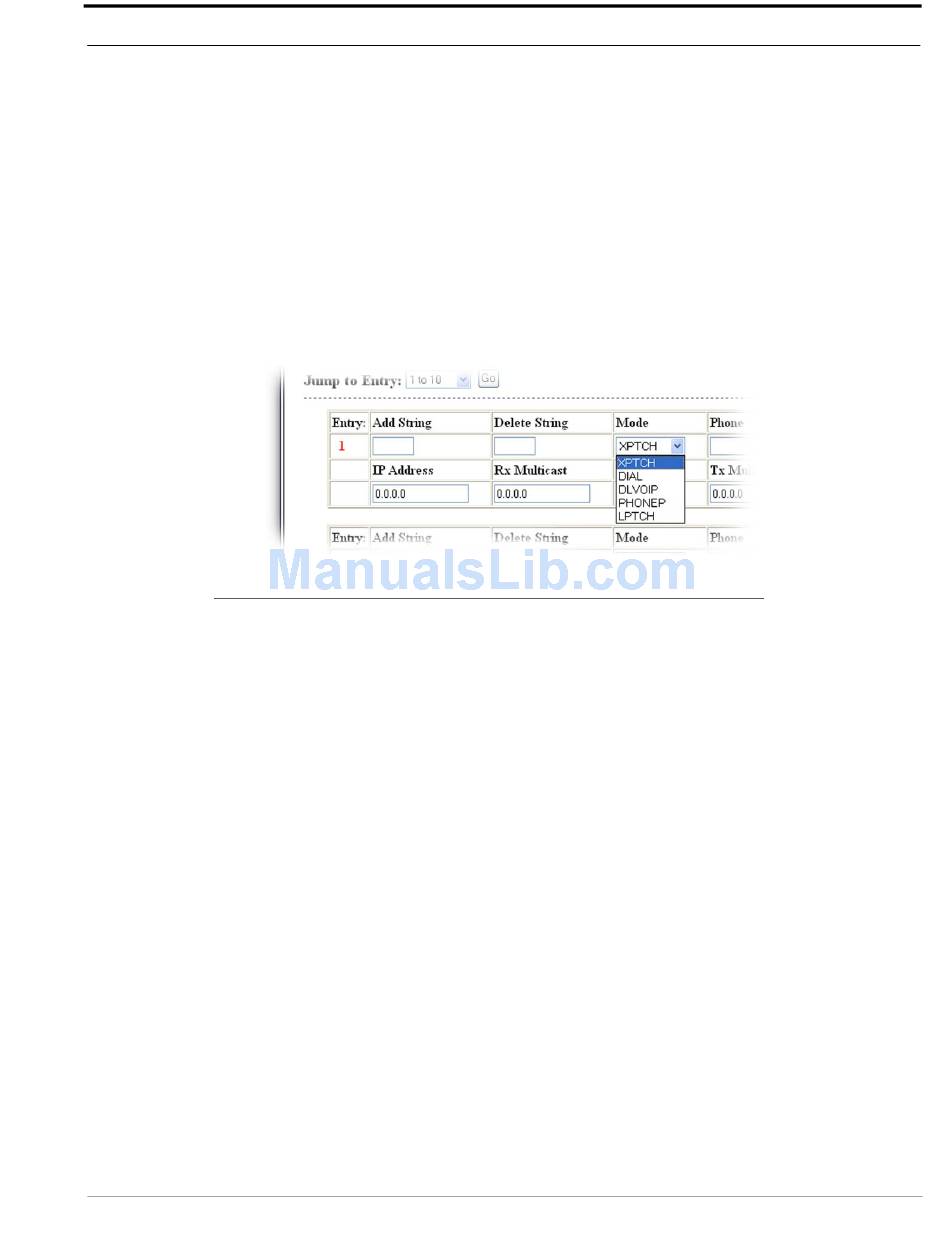

FIGURE 129.
XPTCH – Crosspatch to a remote IP-223. the IP Address and line number is required.
DIAL – A remote user with a portable radio can key a DTMF string, causing the IP-223 to take the PIB or TDI
offhook, dial a pre-programmed phone number and establish a patch between the devices.
DLVOIP – A remote user with a portable radio can key a DTMF string, causing the IP-223 to join different multicast
groups and ports, which can cause mapping the IP to a different line.
PHONEP – A remote user with a portable radio can key a DTMF string, causing the IP-223 to take the PIB or TDI
offhook. Once the PIB or TDI is offhook, the user can manually dial a phone number.
LPTCH – Line-to-line crosspatch. Enable and disable using DTMF strings.

Phone Field (DIAL option only)

The Phone field identifies the phone number to be dialed for this crosspatch entry.
This field can contain up to 21 digits.

#1 or #2 Drop Down Menu (XPATCH option only)

The #1 or #2 drop down menu identifies which DB25 connector port on the remote IP-223 is used in this crosspatch entry.
Available selections for this field are: Radio1 or Radio 2.
Crosspatch Setup - Mode Drop Down Menu
