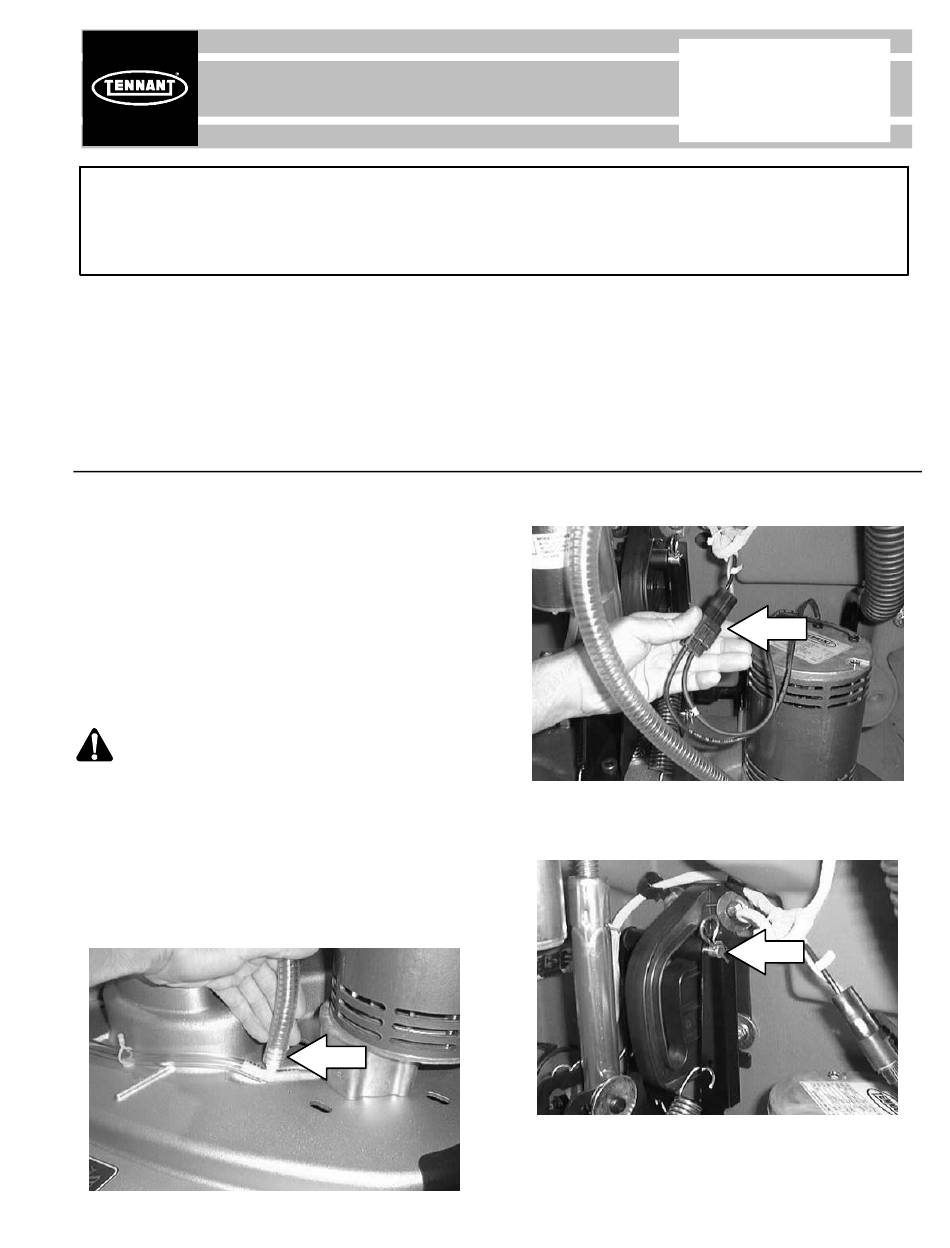

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in the machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 397745
SYNOPSIS:

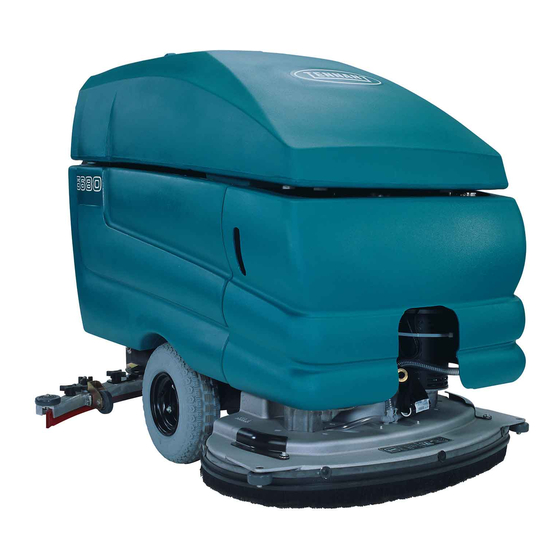

This kit contains the parts needed to install a 700D scrub head on the 5680 scrubber.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)

PREPARATION:

1. Stop the machine on a level clean surface, lower
the scrub head, and turn off the machine.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off machine,
and remove key.
2. Remove the front cover from the machine.
3. Disconnect battery cables from the batteries.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.

REMOVE THE OLD SCRUB HEAD:

NOTE: Refer to FIG. 11 and FIG. 12 for detailed
drawings of parts assembled throughout this
Instruction Bulletin.
1. Disconnect the solution line from the tee fitting.
Refer to FIG. 1.
FIG. 1
IB 340405 (05- -2007)
No. 340405
Machine: 5680
Published: 05- -2007
Rev: 02
2. Disconnect the wire harness from the old scrub
motors. Refer to FIG. 2.
FIG. 2
3. Disconnect the scrub head from the guide by
removing the clevis pin. Refer to FIG. 3.
FIG. 3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5680 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant 5680

Summary of Contents for Tennant 5680

  • Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 397745 SYNOPSIS: This kit contains the parts needed to install a 700D scrub head on the 5680 scrubber. Please follow step-by-step instructions. SPECIAL TOOLS / CONSIDERATIONS: NONE...
  • Page 2 4. Remove the two clevis pins from the scrub head lift 2. Connect the scrub head to the guide with the arms and disconnect the scrub head lift arms from larger clevis pin (22) and roller (21). the scrub head. Refer to FIG. 4. Refer to FIG.
  • Page 3 5. Connect the solution line to the scrub head tee LEVEL THE SCRUB HEAD: fitting. Refer to FIG. 10. 1. Lower the scrub head. 2. Measure the distance from the top of the scrub head to the floor at all four corners. All four corners should be the same distance from the floor.
  • Page 4 FIG. 11 IB 340405 (05- -2007)
  • Page 5 Mark actuator tube location on actuator shaft before disconnecting FIG. 12 IB 340405 (05- -2007)
  • Page 6 Strap Assy, Handle 23996 (000000-- Washer, Flat, 0.53b 0.84d .06, Stl, Pl 397817 (000000-- Pin, Clevis, 0.50 D X 2.88l 02942 (000000-- Pin, Hair Cotter, 0.62 D .120 Wir TENNANT COMPANY P. O. Box 1452 Minneapolis, MN 55440-1452 IB 340405 (05- -2007)
