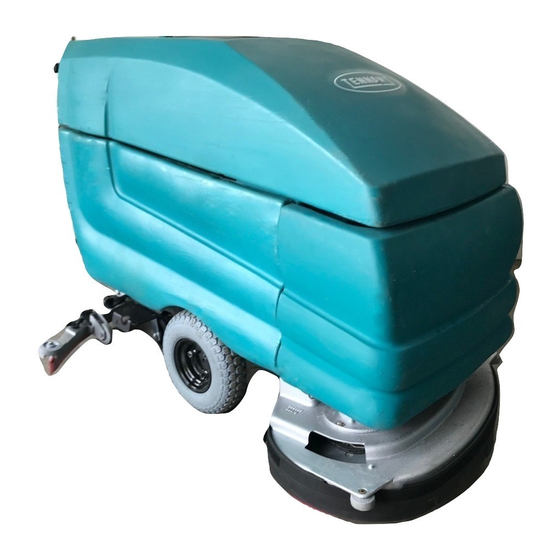

Tennant 5700 Operator's Manual

Walk--behind scrubber
Hide thumbs Also See for 5700:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operator's Manual
5700
(Electric)
(000000- -029999)
Walk- -Behind Scrubber

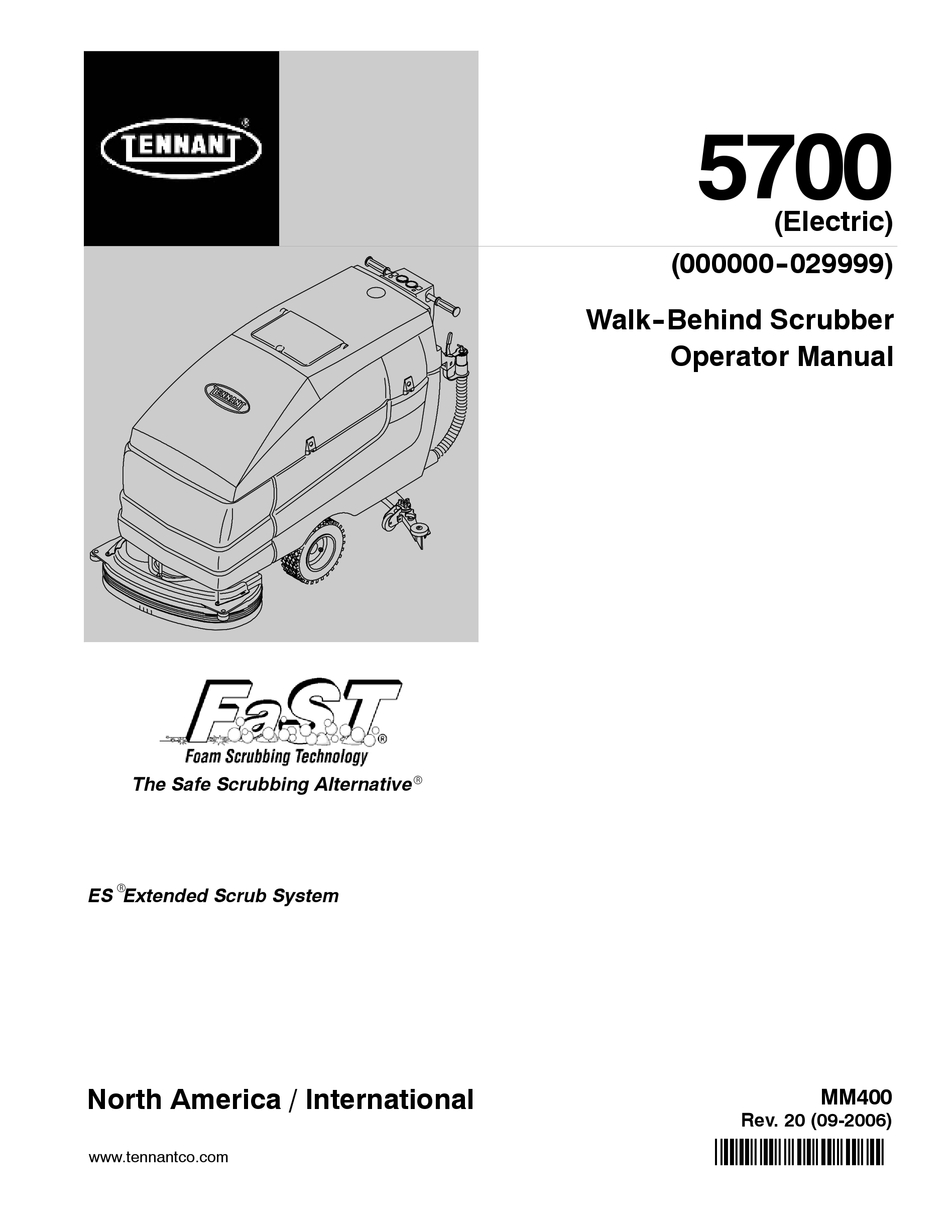

Operator Manual
The Safe Scrubbing Alternative
R
R
ES Extended Scrub System
North America / International
MM400
Rev. 20 (09-2006)
*MM400*
www.tennantco.com
