USER GUIDELINE
Thank you for choosing MOON light!
*For using this product safely and conveniently and keeping it
well-preserved, please read this manual carefully before using.
Please save this manual for future reference.
*Due to the improvement of the product, the product you bought may
not be exactly in accordance with the introduction of this manual. We
apologize for that.
SPECIFICATION

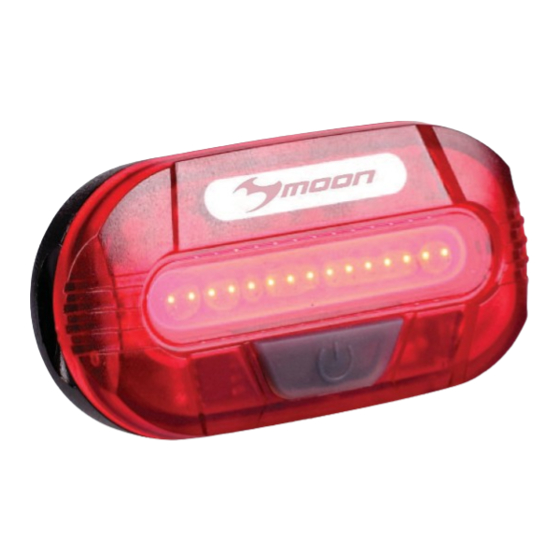

*1 pc (15 chips) COB high brightness red LED
*CR 2032 battery x 2
*5 modes: High / Over drive /
50% Flashing / 100% Flashing / Strobe
*Quick release universal bracket RB-22
(fits all round bars and AERO style bars)
*2 O-rings for mounting: RS-G (fits 20-35mm diameters)
RS-H (fits 35-52mm diameters)
*Side visibility
*Water resistant (IPX 4)
*Belt clip design
(can be installed either on saddle bag, jersey back pocket, etc.)
CONTENTS INCLUDED
Ccntents:
LUNAR
*CR2032 battery x 2
*RB-22 (Universal bracket)
*2 O-rings for mounting:
RS-G (fits 20-35mm diameters)
RS-H (fits 35-52mm diameters)
*BK-21 (Belt clip)
Optional acessoires:
*RB-19 (Rear rack mount bracket)
*RB-21 (Saddle rail bracket)
*RB-23 (Helmet bracket)
LIGHT OPERATION
1. Press the power button to choose the modes:
In this method two modes are cycled.
Standard
High beam
2. Fast press two times the power button to change into the strobe
and flashing modes. Fast press two times back to the first cycle.
Power button
PRESS
Fast press
2 times
2. Fast press two times the power button to change into the strobe
and flashing modes. Fast press two times back to the first cycle.
®
50% Flashing
100% Flashing
Strobe
4. Press and hold the on / off button around 0.5 seconds to turn off.
5. When the LED is not bright enough, it means the batteries are low.
You'd better change the batteries right now.
Power button
* Change the batteries
HOW TO MOUNT THE LIGHT
1. Choose the strap to fit in the bar.
2. Make sure the strap is click in place of the hook.
PRESS
3. Hold the light on the seat post.
4. Wrapping rubber strap around bar and stretching strap around hook to secure.
5. Slide the light forward onto bracket until it clicks into place.
6. Press down release lever to remove.
20-26 mm
26-35 mm
RS-G
20-35 mm
Fast press
2 times
Standard
High beam
Power button
PRESS
Fast press
2 times
Power button
PRESS
Hold 0.5 sec
Dim
26-35 mm
35-52 mm
RS-H
35-52 mm
Install
Pull
7. Adjust the vertical beam angle when mounted on the seatpost, loosen
the screw knob band the light up or down for your preferred angle, then
tighten the screw knob to secure the light in place.
Release
Press
Install
click
Method 1
1.Slide tail light forward onto belt clip until it clicks into place.
2.Press down release lever to remove.
HOW TO MOUNT THE LIGHT
RELEASE
Method 1
1.
clockwise
2.
Release
Install
Press
click
Method 2
anticlockwise
