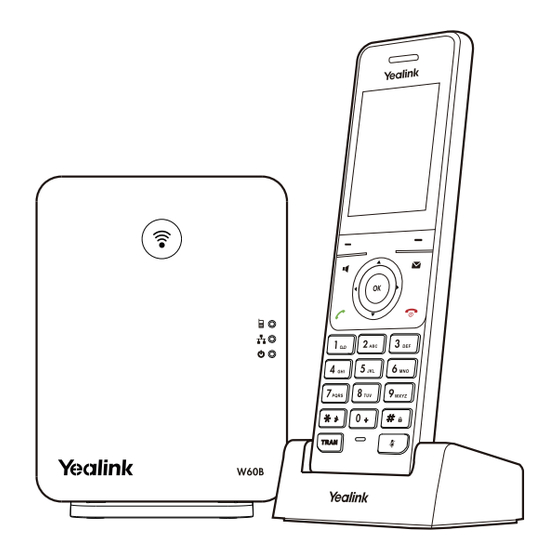

DECT IP Phone
W60B & W56H
Quick Start Guide(V81.30)
www.firstcomm.com
For W60B firmware 77.81.0.30 or later
For W56H firmware 61.81.0.30 or later

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W60B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yealink W60B

Summary of Contents for Yealink W60B

  • Page 1 DECT IP Phone W60B & W56H Quick Start Guide(V81.30) www.firstcomm.com For W60B firmware 77.81.0.30 or later For W56H firmware 61.81.0.30 or later...
  • Page 2 Handset Protective Case Ethernet Cable Belt Clip Rechargeable Battery Quick Start Guide (Optional) Note: Yealink W60P DECT IP phone consists of one W60B base station and one W56H handset. W56H Package Contents USB Charger Cradle Power Adapter W56H Handset Belt Clip...
  • Page 3 IEEE 802.3af compliant PoE Hub/Switch Note: If you choose Method a, use Yealink supplied power adapter (5V/600mA). A third-party power adapter may damage the base station. If you choose Method b, you do not need to connect the power adapter.
  • Page 4 2b. (Wall-Mount Installation) Attach the base station. 3. Insert the battery into the handset. battery 4. Attach the Belt Clip. 5. (Optional) Mount the charger cradle to the wall. 36mm...

  • Page 5: Getting Started

    W60B. When you upgrade the older handset via W60B, the number of the handsets registered on the W60B should be no more than 5. If it is more than 5, deregister the newer handset first and then upgrade the remaining handsets. Repeat the step to upgrade all the older handsets.

  • Page 6: Handset Registration

    Handset Registration You can register up to 8 handsets to one W60B base station. Each handset can be registered to 4 different base stations. When the handset LCD screen prompts “Unregistered!”, long press on the base station till the registration LED flashes. There are two methods to register a new...

  • Page 7: Turning Handset On/Off

    Basic Operations Turning Handset On/Off To turn the handset on, do one of the following: Press , then the LCD screen lights up. Place the handset in the charger cradle. The handset will be turned on automatically. To turn the handset off: Long press to turn the handset off.

  • Page 8: Handset Settings

    Handset Settings Handset Name To rename the handset: 1.Press the OK key to enter the main menu, and then select Settings->Handset Name. 2.Edit the value in the Rename field. 3.Press the Save soft key to accept the change. Volume Adjustment Press when the handset is idle or ringing to adjust the ringer volume.

  • Page 9: Placing Calls

    Basic Call Features Placing Calls To place a call directly: 1.Do one of the following: Enter the desired number when the handset is idle. Press to enter the pre-dialing screen. Enter the desired number using the keypad. If there are multiple lines assigned to your handset as outgoing lines, press the Line soft key to select the desired line.

  • Page 10: Ending Calls

    You can ignore an incoming call by pressing the Silence soft key or reject an incoming Note: call by pressing Ending Calls Press Call Mute Press during a call to mute the call. Press again to un-mute the call. Call Hold and Resume To place a call on hold: Press the Options soft key during a call, and then select Hold.

  • Page 11: Voice Message

    Voice Message Voice Message Message waiting indicator on the idle screen indicates that one or more voice messages are waiting at the message center. The power indicator LED slowly flashes red. To set up voice messages: 1. Press or the Connect soft key. Enter mailbox number (your extension) and press # Welcome greeting Enter password (4 to 6 Digits) and press #...
  • Page 12 About First Communications First Communications is a leading technology solutions provider offering data networking, voice, and managed services throughout the Midwest. Founded in 1998, First Communications network has grown to include more than 600 on-net wire centers and supports over 35,000 customers.
