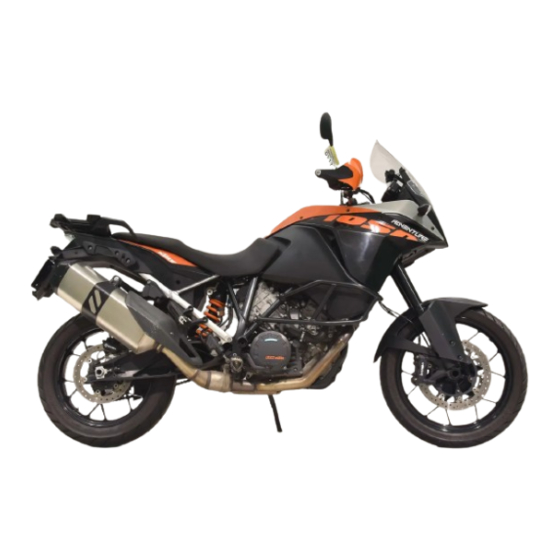

- Page 1 SETUP INSTRUCTIONS 2015 1050 Adventure EU 1050 Adventure AU Art. no. 3213314en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, misprints, and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. - Page 5 SETUP Unpacking and setting up the vehicle – Remove straps and box. S00755-10 – Remove the adhesive tape in the upper area of the motorcycle. M00866-01 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have finished work on the vehicle.
- Page 6 SETUP – Check the throttle grip for smooth operation. – Mount and tighten the rear mirror on both sides. M00871-01 – Remove the film from the headlight. Position the screen. Mount and tighten screws S00744-10 – Mount reflector with spring washers ...
- Page 7 SETUP – Print out the current PDI form found on the KTM Dealer.net and perform the pre- delivery inspection.
-
Page 8: Recharging The Battery
The battery is maintenance-free, i.e., the acid level does not have to be checked. If the battery is not charged using the KTM battery charger, the battery must be removed for charging. Otherwise, overvoltage may damage electronic components. Charge the battery according to the instructions on the battery housing. - Page 9 WORK Preparatory work – Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 6) Main work – Pull locking mechanism in the direction of the arrow. – Fold open cover S00746-10 –...
- Page 10 WORK – Set the time and date. Refueling Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –...
- Page 11 WORK – Lift cover of the filler cap and insert ignition key in the fuel tank lock. S00748-10 Note Danger of damage Ignition key breakage. – To take pressure off of the ignition key, push down on the filler cap. Damaged ignition keys must be replaced.
-
Page 12: Technical Data - Tightening Torques For Chassis
TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – Screw, combination switch, left 2 Nm (1.5 lbf ft) – Screw, side stand switch 2 Nm (1.5 lbf ft) – Remaining screws, chassis 5 Nm (3.7 lbf ft) – Screw, brake line holder on swingarm 5 Nm (3.7 lbf ft) –... - Page 13 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS Loctite ® 243™ Screw, steering damper 25 Nm (18.4 lbf ft) – Screw, steering damper clamp 12 Nm (8.9 lbf ft) Screw, suitcase hook 20 Nm (14.8 lbf ft) Loctite ® 243™ – Screw, top triple clamp 15 Nm (11.1 lbf ft) –...
- Page 14 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
- Page 15 *3213314en* 3213314en 02/2015 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
