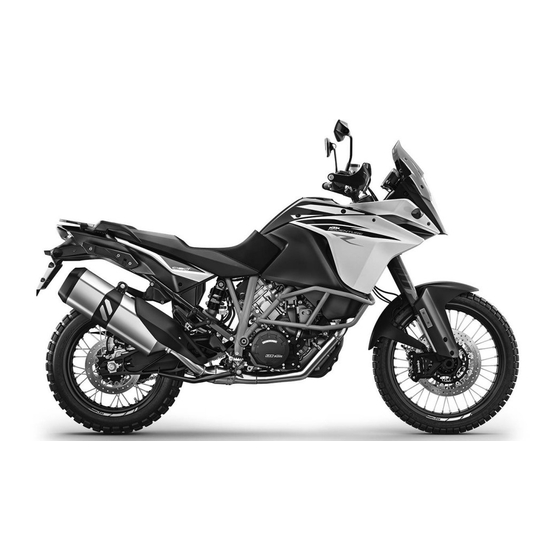

KTM 1090 Adventure R 2018 Setup Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
SETUP INSTRUCTIONS
2018
1090 Adventure R
Art. no. 3213803en

Advertisement

loading

Related Manuals for KTM 1090 Adventure R 2018

Summary of Contents for KTM 1090 Adventure R 2018

  • Page 1 SETUP INSTRUCTIONS 2018 1090 Adventure R Art. no. 3213803en...
  • Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descrip- tions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

  • Page 4: Means Of Representation

    1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 SETUP 2 Unpacking and setting up the vehicle – Remove the straps and box. S01880-10 – Remove the adhesive tape in the upper area of the motorcycle. A00227-10 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have fin- ished work on the vehicle.
  • Page 6 2 SETUP Guideline Hand guard screw 15 Nm (11.1 lbf ft) Hand guard fitting 6 Nm (4.4 lbf ft) Warning Danger of accidents A repaired handlebar poses a safety risk. If the handlebar is bent or straightened, the mate- rial becomes fatigued. The handlebar may break as a result.
  • Page 7 SETUP 2 (1090 Adventure R EU, 1090 Adventure R CN) – Mount the license plate holder. S01876-10 (1090 Adventure R US) – Bond the reflectors on the right and left side of the reflec- tor holder. – Mount the reflector holder on license plate bracket. –...
  • Page 8 2 SETUP – Mount the frame protector elements on both sides. – Position the left crash bar with frame protector and attach the clamp to the frame tube. Info Cover the components to protect them against damage. – Mount screw but do not tighten yet.
  • Page 9 Recharge the battery. ( p. 8) S01882-10 – Remove the remaining films. – Check the headlight setting. ( p. 12) – Refuel. ( p. 15) – Prepare the vehicle according to the specifications in the KTM Dealer.net for handover to the customer.
  • Page 10 3 WORK Installing the wind shield – Position wind shield – Mount and tighten screws Guideline Screw, wind shield 3.5 Nm (2.58 lbf ft) A00225-10 Removing the seat – Insert the ignition key in the seat lock and turn it clock- wise by 45 °.
  • Page 11 WORK 3 Warning Environmental hazard Batteries contain environmentally-hazardous materials. – Do not dispose of batteries as household waste. – Dispose of batteries at a collection point for used batteries. Warning Environmental hazard Hazardous substances cause environmental damage. – Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regulations.
  • Page 12 3 WORK Finishing work – Install the battery. ( p. 11) – Mount the seat. ( p. 8) – Set the time and date. Removing the battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep batteries out of the reach of children.

  • Page 13: Close The Cover

    WORK 3 Installing the battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep batteries out of the reach of children. – Wear suitable protective clothing and safety glasses. – Avoid contact with battery acid and battery gases. –...
  • Page 14 3 WORK Checking the headlight setting – Park the vehicle on a horizontal surface in front of a light- colored wall and make a mark at the height of the center of the low beam headlight. – Make another mark at a distance under the first marking.
  • Page 15 WORK 3 Removing the bottom triple clamp cover – Remove screws – Lower triple clamp cover slightly. M00557-10 – Disconnect plugs of the horn. – Detach temperature sensor – Remove the triple clamp cover. M00558-10 3.10 Installing the bottom triple clamp cover –...
  • Page 16 3 WORK 3.11 Opening the filler cap Danger Fire hazard Fuel is highly flammable. The fuel in the fuel tank expands when warm and can escape if overfilled. – Do not refuel the vehicle in the vicinity of open flames or lit cigarettes. –...
  • Page 17 WORK 3 3.12 Closing the filler cap – Fold down filler cap – Turn ignition key clockwise. S01754-10 – Push down the filler cap and turn the ignition key counter- clockwise until the tank lock closes. Warning Fire hazard Fuel is highly flammable, toxic and a health hazard.
  • Page 18 3 WORK In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel system. – Refuel only with clean fuel that meets the specified standards. Warning Environmental hazard Improper handling of fuel is a danger to the environment. –...

  • Page 19: Technical Data

    TECHNICAL DATA 4 Chassis tightening torques Nut, valve ISO 10V2 12 Nm (8.9 lbf ft) Loctite ® 2701™ Screw, combination switch, left 2 Nm (1.5 lbf ft) Screw, side stand switch 2 Nm (1.5 lbf ft) Rear fairing screw M5x12 3.5 Nm (2.58 lbf ft) Rear fairing screw M5x17...
  • Page 20 4 TECHNICAL DATA Screw, fuel pump 6 Nm (4.4 lbf ft) Screw, fuel tank 10 Nm (7.4 lbf ft) Screw, fuel tap 6 Nm (4.4 lbf ft) Screw, headlight 5 Nm (3.7 lbf ft) Screw, lower rear part 6 Nm (4.4 lbf ft) Screw, magnetic holder on side 6 Nm (4.4 lbf ft) Loctite...
  • Page 21 TECHNICAL DATA 4 Screw, bottom shock absorber M14x1.5 80 Nm (59 lbf ft) Thread greased Screw, top shock absorber M14x1.5 80 Nm (59 lbf ft) Thread greased Nut, swingarm pivot M19x1.5 130 Nm (95.9 lbf ft) Thread greased Nut, seat lock M22x1.5 4 Nm (3 lbf ft) Screw, steering head, top...
  • Page 22 5 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
  • Page 23 *3213803en* 3213803en 11/2017 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
