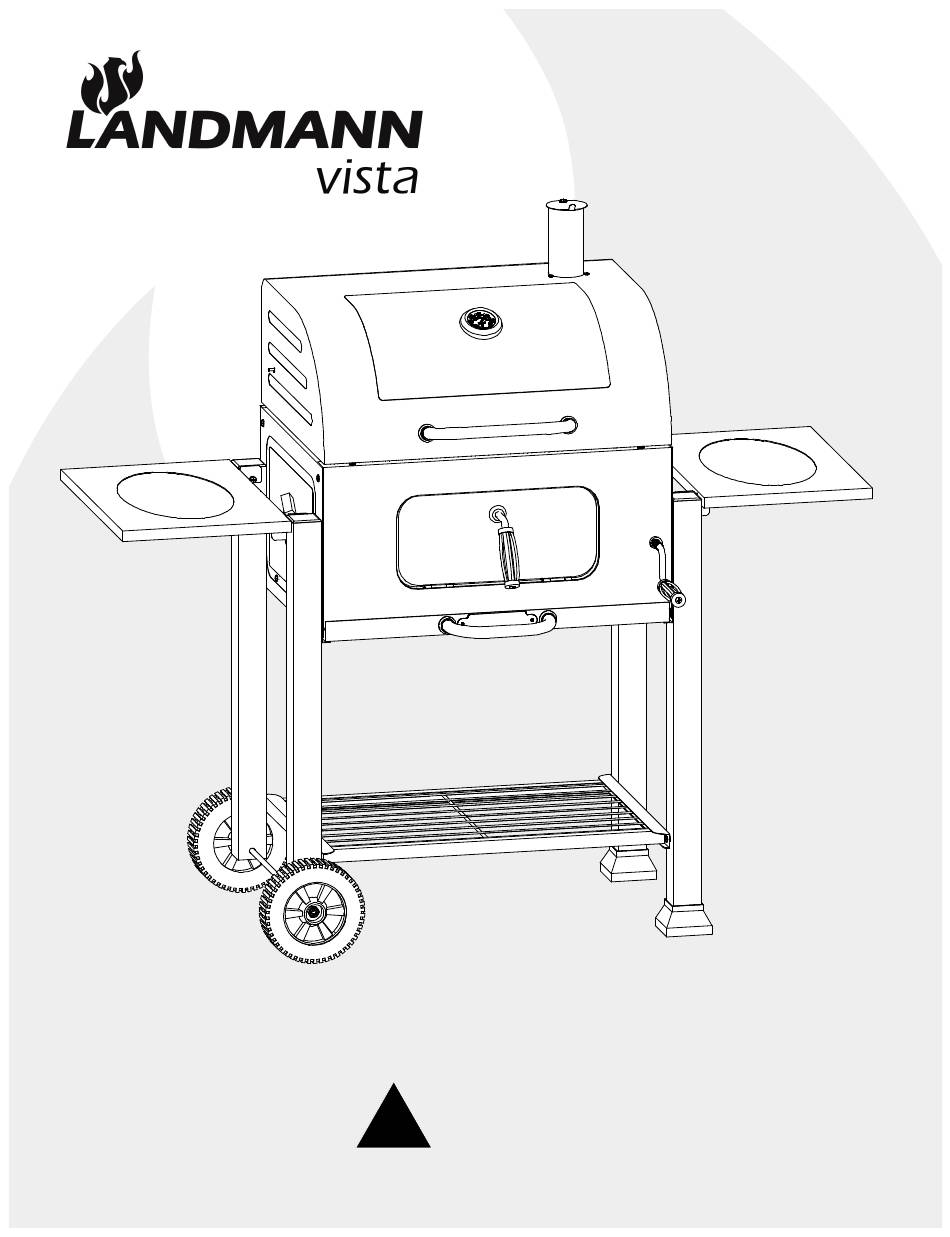

- Page 1 ® Smoky Mountain Series Vista Charcoal Grill Assembly and Operating Instructions for Model: 560200 VER. 2, 10/22/2012 PLEASE READ ALL RULES FOR SAFE OPERATION AND FOOD SAFETY BEFORE USING.
- Page 2 PAGE 2 READ FIRST! RULES FOR VISTA CHARCOAL GRILL SAFE OPERATION. • THE GRILL IS FOR OUTDOOR USE ONLY! • KEEP THE GRILL A MINIMUM OF 10 FT. AWAY FROM BUILDINGS, STRUCTURES, ANY FLAMMABLE ITEMS AND VEHICLES DURING USE. • NEVER USE THE GRILL UNDER COVERED PORCHES, AWNINGS, LOW HANGING TREE BRANCHES, TRELLIS, OR OVERHANGS OF ANY KIND.
- Page 3 PAGE 3 HARDWARE AND SMALL PART LISTING x 28 (28) M6 x 10MM (4) M6 x 35MM (4) M6 x 45MM (4) M5 x 16MM (1) M5 x 28MM BOLT BOLT BOLT BOLT STUD BOLT (3) M4 x 10MM (8) M6 x 18MM (2) HINGE (3) COTTER STUD BOLT...
-
Page 4: Part Listing
PAGE 4 PART LISTING (1) BACK PANEL (1) LID (1) LEFT PANEL (1) RIGHT PANEL (1) FRONT PANEL (1) CHARCOAL PAN (1) ASH TRAY ASSEMBLY (2) SIDE SHELVES (1) BOTTOM SHELF... - Page 5 PAGE 5 PART LISTING (1) LEG, FRONT RIGHT (1) LEG, BACK RIGHT (1) LEG, FRONT LEFT (1) LEG, BACK LEFT (2) CAST IRON (1) WARMING GRATE COOKING GRATES (1) WHEEL AXLE (2) WHEELS...
- Page 6 PAGE 6 PART LISTING (1) CHIMNEY (2) VENTS (2) LEG FEET (1) CHARCOAL PAN (1) CHARCOAL DOOR (1) CHIMNEY CAP ADJUSTMENT HANDLE ASSEMBLY HANDLE ASSEMBLY (1) LID HANDLE (1) ASH TRAY (1) CHARCOAL (2) LID (2) LID HANDLE DOOR HANDLE KEY UPPER HINGES LOWER HINGES...
- Page 7 PAGE 7 VISTA CHARCOAL GRILL ASSEMBLY INSTRUCTIONS A Phillips or plain screwdriver, adjustable wrench and needle nose pliers are needed for assembly. THE HOLE FOR THE WARMING GRATE IS Assembly time: 60 minutes TO THE BACK. STEP 1: ASSEMBLE THE BACK PANEL TO THE LEFT AND RIGHT PANELS Arrange the back panel [ B ], left [ C ] and right [ D ] panels as shown.
- Page 8 PAGE 8 VISTA CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 4: ASSEMBLE THE BOTTOM SHELF Align the bottom shelf [ H ] with the leg threaded inserts and assemble using (4) M6 x 10MM bolts [ BC ]. Tighten bolts securely. STEP STEP 5: ASSEMBLE THE WHEELS AND WHEEL AXLE Place wheel axle [ S ] into the left side...
- Page 9 PAGE 9 VISTA CHARCOAL GRILL MECHANISM ASSEMBLY INSTRUCTIONS ROD END STEP 6: ASSEMBLE THE CHARCOAL PAN ASSEMBLY ASSEMBLY Multiple assembly step. Place the charcoal pan assembly [ F ] into the cooking chamber making sure the rod end and mechanism are up. Align the assembly bars with the holes and assemble using (4) M6 x 10MM bolts [ BC ].
- Page 10 PAGE 10 VISTA CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 7: ASSEMBLE THE CHARCOAL PAN ADJUSTMENT HANDLE Thread the charcoal pan adjustment handle [ X ] into the threaded sleeve. Turn the handle and make sure the pan STEP moves up and down freely. Secure handle using (1) M5 x 28MM stud bolt [ BP ].
- Page 11 PAGE 11 VISTA CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 9: ASSEMBLE THE VENTS Assemble (2) vents [ V ] to the left and right panels of the cooking chamber. Use (1) M6 x 10MM bolt [ BC ] and (1) M6 locking hexnut [ BS ] per vent. Tighten but only enough to allow the vent to move and stay in position.
- Page 12 PAGE 12 VISTA CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP STEP 11: ASSEMBLE THE CHIMNEY Insert the chimney [ T ] from inside the lid through the hole. Assemble with (3) M4 x 10MM bolts [ BQ ] and (3) M4 hexnuts [ BR ]. Tighten bolts securely. Place the chimney cap [ Z ] on the chimney and assemble using (1) M6 x 10MM bolt [ BC ], (1) flat washer [ BM ]...
- Page 13 PAGE 13 VISTA CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 13: ASSEMBLE THE SIDE SHELVES Align side shelf in a vertical position as shown and assemble using (2) M6 x 18MM stud bolts [ BG ]. Make sure the shelf opening engages on the stud so the shelf can rotate.
- Page 14 PAGE 14 VISTA CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 15: ASSEMBLE THE WARMING GRATE Assemble the warming grate [ Q ] to the cooking chamber by aligning the rods and legs with holes. Assemble as shown. STEP DO NOT RETURN PRODUCT TO THE STORE. IF YOU HAVE QUESTIONS OR HAVE TROUBLE WITH ASSEMBLY, PLEASE CALL 1-877-347-4557 FOR ASSISTANCE.
- Page 15 PAGE 15 ADD 5 LBS. (MAX) OF CHARCOAL VISTA CHARCOAL GRILL OPERATING INSTRUCTIONS This grill becomes very hot and possibly the handles. Use caution working WARNING ! around the grill. Use mittens or oven gloves when opening the lid, access door, ash tray or adjusting the vents during use.
-
Page 16: Food Temperatures
PAGE 16 FOOD TEMPERATURES If you are unsure about when food is done, use this chart as a guide for measuring properly cooked meat temperatures. Use a high quality meat thermometer with probe to measure the meat temperature. Push probe into the thickest part of the meat to get an accurate measurement. - Page 17 ASH TRAY CLOSED UNTIL ALL ASHES HAVE COOLED. Congratulations on your purchase of the Vista Charcoal Grill! At Landmann USA, we strive to provide you with an easy to use, easy to assemble product. However, in the unlikely event your package...
-
Page 18: Limited Warranty
These warranties are limited to non-commercial residential use only. Product repair or replacement as provided under this warranty is your exclusive remedy. Landmann shall not be liable for any incidental or consequential damages or breach of any express or implied warranty on this product or any part thereof, except to the extent prohibited by applicable law.
