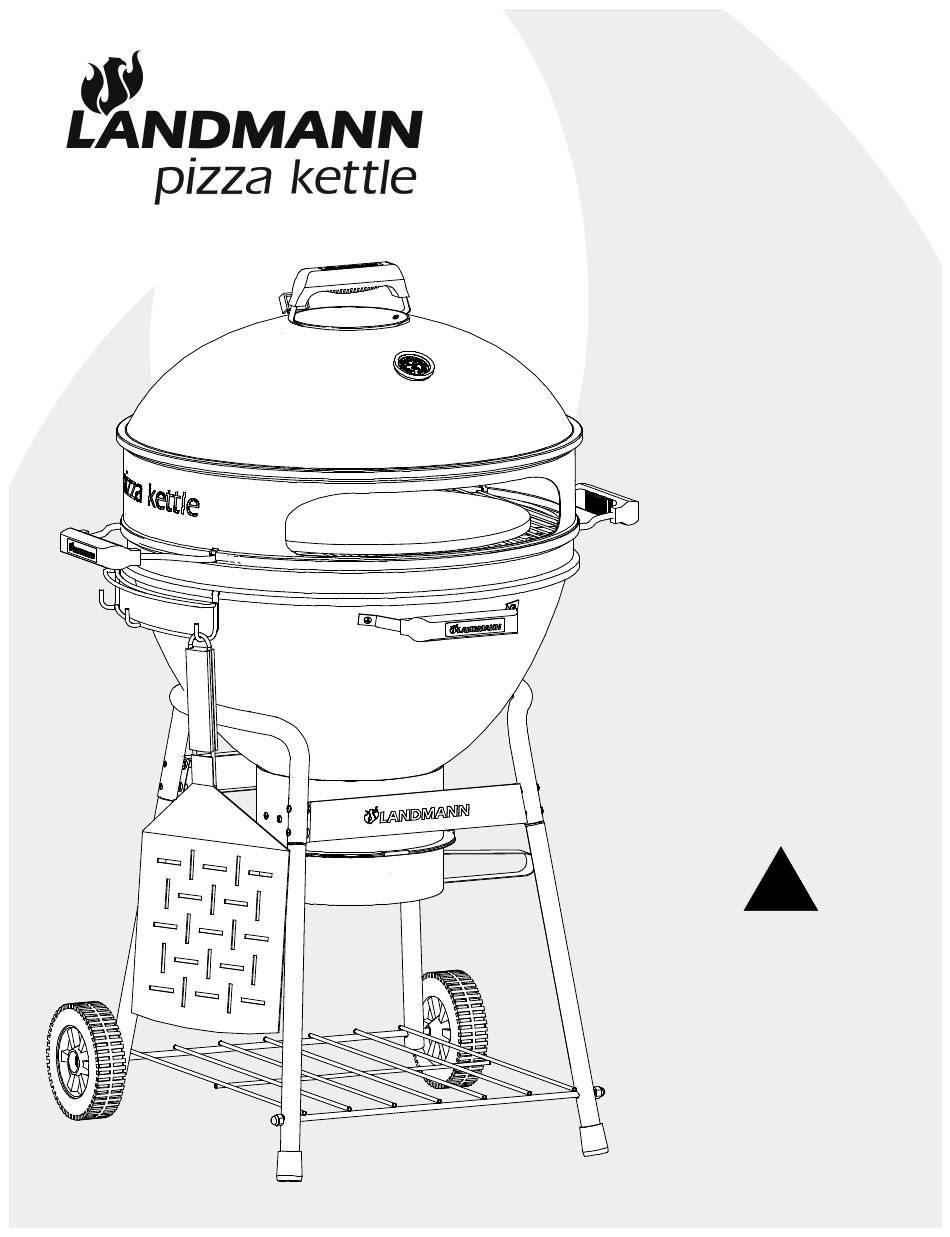

- Page 1 Pizza Kettle Charcoal Grill Assembly and Operating Instructions for Model: 525105 525110 VER. 5, 7/11/2014 PLEASE READ ALL RULES FOR SAFE OPERATION AND FOOD SAFETY BEFORE USING.
-
Page 2: Food Safety
PAGE 2 READ FIRST! RULES FOR PIZZA KETTLE CHARCOAL GRILL SAFE OPERATION. • WARNING! THE GRILL IS FOR OUTDOOR USE ONLY! • THE GRILL IS FOR ADULT USE ONLY. • WARNING! THIS GRILL GETS EXTREMELY HOT DURING USE! • DO NOT STORE LIGHTER FLUID OR OTHER FLAMMABLE USE EXTREME CAUTION AROUND THE GRILL. - Page 3 PAGE 3 HARDWARE AND SMALL PART LISTING (8) M6 x 35MM (8) M6 x 15MM (1) M6 x 12MM (6) M5 x 10MM (2) M4 x 12MM BOLT BOLT BOLT BOLT BOLT (3) M6 HEXNUT (2) M4 HEXNUT (6) M5 HEXNUT (2) M8 LOCKING (2) M8 CAPNUT HEXNUT...
-
Page 4: Part Listing
PAGE 4 PART LISTING FRONT (1) FIREBOWL (1) LID (1) LOCKING RING (1) COOKING GRATE (1) CHARCOAL GRATE (1) BOTTOM SHELF... - Page 5 PAGE 5 PART LISTING (2) TOP LEGS (2) FRONT LEGS (2) WHEEL LEGS (2) LEG BRACES (1) LID HANDLE (1) ASH CATCHER HOUSING AND VENT (2) WHEELS (1) LID HANDLE (1) ASH CATCHER HEAT SHIELD...
- Page 6 PAGE 6 PART LISTING (1) LID HANGER (1) TEMPERATURE (1) LID VENT GAUGE WITH WINGNUT (1) FIREBOWL (1) TOOL HOOK (1) PIZZA RING HANDLE (1) PIZZA STONE (1) PIZZA PEEL...
-
Page 7: Exploded View
PAGE 7 EXPLODED VIEW PARTS USED TO MAKE PIZZA WHEN NOT MAKING PIZZA, THESE PARTS ARE NOT USED AND THE GRILL OPERATES AS A CHARCOAL GRILL PIZZA KETTLE PARTS FIREBOWL ........1 . - Page 8 PIZZA KETTLE PAGE 8 ASSEMBLY INSTRUCTIONS A Phillips or plain screwdriver and adjustable wrench are needed for assembly. Assembly time: 45 minutes STEP 1: ASSEMBLE THE CART Arrange the parts as shown. Insert front legs [ G ] and wheel legs [ H ] into the top legs [ J ] as shown.
- Page 9 PIZZA KETTLE PAGE 9 ASSEMBLY INSTRUCTIONS STEP 3: ASSEMBLE THE FIREBOWL AND HANDLE Place the firebowl [ A ] on the cart making sure the holes for the firebowl handle is positioned correctly facing the front. Align the holes and assemble the firebowl using (4) 18MM washers [ PP ] and (4) M6 x 15MM bolts [ BB ].
- Page 10 PIZZA KETTLE PAGE 10 SLOTS ASSEMBLY INSTRUCTIONS STEP 5: ASSEMBLE THE LOCKING RING STEP 5: ASSEMBLE THE LOCKING RING AND TOOL HOOK Place the tool hook [ U ] anywhere on side of the firebowl [ A ] edge. Place the locking ring [ C ] onto the firebowl tabs.
- Page 11 PIZZA KETTLE PAGE 11 ASSEMBLY INSTRUCTIONS STEP 7: ADD GRATES SLOTS Place the charcoal grate [ E ] on the bottom of the firebowl. Place the cooking grate [ D ] in the locking ring [ C ] slots. STEP KEEP STONE MAXIMUM STEP 8: ADD STONE AND PIZZA RING 1 IN.
- Page 12 PIZZA KETTLE PAGE 12 ASSEMBLY INSTRUCTIONS STEP 9: PLACE ASH CATCHER AND LID Slide the ash catcher [ M ] onto the housing [ L ] and lock by turning right into slot. Place the lid [ B ] onto the pizza ring [ P1 ].
- Page 13 PAGE 13 OPERATING INSTRUCTIONS FOR PIZZA KETTLE This grill becomes EXTREMELY hot! Use caution working around the grill. The handles will become warm to hot over extended use. Use WARNING ! mittens or oven gloves when removing the lid, pizza ring, cooking grate or the pizza stone.
- Page 14 PAGE 14 OPERATING INSTRUCTIONS FOR PIZZA KETTLE This grill becomes EXTREMELY hot! Use caution working around the grill. The handles will become warm to hot over extended use. Use WARNING ! mittens or oven gloves when removing the lid, pizza ring, cooking grate or the pizza stone.
-
Page 15: Step 6: Cooking Pizza
PAGE 15 OPERATING INSTRUCTIONS FOR PIZZA KETTLE This grill becomes EXTREMELY hot! Use caution working around the grill. The handles will become warm to hot over extended use. Use WARNING ! mittens or oven gloves when removing the lid, pizza ring, cooking grate or the pizza stone. - Page 16 PAGE 16 OPERATING INSTRUCTIONS FOR CHARCOAL GRILL This grill becomes EXTREMELY hot! Use caution working around the WARNING ! grill. The handles will become warm to hot over extended use. Use mittens or oven gloves when removing the lid and cooking grate. CHARCOAL STEP 1: START THE CHARCOAL STEP 2: SETUP TO GRILL...
-
Page 17: Pizza Stone
PAGE 17 CLEANUP COOLED ASHES NEW STONE USED STONE PIZZA STONE GRILL CLEANUP After just one use the pizza stone will Clean the cooking grate using a good become darkened with spots and stains. quality grill brush. The buildup is easier This is normal! The appearance may to clean when its still hot. -
Page 18: Food Temperatures
PAGE 18 FOOD TEMPERATURES If you are unsure about when food is done, use this chart as a guide for measuring properly cooked meat temperatures. Use a high quality meat thermometer with probe to measure the meat temperature. Push probe into the thickest part of the meat to get an accurate measurement. - Page 19 CLOSED UNTIL ALL ASHES HAVE COOLED. Congratulations on your purchase of the Pizza Kettle Charcoal Grill! At Landmann USA, we strive to provide you with an easy to use, easy to assemble product. However, in the unlikely event your package...
-
Page 20: Limited Warranty
These warranties are limited to non-commercial residential use only. Product repair or replacement as provided under this warranty is your exclusive remedy. Landmann shall not be liable for any incidental or consequential damages or breach of any express or implied warranty on this product or any part thereof, except to the extent prohibited by applicable law.
