Page 2

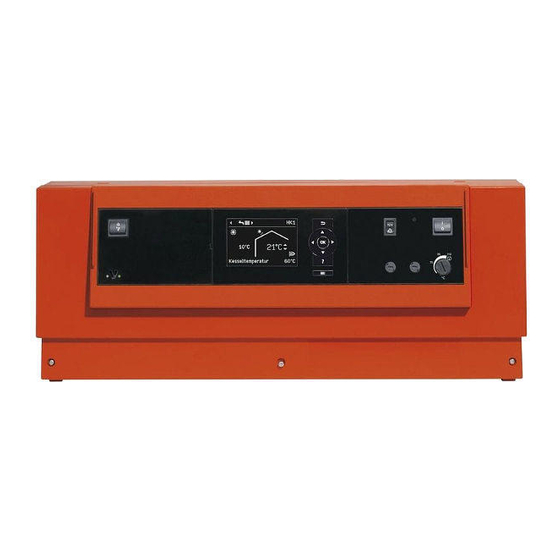

Vitotronic 300K GW6B for Vitocrossal 200 CM2 Three Application Configurations Single Boiler operation. OA reset with three Heating circuits + DHW + Ext dmd. Cascade + Master Cascade control for up to 8 Single Boiler boilers. ...
Page 3
Vitotronic 300K MW2C for Vitodens 200 Cascade Control Dedicated Cascade Cascade control for up to 8 boilers. OA reset with three Heating circuits + DHW + Ext dmd. Cascade Note: Menus in control may not appear exactly as shown in this presentation.
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Startup Wizard The control incorporates a Startup Wizard which speeds up the commissioning process. Language, Date & Time, Measuring Units and Basic Coding, can be set in the Wizard. The GW6B can be configured as one of three different control applications so the option of choosing the Application is also available.
Page 5
Vitotronic 300K MW2C Cascade Control Startup Wizard The control incorporates a Startup Wizard which speeds up the commissioning process. Language, Date & Time, Measuring Units and Basic Coding, can be set in the Wizard. Because the MW2C is a dedicated cascade it does not need the application option the GW6B control does.
Page 6
Vitotronic 300K GW6B & MW2C Language Selection In The Startup Wizard. Tap Language to access the language selection screen. Measuring units...
Page 7
Vitotronic 300K GW6B & MW2C Language Selection In The Startup Wizard. The control now has: North American English option. French Canadian French option. Tap the desired language to select. Tap OK to save the selection.
Page 8
Vitotronic 300K GW6B & MW2C Setting Date And Time In The Startup Wizard The Date and Time menu comes up in the Startup Wizard when the control is commissioned. Tap “Date and time” to enter the date and time parameters.
Page 9
Vitotronic 300K GW6B & MW2C Setting Date And Time From the home screen tap the following icons: 1. “Menu”. 2. “Settings”. 3. “Date / Time”. 4. “Date” or “Time”.
Page 10
Vitotronic 300K GW6B & MW2C Setting Date And Time From the home screen tap the following icons: 1. “Menu”. 2. “Settings”. 3. “Date / Time”. 4. “Date” or “Time”. 5. Set the required values. 6. Tap “OK” to confirm.
Page 11
Vitotronic 300K GW6B & MW2C Setting Measuring Units In The Startup Wizard The Measuring Units menu comes up in the Startup Wizard when the control is commissioned. Tap “Measuring units” to set the engineering units to Metric or Imperial.
Page 12
Vitotronic 300K GW6B & MW2C Setting Measuring Units Metric, for Celsius and kW. Imperial, for Fahrenheit and BTU. Measuring units...
Page 13
Single boiler (stand alone boiler). Cascade + Master (cascade control and master boiler control). Lag boiler (lag boiler in a system using the Viessmann Cascade). All options can be integrated into a BMS Measuring units Changing the “Application”...
Page 14
Vitotronic 300K GW6B & MW2C Basic Coding After the application type is set the control will reboot into the selected configuration. A prompt will appear asking if you want to make further changes. Selecting “Yes” will open up Coding level 1.
Page 15
Vitotronic 300K GW6B & MW2C Changing Settings After Commissioning Except the application type, The items set in the wizard during startup can be adjusted later in the settings menu. The Application type. This can only be changed by running the wizard again.
Page 16
Vitotronic 300K GW6B & MW2C Reopening The Startup Wizard The Startup Wizard can be accessed later under the “Service” menu by taping the “Startup” icon. NOTE: This will re-start the control to Factory Settings and the commisioning procedures will need to be re-entered.
Page 17
Vitotronic 300K GW6B Single Boiler Mode Screen Menus...
Page 18
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Single Boiler Mode Home Screen Real time Read Only parameters. These are parameters that can be read from the home screen. Current date and time Currently displayed heating circuit Outdoor temperature...
Page 19
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Single Boiler Mode Home Screen Real time Adjustable parameters. Tap to access the adjustable parameters. Operating Program Comfort mode Economy mode...
Page 20
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Single Boiler Mode Home Screen Other symbols may appear depending on system conditions. Frost Protection mode active (Snow Flake). Comfort Mode Schedule active (Sun). Reduced Mode Schedule active ( Moon).
Page 21
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Single Boiler Mode Home Screen Tap to select the heating circuit to view or adjust.
Page 22
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Information Regarding Faults When the fault first occurs, a larger fault flag will appear as a popup on the screen. Note: Same functions are available for MW2C Screen may appear different. Tap “Close” to acknowledge the fault.
Page 23
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Information Regarding Faults When an active fault is present the fault symbol will be displayed at the bottom of the screen. Note: Same functions are available for MW2C Screen may appear different.
Page 24
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Operating Program Tap to select the operating program for the selected heating circuit.
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Operating Program Each heating circuit (HC1, HC2, HC3 if connected) can be individually set to operate in one of three modes. Standby: Only frost protection is provided. DHW Only: DHW is active and parameters are disabled.
Page 26
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Comfort Mode Tap to Comfort mode for the selected heating circuit.(Formerly, “Party Mode”)
Page 27
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Comfort Mode Temperature Set Point This adjustment was replaces the Party Mode room set point from the previous generation controls. to adjust Each heating circuit has a similar setting. Tap “OK”.
Page 28
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Eco Mode Tap to Eco mode for the selected heating circuit. (formerly “Reduced mode)”.
Page 29
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Accessing The Menu Level From The Home Screen Single boiler mode home screen From the home screen tap the following icons: 1. “Menu”.
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Heating Menu From the menu screen tap the following icons: 2. “Heating”. Note: Same functions are available for MW2C Screen may appear different.
Page 31
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Selecting The Heating Circuit To Adjust Or View. From the menu screen tap the following icons: 2. “Heating”. 3. “Heating circuit 1”, “2”, or “3” as desired. Note: Same functions are available for MW2C...
Page 32
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Normal Room Temperature Set Point From the menu screen tap the following icons: 2. “Heating”. 3. “Heating circuit 1”, “2”, or “3” as desired. 4. “Set room temperature”. Note: Same functions are available for MW2C Screen may appear different.
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Reduced Room Temperature Set Point From the menu screen tap the following icons: 2. “Heating”. 3. “Heating circuit 1”, “2”, or “3” as desired. 4. “Set reduced room temp”.
Page 34
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting The Heating Time Program From the menu screen tap the following icons: 2. “Heating”. 3. “Heating circuit 1”, “2”, or “3” as desired. 4. “Time program heating”. Note: Same functions are available for MW2C Screen may appear different.
Page 35
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting The Heating Time Program From the menu screen tap the following icons: 2. “Heating”. 3. “Heating circuit 1”, “2”, or “3” as desired. 4. “Time program heating”. ...
Page 36
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting The Heating Time Program 7. Use Up down arrows for the start and end point of time phase one. The bar in the time diagram is adjusted. To cancel the setting of a time phase without accepting the changes, tap the return icon.
Page 37
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting The Heating Time Program 8. Select the icon for time phase 2. 9. Use Up down arrows for the start and end point of time phase 2. The bar in the time diagram is adjusted.
Page 38
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting The Heating Time Program 10. OK to confirm. The schedules as entered can be viewed. 11. Tap home icon to return to the home screen. Note: Same functions are available for MW2C...
Page 39
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Copying Days In The Heating Time Program You can copy a schedule into a different day to allow more efficient schedule creation. From the menu screen tap the following icons: 2. “Heating”.
Page 40
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Copying Days In The Heating Time Program 7. Tap “Tu” , “We”, “Th”, “Fr”. 8. OK to confirm. Note: Same functions are available for MW2C Screen may appear different.
Page 41
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Copying Days In The Heating Time Program Mo’s schedule is copied into Tu, We, Th. Fr. Note: Same functions are available for MW2C Screen may appear different.
Page 42
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting the Holiday Program From the menu screen tap the following icons: 2. “Heating” 3. “Heating circuit 1”, “Heating circuit 2” or “Heating circuit 3” as the required heating circuit.
Page 43
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting the Holiday Program From the menu screen tap the following icons: 5. Use to set the “Departure date” and “Return date” 6. OK to confirm The Holiday program allows for an extended period of Eco mode without the need to modify the normal day to day schedule.
Page 44
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting the Heating Curves From the menu screen tap the following icons: 2. “Heating”. 3. “Heating circuit 1”, “2”, or “3” as desired. 4. “Heating curve”. Note: Same functions are available for MW2C...
Page 45
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Adjusting the Heating Curves From the menu screen tap the following icons: 2. “Heating”. Note: 3. “Heating circuit 1”, “2”, or “3” as desired. Same functions are available for MW2C ...
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Set Point Temperature From the menu screen tap the following icons: 2. “Domestic Hot Water”. Note: Same functions are available for MW2C Screen may appear different.
Page 48
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Set Point Temperature From the menu screen tap the following icons: 2. “Domestic Hot Water”. 3. “Set DHW temperature”. Note: Same functions are available for MW2C Screen may appear different.
Page 49
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Set Point Temperature Tap the plus or minus icons to set the desired DHW temperature for comfort mode. Tap “OK”. Note: Same functions are available for MW2C Screen may appear different.
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Time Program From the menu screen tap the following icons: 2. “Domestic Hot Water”. 3. “DHW time program”. Note: Same functions are available for MW2C Screen may appear different.
Page 51
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Re-circ Pump Time Program From the menu screen tap the following icons: 2. “Domestic Hot Water”.”. 3. “DHW circ time program DHW”. Note: Same functions are available for MW2C...
Page 52
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Time Program Select the heating circuit you want the DHW to follow. Note: Same functions are available for MW2C Screen may appear different.
Page 53
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Time Program When default of “Automatic” is selected the DHW time schedule will follow the Heating Schedule but start 30 minutes before the beginning of the heating schedule start time. ...
Page 54
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Time Program To create a DHW time schedule that is different than the heating schedules: 4. “Individual”. 5. Tap “OK”. Note: Same functions are available for MW2C Screen may appear different.
Page 55
Vitotronic 300K GW6B for Vitocrossal 200 CM2 DHW Time Program Follow the same procedure as for setting the heating time schedules for the individual DHW time schedule. Note: Same functions are available for MW2C Screen may appear different.
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Information Menu From this menu you can read the status of various parameters in the control system. From the menu screen tap the following icons: 2. “Information”. The information is grouped into several sub-menu options.
Page 58
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Selecting An Information Sub Group To View Data From the menu screen tap the following icons: 2. “Information”. 3. Select the desired sub group. to view the various parameter.
Page 59
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Setting A Service Information Contact From the menu screen tap the following buttons: 2. “Information” 3. “Service contact details” Note: Same functions are available for MW2C Screen may appear different.
Page 60
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Setting A Service Information Contact Enter the details of the contact. Each text box is limited to 45 characters. Tap OK when complete. Repeat for the second line of data.
Page 61
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Setting A Service Information Contact Under Information the contractor can put their contact information in. This can be read by the customer for future reference. Note: Same functions are available for MW2C...
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Settings Level From the menu screen tap the following icons: 2. “Settings”. Note: Same functions are available for MW2C Screen may appear different.
Page 64
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Control Display Backlight Setting The Screen brightness can be adjusted from the Settings / Screen menu. From the menu screen tap the following icons: 2. “Settings”. 3. “Screen”. Note: Same functions are available for MW2C Screen may appear different.
Page 65
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Control Display Backlight Setting The Screen brightness can be adjusted from the Settings / Screen menu. From the menu screen tap the following icons: 2. “Settings”. 3. “Screen”. 4. “Brightness standby” “Brightness control”.
Page 66
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Control Display Backlight Setting The Screen brightness can be adjusted from the Settings / Screen menu. From the menu screen tap the following icons: 2. “Settings”. 3. “Screen”. 4. “Brightness standby” “Brightness control”.
Page 67
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Settings / Entering Custom Heating Circuit Names You can customize the long name of any heating circuit. The short form name i.e HC1 ,HC2, HC3 will remain unchanged. From the home screen tap the following icons: 1.
Page 68
Vitotronic 300K MW2C Cascade Control Settings / Entering Custom Heating Circuit Names From the home screen tap the following icons: 1. “Menu”. 2. “Settings”. 3. “Name for Main Floor Rads heating circ”. 4. Enter New Name. 5. Tap “OK”.
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level Further programming is located in the “Service” levels. This area is password protected so settings cannot be accidentally changed. From the menu screen tap the following icons: 2. “Service”.
Page 71
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level Enter the password to access the service levels. From the menu screen tap the following icons: 2. “Service”. 3. Enter “viservice” password. Note: Same functions are available for MW2C Screen may appear different.
Page 72
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level Enter the password to access the service levels. Note: Same functions are available for MW2C Screen may appear different. 4. Select the required sub menu group.
Page 73
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Diagnosis “Diagnosis’” sub menu. Note: Same functions are available for MW2C Screen may appear different.
Page 74
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Diagnosis Under this menu is information on: Sensors. Set points. Pumps commands. Brief Scans. (Displayed in “detailed” or ‘Code” layouts). Etc. Note: Same functions are available for MW2C...
Page 75
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Diagnosis / Brief Scan From the menu screen tap the following icons: 2. “Diagnosis”. 3. “Brief scan. Note: Same functions are available for MW2C Screen may appear different.
Page 76
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Actuator Test “Actuator test” (formerly, Relay test). Note: Same functions are available for MW2C Screen may appear different.
Page 77
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Actuator Test Under this menu, the various outputs can be driven on and off one output at a time without a call for there operation in the normal automatic sequence: ...
Page 78
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / System Configuration “System configuration”. Note: Same functions are available for MW2C Screen may appear different.
Page 79
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / System Configuration / Coding Level 1 “Coding level 1” Provides access to basic coding parameters. There are several blocks organized in subgroups as listed under Coding 1 in the service manual.
Page 80
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / System Configuration / Coding Level 1 “Coding level 1” Broken into several subgroups. Subgroups are laid out the same in the coding section of the manual. ...
Page 81
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / System Configuration / Coding Level 1 “Coding level 1” Screen shot of coding 1 address 00: Note: to adjust the value Same functions are available for MW2C ...
Page 82
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / System Configuration / Coding Level 2 “Coding level 2” Provides access to higher level coding parameters. This requires a second security password be entered. There are several blocks organized in subgroups as listed under Coding 2 in the service manual.
Page 83
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / System Configuration / Coding Level 2 “Coding level 2” password Enter “viexpert” to access “Coding level 2”. Note: Same functions are available for MW2C Screen may appear different.
Page 84
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / System Configuration / Coding Level 2 “Coding level 2” Broken into several subgroups. Subgroups are laid out the same in the coding section of the manual. ...
Page 85
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / System Configuration / Coding Level 2 “Coding level 2” Screen shot of coding 2 address 00: to adjust the value Tap “OK” to save changes Coding level 2 General...
Page 86
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Fault History “Fault history”. Note: Same functions are available for MW2C Screen may appear different.
Page 87
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Fault History Under this menu, the last 10 fault conditions are recorded in order of their appearance. If there were more than 10 faults since the last time the history was reset, the oldest is deleted and the newest fault is added to the list.
Page 88
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Service Functions “Service functions”. Note: Same functions are available for MW2C Screen may appear different.
Page 89
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Service Functions Under this menu. “Participant check”, is used to verify the existence and communication for the various LON participants in a LON enabled system. This check is run anytime a LON participant is added or removed from the system.
Page 90
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Startup “Start-up”. This starts the sequence to return the control to the Factory Default Startup Wizard. Note: Same functions are available for MW2C Screen may appear different.
Page 91
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Re-opening The Startup Wizard NOTE: This will re start the control to Factory Settings and the commisioning procedures will need to be re-entered. All data and settings from a previous commisioning session will be lost.
Page 92
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Close “Close”. The control will automatically exit the service mode approximately 30 minutes after the last keystroke. You can exit service mode manually if you wish by tapping “close” from the “Service main menu”...
Page 93
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Service Level / Close Then tap OK. Note: Same functions are available for MW2C Screen may appear different.
Page 95
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Startup Wizard. Setting Slave Boiler Mode Select the “Slave” option from the “Application” icon. Measuring units slave...
Page 96
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Slave Mode Configuration Home Screen The slave mode home screen shows only the information for the slave boiler. Header Actual boiler water temperature Set boiler water temperature Boiler number in the cascade...
Page 97
Vitotronic 300K GW6B for Vitocrossal 200 CM2 Slave Mode Configuration Slave Boiler Main Screen The various menu screens will have fewer options because system functions are handled by the cascade control. The menus that are shown will function similarly to the other configuration...
Page 99
Vitotronic 300K GW6B & MW2C Startup Wizard. Setting Cascade Mode The settings that are set in the Wizard can also be changed later in the various menus within home screen in the control. Vitotronic 300K GW6B Vitotronic 300K MW2C...
Page 100
Vitotronic 300K GW6B & MW2C Master + Cascade, Home Screen All boilers configured in the cascaded system will be displayed on the home screen. Use the icon to see boilers that do not fit on the main display.
Page 101
Vitotronic 300K GW6B & MW2C Master + Cascade, Home Screen For GW6B, when the control is set for cascade operation . The Cascade control is the Master boiler control. The master boiler does not have to be the lead boiler.
Page 102
Vitotronic 300K GW6B & MW2C Understanding The Home Screen Boiler Icons The dynamic boiler icon will display different information under varying conditions Boiler is running, Boiler ready but not Boiler is Output is 2,047 being called by Unavailable MBTUh cascade...
Page 103
Vitotronic 300K GW6B & MW2C Changing The Boiler Sequence Manually Boiler sequence is now available from after tapping the “Menu” button on the home screen.
Page 104
Vitotronic 300K GW6B & MW2C Changing The Boiler Sequence Manually From the menu screen tap the following buttons: 2. “Boiler sequence” 3. Select the required boiler sequence and confirm with “OK”. The boiler sequence is shown here.
Vitotronic 300K GW6B for Vitocrossal 200 CM2 BMS Integration Vitotronic 300 K GW6B can incorporate integration into BMS system. Up to 8 Vitotronic 300 K GW6B’s Slave Cascade Versatronik 505, Vitogate 300 Gateways Slave...
Page 106
Vitotronic 300K MW2C Cascade for Vitodens 200 BMS Integration Vitotronic 300 K MW2C can incorporate integration into BMS system. Up to 8 Vitodens 200 with Vitotronic 300 MW2C Cascade Versatronik 505, Vitogate 300 Gateways...
