RUGGEDCOM RX1512
Installation Guide
RUGGEDCOM RX1500PN LM E02
RUGGEDCOM RX1500PN LM D02

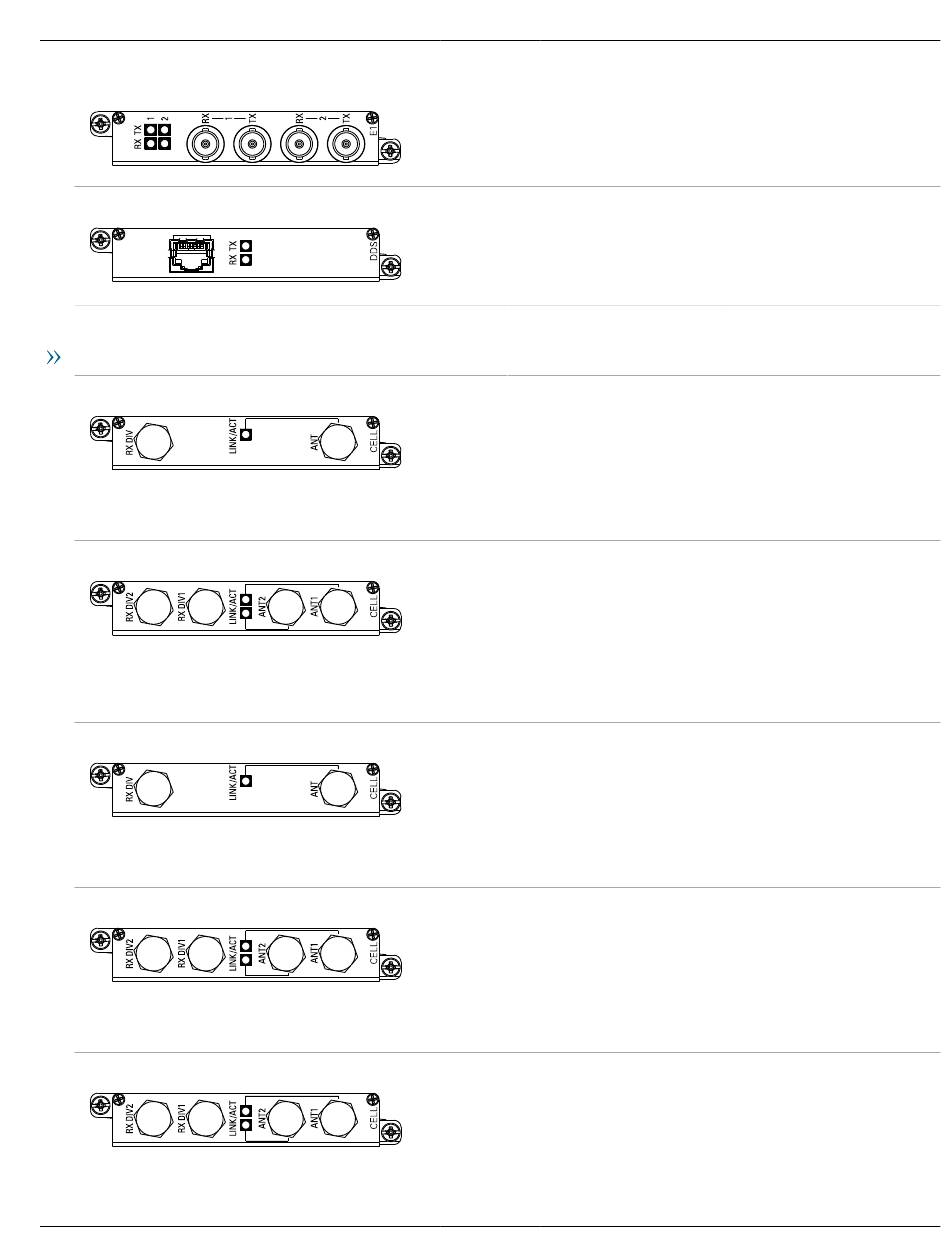

Cellular Modem Modules

RUGGEDCOM RX1500PN LM W11
RUGGEDCOM RX1500PN LM W12
RUGGEDCOM RX1500PN LM W21
RUGGEDCOM RX1500PN LM W22
RUGGEDCOM RX1500PN LM W32
Available Modules
Specifications
Interface: E1
Ports: 2
Port Type: BNC (75 Ω)
Specifications
Speed: 56 kbps (Master/Slave) or
64 kbps (Slave)
Ports: 1
Port Type: RJ48S
Specifications
Services: GSM/EDGE/HSPA+
Region: North America (AT&T)
Port Type: 50 Ω SMA
Antennas: 1 x GSM/EDGE/HSPA+,
1 x Receive Diversity (Secondary)
SIM: Dual Mini-SIM (2FF)
Specifications
Services: GSM/EDGE/HSPA+
Region: North America (AT&T),
European Union, Australia
Port Type: 50 Ω SMA
Antennas: 2 x GSM/EDGE/HSPA+,
2 x Receive Diversity (Secondary)
SIM: Dual Mini-SIM (2FF)
Specifications
Services: EVDO Rev A
Region: North America (Verizon)
Port Type: 50 Ω SMA
Antennas: 1 x EVDO Rev A, 1 x
Receive Diversity (Secondary)
SIM: Dual Mini-SIM (2FF)
Specifications
Services: EVDO Rev A
Region: North America (Verizon)
Port Type: 50 Ω SMA
Antennas: 2 x EVDO Rev A, 2 x
Receive Diversity (Secondary)
SIM: Dual Mini-SIM (2FF)
Specifications
Services: EVDO Rev A
Region: North America (Verizon)
Port Type: 50 Ω SMA
Chapter 4
Modules
Article Numbers (Standard)
6GK6015-0AL20-0HC0
(Standard)
6GK6015-0AL20-0HC1
(Conformal Coated)
Article Numbers (Standard)
6GK6015-0AL20-0LB0 (Standard)
6GK6015-0AL20-0LB1
(Conformal Coated)
Article Numbers (Standard)
6GK6015-0AL20-0WB0
(Standard)
6GK6015-0AL20-0WB1
(Conformal Coated)
Article Numbers (Standard)
6GK6015-0AL20-0WC0
(Standard)
6GK6015-0AL20-0WC1
(Conformal Coated)
Article Numbers (Standard)
6GK6015-0AL20-0WD0
(Standard)
6GK6015-0AL20-0WD1
(Conformal Coated)
Article Numbers (Standard)
6GK6015-0AL20-0WE0
(Standard)
6GK6015-0AL20-0WE1
(Conformal Coated)
Article Numbers (Standard)
6GK6015-0AL20-0WF0
(Standard)
6GK6015-0AL20-0WF1
(Conformal Coated)
23
