BOON EDAM Transpalock 900 Instruction Card

Transpalock 900

Maintenance

Caution! Do not use water near the drive unit and controls.
Warning! Switch the power supply off before carrying out any maintenance
and / or other work on the Transpalock.
Weekly: Clean the stainless steel surfaces with a damp cloth.
Monthly: Clean the stainless steel surfaces with a damp cloth and soft soap.
Annually: The Transpalock needs to be serviced at least once a year. This service and any repairs
should be performed by Boon Edam B.V. or your dealer.
Dealer:
For further information, consult the operating manual.
Boon Edam B.V. Postbox 40, 1135 ZG Edam Holland.
I n s t r u c t i o n C a r d
T r a n s p a l o c k 9 0 0

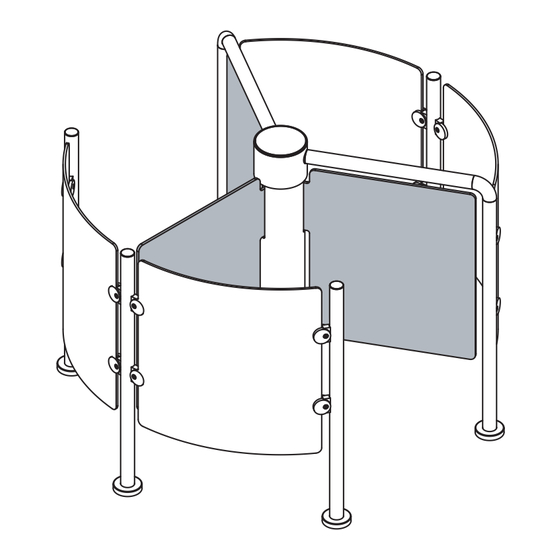

Transpalock 900
Safety- and Operati ng in structions
Maintenance

Explanation of the symbols

Door set locked in
closed position
Door set rotates clockwise or
anti-clockwise for 120°
Door set rotates clockwise or
anti-cockwise manually / Failsafe
No power supply
Power supply
Acoustic pulse signal*
Authorisation to allow a person
in or out*
Check the emergency- and safety devices and the general operation
of the Transpalock daily!
Version : 2014/01/22
Issue : TP900-INS-UK
Blocked in and out*
Alarm with acoustic signal*
Alarm*
ALARM
Door set rotates continuously clockwise or
anti-clockwise
Push & Go clockwise or anti-clockwise*
Door set brakes
Door set is locked
Door set is unlocked
Option
