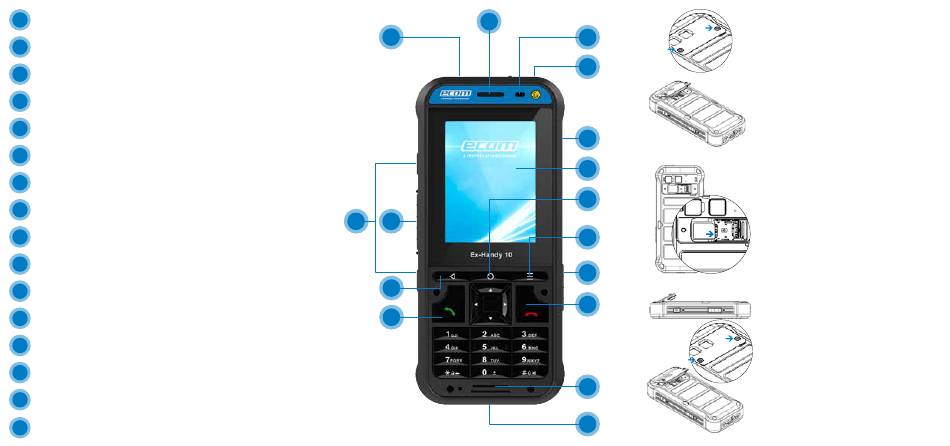

Pepperl+Fuchs ecom Ex-Handy 10 Quick Start Manual page 2

1
Receiver
2
Proximity/Light sensor
3
Alarm key
4
Power key
5
Touchdisplay
6
Home key
7
Options key
8
Camera key
9
End Call/Reject
10
Loudspeaker
11
Magnetic USB port
12
Call/Accept
13
Back key
14
Volume keys
15
PTT key
16
Headset port
1
16
14
15
13
12
2
3
4
5
6
nano-
7
SIM
8
9
10
11
How to insert the nano-SIM card
Step 1
To insert the nano-SIM card
unscrew the two cover screws in
a counter clockwise direction and
remove the SIM card cover.
Please use the screwdriver Torx
T8 provided with the device.
Step 2
Insert the nano-SIM card with
the gold-colored contacts facing
downwards by pushing it upward
in the designated slot.
Step 3
Reattach the SIM card cover
and screw down the two cover
screws in a clockwise direction.
Please use the screwdriver Torx
T8 provided with the device and
ensure not to overtighten the
screws.
