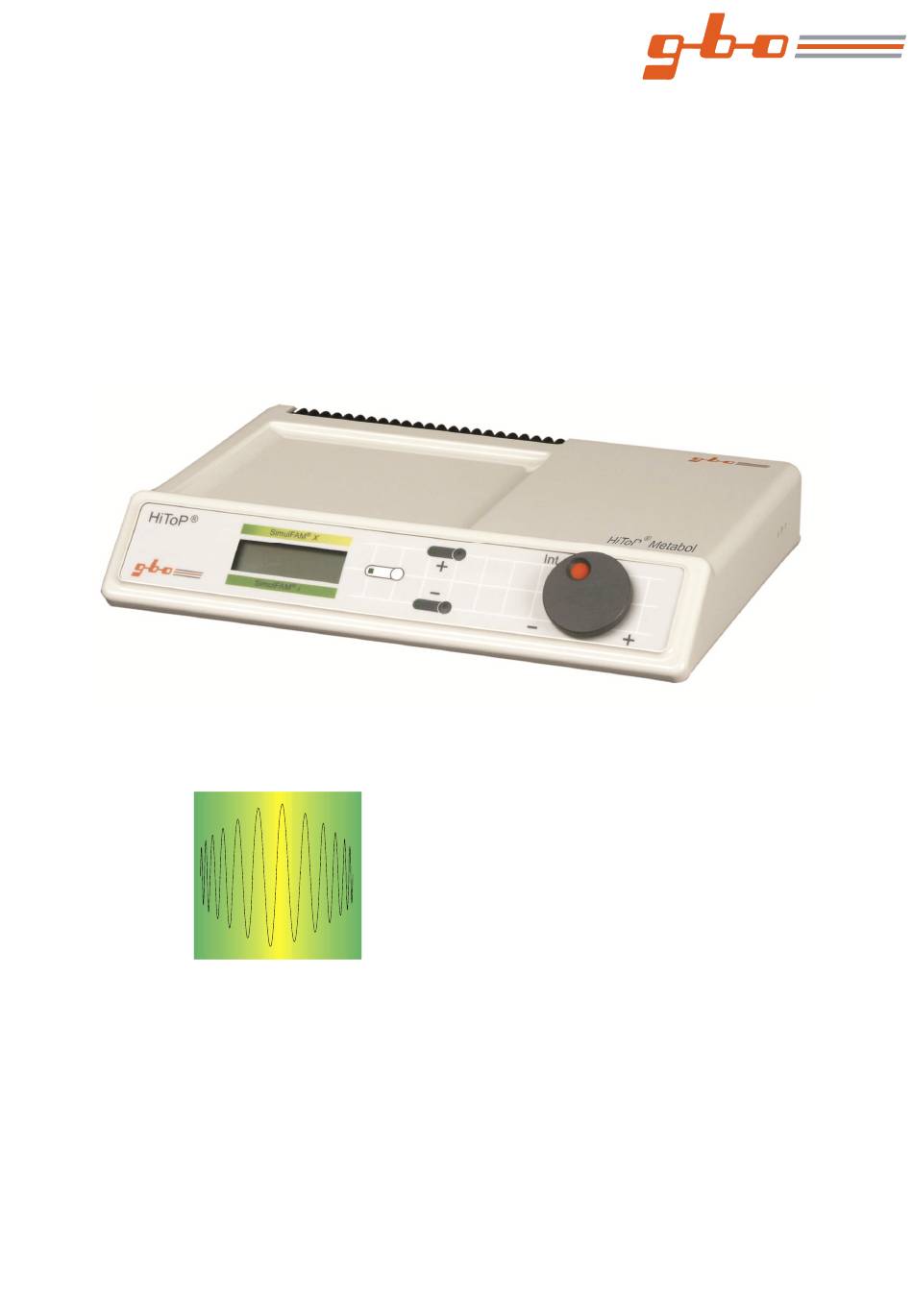

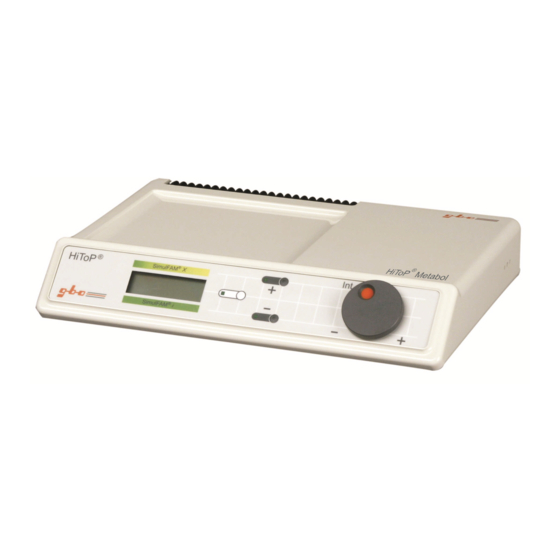

- Page 1 High Tone Power Therapy Device ® HiToP Metabol User Manual...
- Page 2 ® HiToP Metabol gbo Medizintechnik AG has taken care in preparation of this manual, but makes no expressed or implied warranty of any kind and assume no responsibility for errors or omissions. All rights reserved. No part of this manual may be reproduced in any form or by any means (electronic, mechanical, or otherwise) without the prior written permission of the gbo Medizintechnik AG.
- Page 3 ® HiToP Metabol Warnings and safety precautions Warning! Warnings which have to be observed by all means! Caution! Observe the instructions for use ! Note! Information which facilitates the work. Version 1.4 gbo Medizintechnik AG...
-
Page 4: Table Of Contents
6 MAINTENANCE..................18 6.1 Safety controls ................18 6.2 Cleaning, disinfection and care.............18 6.2.1 Cleaning the device ..............18 6.2.2 Cleaning Electrodes..............19 7 EXPLANATION OF THE SIGNS USED..........19 8 TECHNICAL DATA ................20 9 ACCESSORIES ..................21 ERROR MESSAGES ...............22 Version 1.4 gbo Medizintechnik AG... -
Page 5: Introduction
In doing so it provides an alternative to medicinal, physical and operative therapies that have so far proved to have been unsatisfactory, risky, associated with side-effects and even unsuccessful, and planned surgical treatment. Version 1.4 gbo Medizintechnik AG... -
Page 6: Operating The Hitop Unit
2.1.2 Display The device is equipped with a . There, clear notes are provided for Graphic display the starting of the programmed therapies. There, the parameters of the selected type of current are indicated. Version 1.4 gbo Medizintechnik AG... -
Page 7: Softkey
It is furnished in the form Intensity regulator of a rotor pulse generator. The current increases by turning right (in direction) and is reduced by turning left (in - direction). The numerical value is shown on the display. Version 1.4 gbo Medizintechnik AG... -
Page 8: Short Instructions
We recommend to treat both knees at the same time since the healthy knee is stressed more with patients with arthrosis. According to the scheme shown above, fix the electrodes on the other knee. Version 1.4 gbo Medizintechnik AG... - Page 9 At the end of the treatment time (60 minutes) the therapy is automatically terminated. As shown on the picture, sit down comfortly. During the entire therapy you will notice a comfortable prickle in both knees. Version 1.4 gbo Medizintechnik AG...
-
Page 10: Start Of Operation
230 V. If needed, the device can be switched over to the following supply voltages: 230 V (standard) 115 V Irrespective of the adjusted supply voltage, the device is appropriate for power frequencies of 48 to 62 Hz. Version 1.4 gbo Medizintechnik AG... -
Page 11: Voltage Change-Over And Fuses
High Tone Therapy with the mains cable to a shockproof socket. The device is switched on by the mains switch at the back of the device. This inhibits erroneous, unintended disconnection of the device during normal operation. Version 1.4 gbo Medizintechnik AG... -
Page 12: Basic Settings
In the language setting you can select between German, English and Russian language. Language ENGLISH With the arrow keys you can choice the language. By pressing the white softkey you store the value to the non-volatile memory. Version 1.4 gbo Medizintechnik AG... -
Page 13: Important Notes And Safety Precautions
Do not connect other persons with the electrodes. Keep the unit away from children. In case of all recognizable failures immediately contact gbo Medizintechnik AG, or one of the service agencies authorized by gbo Medizintechnik AG. ... -
Page 14: Therapy
6. The therapy starts. The therapy timer is shown in the display and decreases in steps of seconds. 7. With the white softkey-button you can select between the the overview display and the detailed view. All values shown on the display are examples! Version 1.4 gbo Medizintechnik AG... -
Page 15: Detail View
No contact of the distribution cable to one of the electrodes The released power (P) is the product of voltage and current and gives some information about the released energy for one treatment. *) All values shown on the display are examples! Version 1.4 gbo Medizintechnik AG... -
Page 16: Duration And Frequency Of Treatment
The duration of treatment is pre-set to 60 minutes. In the basic settings the treatment time can be set from 30 to 60 minutes. Treatment of osteoarthrosis can be executed three times a week. After about 10 treatment sessions, an improvement should be noticeable. Version 1.4 gbo Medizintechnik AG... -
Page 17: Electrodes
If this cannot be avoided, apply zinc ointment or vaseline to cover the affected parts of the skin. The electrodes must adhere completely to the skin in order to avoid excessive local current density. Otherwise there can occur erythemas, and sometimes even burns. Version 1.4 gbo Medizintechnik AG... -
Page 18: Maintenance
It is recommended to use disinfectants on aldehyde basis. The device is suited neither for heat sterilization nor sterilization with gases. Version 1.4 gbo Medizintechnik AG... -
Page 19: Cleaning Electrodes
CE Conformity sign. Caution! Observe the instructions for use! Application part ungrounded, safety degree type This product complies with WEEE Directive 2002/96/EG (waste electrical and electronic equipment). Separate collection for electrical and electronic equipment. Version 1.4 gbo Medizintechnik AG... -
Page 20: Technical Data
Relative air humidity < 90 %, none condensing Types of current: Sinusoidal currents of 4096 - 32768 Hz gbo Medizintechnik AG reserves the right to modify the design and specification without prior notice. Version 1.4 gbo Medizintechnik AG... -
Page 21: Accessories
Rubber electrodes 80 x 120 (2 Stück) 017-0-0047 Velctro straps 70 cm (2 pieces) (for rubber electrodes) 011-0-0033 Aloe Vera contact spray, bottle of 473 ml 002-2-0073 Case with interior part for HiToP Metabol 011-0-0017 User’s manual HiToP Metabol 017-7-0117 Short form instruction HiToP Metabol 017-7-0127 ... -
Page 22: Error Messages
Error 4: open circuit: This error message appears, when there is no current flow. This can be caused by a cable defect or an error in the electrode placement. Version 1.4 gbo Medizintechnik AG... - Page 23 You find more EMC comments in the Chapter “Warnings and Safety Precautions” of this manual as well as in the Technical Information on the next two pages. Version 1.4 gbo Medizintechnik AG...
- Page 24 IEC 61000-4-8 location in a typical commercial or hospital environment. Note: U is the a.c. mains voltage prior to application of the test level. Version 1.4 gbo Medizintechnik AG...
- Page 25 Rated power of the Separation distance according to the tranmission frequency (m) transmitter (W) 150 kHz to 80 80 MHz to 800 800 MHz to 2.5 GHz d=2.3P d=1.2P d=1.2P 0,01 0.12 0.12 0.23 0.38 0.38 0.73 Version 1.4 gbo Medizintechnik AG...
- Page 26 Supply change-over 12 Display 7 Supply voltage 11 Switch on the device 12 Function keys 8 Fuses 12 Transport of the device 11 Graphic display 7 warning 12, 18, 20 Warning 11 Warnings 11 Art.-No. 017-7-0117 Version 1.4 gbo Medizintechnik AG...
