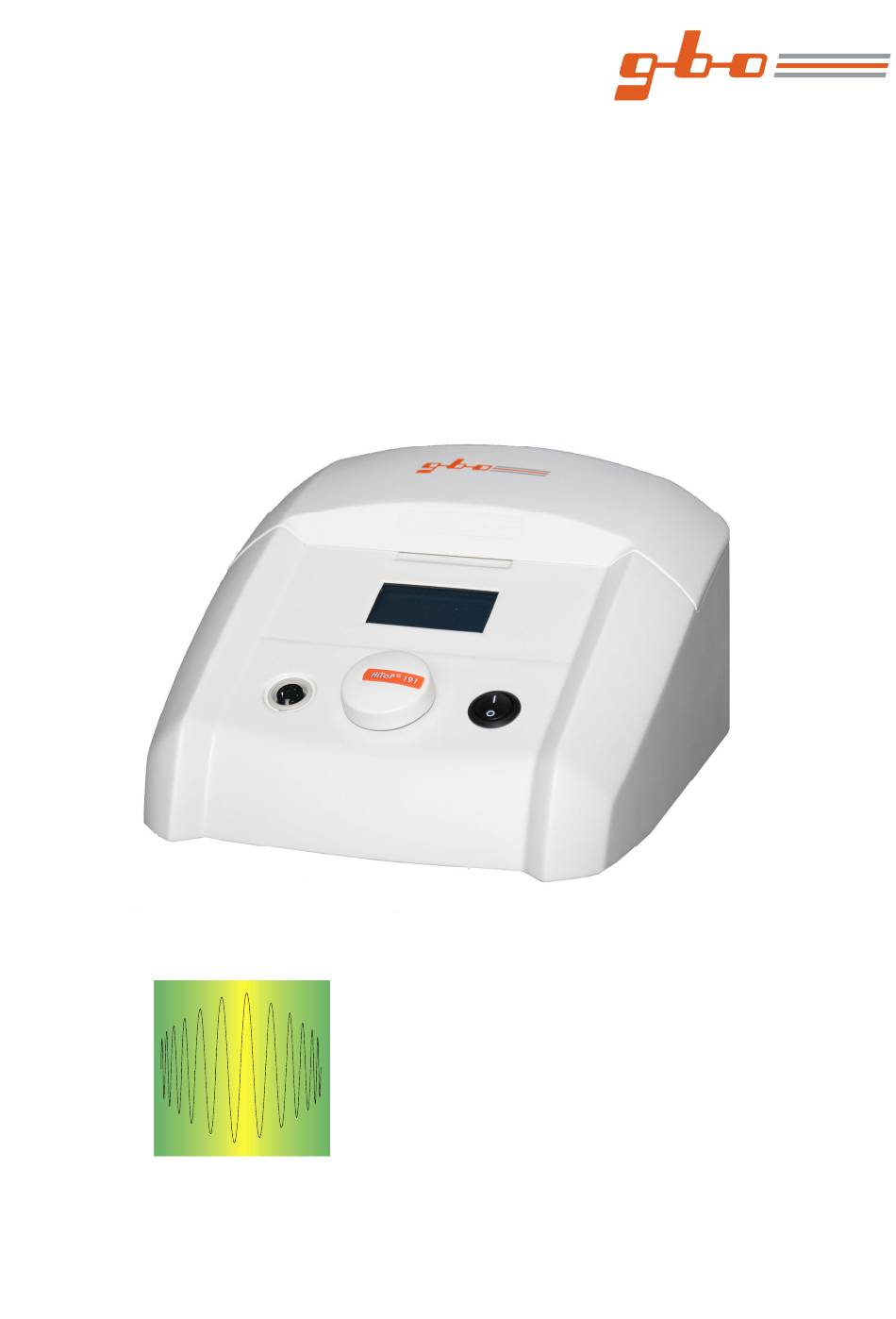

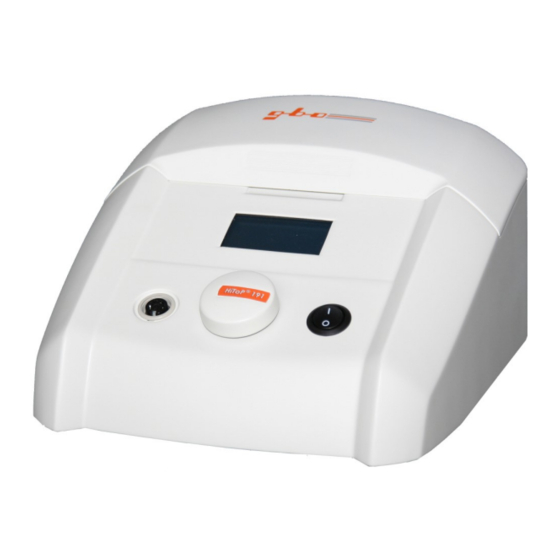

- Page 1 High Tone Power Therapy Device ® HiToP User Manual...
- Page 2 ® HiToP gbo Medizintechnik AG has taken care in the preparation of this manual. However, the company does not give any expressed or implied warranty nor do we assume any responsibility for errors or omissions. All rights reserved. No part of this manual may be reproduced in any form or by any means (electronic, mechanical, or otherwise) without the prior written permission of gbo Medizintechnik AG.
-
Page 3: Table Of Contents
Cleaning Electrodes ................. 20 7 EXPLANATION OF THE USED SIGNS..........21 8 TECHNICAL DATA ................22 9 ACCESSORIES ..................23 ERROR MESSAGES ................24 10.1 Error messages on the display ............24 2008 - 2011 Version 2.2 gbo Medizintechnik AG... - Page 4 APPENDIX..................25 INDEX ....................28 Warnings and safety precautions Warning! Warnings which have to be observed by all means! Caution! Observe the instructions for use! Note! Information that will facilitate your work. 2008 -2011 Version 2.2 gbo Medizintechnik AG...
-
Page 5: Introduction
3 octaves, the range of 4096 – 32768 Hz. The therapy frequency is scanned with a defined frequency. This method is called ® SimulFAM for Simultanous Frequency Amplitude Modulation. 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 6: What Is High Tone Power Therapy
If you use the unit commercially, it is subjected to the Medical Devices Operator Ordinance. In this case you as the user are legally obligated to execute safety controls as described in Chapter 6.1. 2008 -2011 Version 2.2 gbo Medizintechnik AG... -
Page 7: Operating Concept
To find the wanted intensity you may possibly turn the regulator clockwise for more than one rotation. is also used as modification regulator for the basic settings. Intensity regulator (chapter 3.4). 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 8: Short Instructions
If you want interrupt or stop the therapy, you can decrease the intensity to 0 by turning the Intensity regulator counterclockwise. After use the electrodes can be cleaned with a wet cloth. 2008 -2011 Version 2.2 gbo Medizintechnik AG... - Page 9 ® HiToP ® Figure 3: therapy with the HiToP 2008 - 2011 Version 2.2 gbo Medizintechnik AG...
-
Page 10: Start Of Operation
On the top of the device you find an integrated box for the accessory. When you open the cover, you can put the accessories (electrodes, velcro band and patient cable) in this box. 2008 -2011 Version 2.2 gbo Medizintechnik AG... -
Page 11: Preparing The Electrodes
The side of the velcro band, where the washing instructions are seen, must face upwards and be placed 5 – 10 cm over the edge of the electrodes. The velcro fastener has to face upwards on this side. 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 12: Basic Settings
The treatment time can be set in steps of 5 minutes between 30 and 60 minutes. Treatment time 55 min. With the you can modify the treatment time to the requested value. By Intensity regulator pressing the you store the value to the non-volatile memory. Intensity regulator 2008 -2011 Version 2.2 gbo Medizintechnik AG... -
Page 13: Language
With the Exit menu setting you can choose the therapy mode by pressing the button of and start the therapy program by adjusting the intensity (see chapter Intensity regulator 4.2 treatment details). 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 14: Important Notes And Safety Precautions
Do not connect other persons with the electrodes. Keep the unit away from children. In case of all recognizable failures immediately contact gbo Medizintechnik AG, or one of the service agencies authorized by gbo Medizintechnik AG. ... -
Page 15: Therapy
Intensity regulator muscle movement. 5. On the display the following message appears: Time: 28:21 This shown display is only for example! Int: 160 mA Figures may differ in your therapy! 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 16: Display Details
A common value for muscle contraction is between 150 – 200 mA. This setting should result in a contraction of both thights, visible and noticable by the patient. 2008 -2011 Version 2.2 gbo Medizintechnik AG... -
Page 17: Duration And Frequency Of Treatment
Evaluate when the pain between the treatment comes back and increase the treatment interval. With this method you can evaluate your personal optimum treatment interval . 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 18: Electrodes
The electrodes must adhere completely to the skin in order to avoid excessive local current density. Otherwise there can occur erythemas, and sometimes even burns. 2008 -2011 Version 2.2 gbo Medizintechnik AG... -
Page 19: Maintenance
Check of all functions according to the user manual. Note! Private users do not obligate to the duties mentioned above. The Medical Devices Operator Ordinance is not valid for countries outside EU. 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 20: Cleaning, Disinfection And Care
Dry the electrodes with a cleaning tissue or let them air-dry. Note!: The conductivity of the electrodes is optimized by using a big part of graphite. Therefore, while using and also while cleaning the electrodes black color may come off. 2008 -2011 Version 2.2 gbo Medizintechnik AG... -
Page 21: Explanation Of The Used Signs
Caution! Observe the instructions for use! Application part ungrounded, safety degree type This product complies with WEEE Directive 2002/96/EG (waste electrical and electronic equipment). Separate collection for electrical and electronic equipment. 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 22: Technical Data
Relative air humidity < 90 %, none storage: condensing Types of current: Sinusoidal currents of 4096 - 32768 Hz gbo Medizintechnik AG reserves the right to modify design and specification without prior notice. 2008 -2011 Version 2.2 gbo Medizintechnik AG... -
Page 23: Accessories
017-7-0138 User’s manual HiToP 191 in english 017-7-0139 Short form instruction HiToP 191 in english Note! Use gbo original accessories only to guarantee the safe function of the unit. 2008 - 2011 Version 2.2 gbo Medizintechnik AG... -
Page 24: Error Messages
Also the ventilation slots on the bottom of the unit should not be covered. 2008 -2011 Version 2.2 gbo Medizintechnik AG... - Page 25 You find more EMC comments in the Chapter “Warnings and Safety Precautions” of this manual as well as in the Technical Information on the next two pages. 2008 - 2011 Version 2.2 gbo Medizintechnik AG...
- Page 26 IEC 61000-4-8 location in a typical commercial or hospital environment. Note: U is the a.c. mains voltage prior to application of the test level. 2008 -2011 Version 2.2 gbo Medizintechnik AG...
- Page 27 Separation distance according to the tranmission frequency (m) transmitter (W) 150 kHz to 80 80 MHz to 800 800 MHz to 2.5 GHz d=2.3P d=1.2P d=1.2P 0,01 0.12 0.12 0.23 0.38 0.38 0.73 2008 - 2011 Version 2.2 gbo Medizintechnik AG...
- Page 28 Switch on the device 10 Connection and switch-on 10 Disinfection 20 Display 7 Transport of the device 10 Graphic display 7 Warning 10, 14, 18, 20 Warnings 10 High Tone Therapy 6 2008 -2011 Version 2.2 gbo Medizintechnik AG...
- Page 29 ® HiToP Personal notes 2008 - 2011 Version 2.2 gbo Medizintechnik AG...
- Page 30 ® HiToP Art.-No. 017-7-0138 2008 -2011 Version 2.2 gbo Medizintechnik AG...
