- Instrukcja montażu i obsługi
GB - Installation Instructions with technical data
IT
- Installazione e istruzioni per l'uso
Art.no. TS43C001
Instrukcje załączone do produktu należy przechowywać przez cały okres użytkowania produktu. The manuals which are enclosed with the product must be kept
throughout the product's entire service life. Tutti i manuali inclusi con il prodotto deve essere conservato per tutta la vita intero servizio del prodotto.
Zespół wodny / Water exchanger /
PL
- Przed użyciem prosimy dokładnie przeczytać instrukcje ogólnego użytkowania oraz obsługi
GB
- Before use, please read "General use and maintenance manual" carefully.
IT
- Prima dell'uso, leggere l '"uso generale e manuale di manutenzione" con attenzione.
Jøtul I 570 FL
Acqua scambiatore
2
8
14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jøtul I 570 FL
Summary of Contents for Jøtul I 570 FL

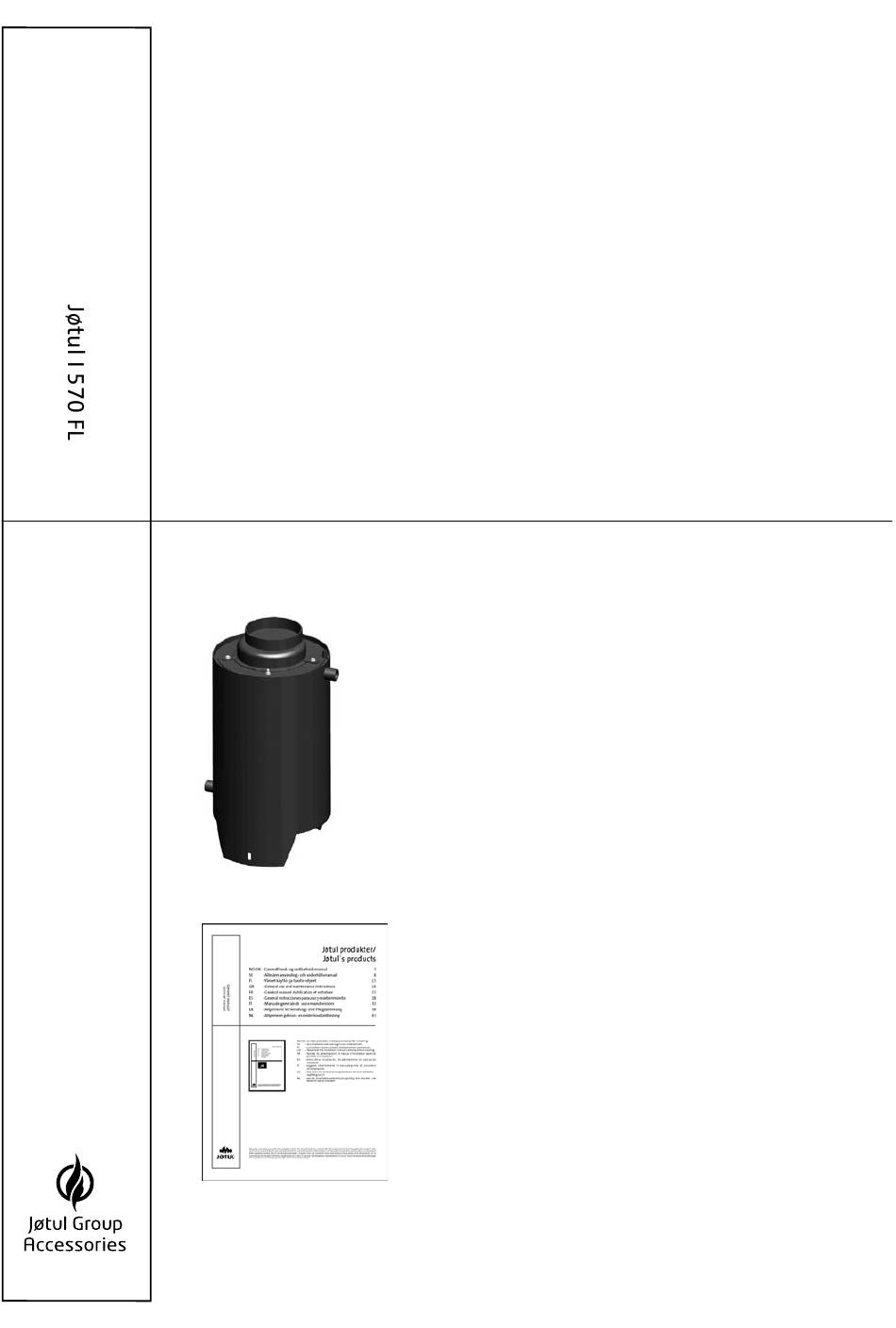

- Page 1 Jøtul I 570 FL Zespół wodny / Water exchanger / Acqua scambiatore - Instrukcja montażu i obsługi GB - Installation Instructions with technical data - Installazione e istruzioni per l’uso Art.no. TS43C001 - Przed użyciem prosimy dokładnie przeczytać instrukcje ogólnego użytkowania oraz obsługi - Before use, please read ”General use and maintenance manual”...
-
Page 2: Table Of Contents
Maintenance ..........12 Attention! The manual for the water exchanger and water exchanger system is only a supplement to the actual Jøtul I 570 FL manual (see ‘Installation and operating instructions for Optional extras..........13 Jøtul I 570 FL’). -
Page 3: Safety Precautions
Fig. 1 Additional glass for Jøtul I 570 FL To provide maximum efficiency of the water exchanger, a second windowpane must be installed (see optional equipment No. TS 39B002). The second windowpane increases the temperature of the hearth and ensures the correct operation of the water exchanger system with a nominal power amounting to 11kW. -
Page 4: Installation
The location of the insert should have a suitable load-capacity. The total weight of the complete installation of Jøtul I 570 FL together with the water exchanger amounts to about 290kg Install and place the insert according to the requirements stated in ‘Installation and operating instructions for Jøtul I 570FL’. - Page 5 engLISh Fig. 8 Fig. 10 Place the smoke connector pipe (B) on the water exchanger (A) and fix it by means of plates (C) and M8 nuts with washers (D). Further installation must be carried out in compliance with the insert’s instruction manual Attention! •...
-
Page 6: Daily Use
(C). Move the sweeper to 5.2 Wood consumption and fro in order to get rid of the accumulated soot. The nominal heat output of Jøtul I 570 FL with the water exchanger • It is recommended to perform the cleaning process one day amounts to 25kW. -
Page 7: Optional Extras
8.0 Optional extras 11.0 Operational problems - troubleshooting 8.1 Additional glass for Jøtul I 570 FL Cat. no. TS39B002 Water overheating in the water exchanger system 8.2 Electronic combustion regulator for • No power supply – check for cut-outs. - Page 8 Jøtul Polska prowadzi politykę stałego poprawiania i ulepszania swoich wyrobów. Mogą zatem w każdej chwili, bez uprzedzenia, ulec zmianie specyfikacje, wzornictwo, materiały lub wymiary. Jøtul Polska aims to continually improve its products. Therefore, spec, design, materials used and dimensions may change at any time and without prior notice. Jøtul Polska mira a migliorare costantemente i propri prodotti.
