Summary of Contents for Cooke & Lewis CLLED60-BK

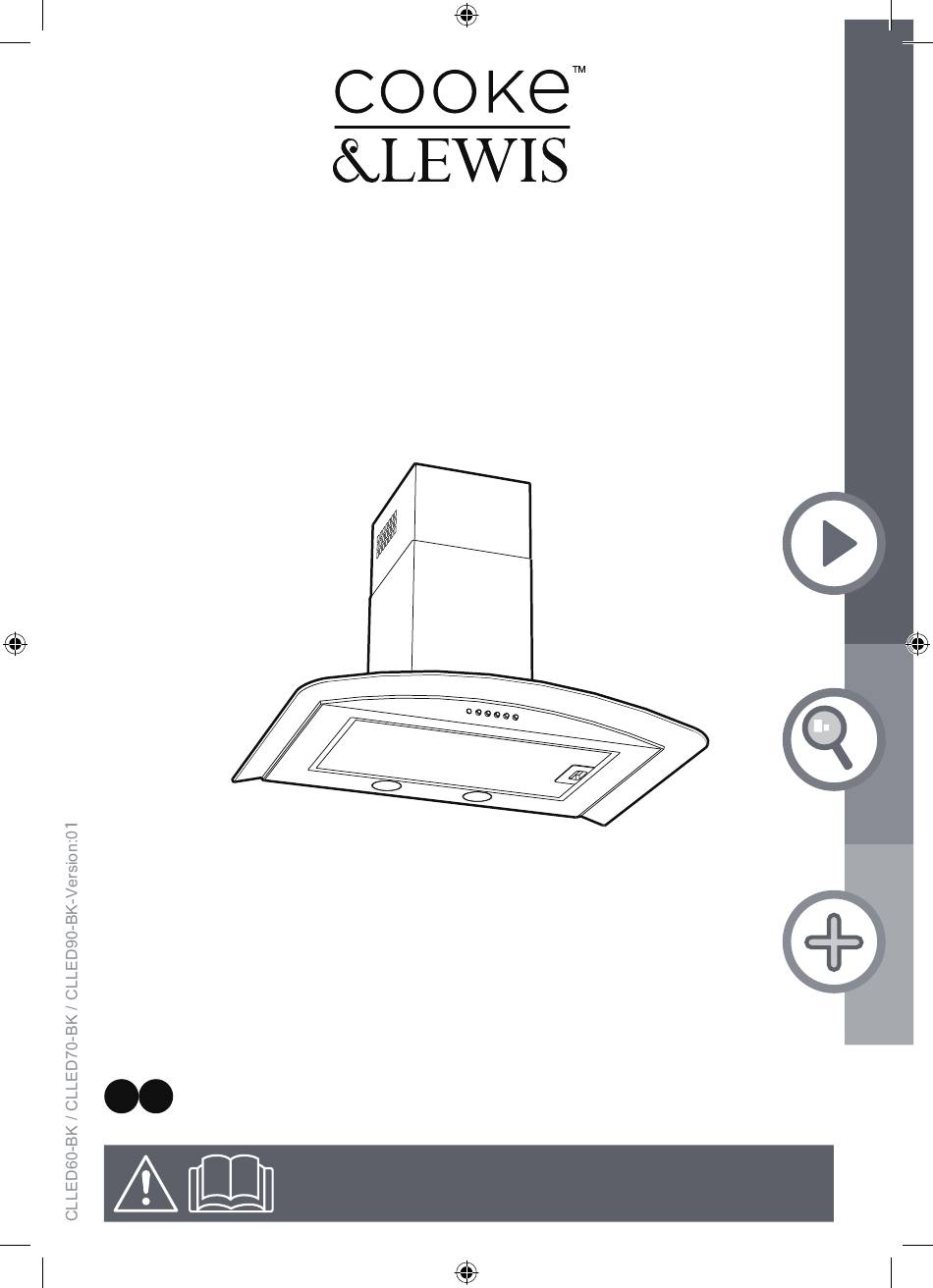

- Page 1 Cooker hood GB IE Cooker hood - Barcode: 5052931536917 / 5052931536924 / 5052931536931 WARNING: Read the instructions before using the appliance.
- Page 2 [01] x 1 [02] x 1 [03] x 1 [04] x 2 [05] x 1 [06] x 1 [07] x 1 Cooker hood...
- Page 3 [08] x 4 [09] x 4 [10] x 1 [11] x 6 1 : 1 [12] x 4 (3.9x18) [13] x 6 (3.9 x 32mm) [14] x 4 (3.4 x 10mm) Cooker Hood...
-
Page 4: Table Of Contents
Cooker Hood Let's get started... started... Getting Safety Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation ErP Information of the bulb provided Information for EU66... -
Page 5: Getting Started
Cooker Hood Getting Started... Safety Before you start... - Page 6 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried electrician. • This appliance must be installed correctly following the manufacturer’s instructions. This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent...
- Page 7 Safety Keep the appliance and its cordout of reach of childrenless than 8 years. Means for disconnection must be incorporated rules. An all-pole disconnection switch having a contact separation of at least 3 mm in all poles should be connected in fixed wiring. Regularly check the power plug and power cord for damage.If the supply cord is damaged, it must be replaced by the manufacturer,its...
- Page 8 Safety during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system. The appliance is for domestic use only.
- Page 9 Safety electricity supply to the hood and reconnect after one minute. regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection. Contact customer services. Flambe cooking must not be carried out underneath this appliance.
- Page 10 Before you start Cooker Hood Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
- Page 11 Before you start Cooker Hood Tools required Ø6mm SELF ADHESIVE ALUMINIUM TAPE Extraction Ø125mm or Ø150mm Ø125mm or Ø150mm Alumnium Recirculation CARBFILT4 (UK & IE) OR CARBFILT4CL (FR) CARBON FILTER ORDERING HOTLINE 0 44 800 1128 (UK) 01 4475261 (IE)
-
Page 12: In More Detail
Cooker Hood more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 13: Product Functions
Product Functions Cooker Hood Product functions This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of the air quality inside the room, it also allows you to illuminate the cooking area. Operation Cooker Hood Operation •... -
Page 14: Care And Maintenance
Care and maintenance Cooker Hood Care and maintenance Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services. Bulb replacement DOUBLE POLE SWITCHED FUSED SPUR OUTLET FUSE ON 10’... - Page 15 Care and maintenance Cooker Hood CLICK 2 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED). MODEL NUMBER CARBFILT4 (UK & IE) OR CARBFILT4CL (FR).
- Page 16 Care and maintenance Cooker Hood Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Exterior cleaning: use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products. 1 MONTH MAX.
-
Page 17: Troubleshooting
Troubleshooting Cooker Hood Troubleshooting Fault Cause Solution Excessive The appliance is not Take down the appliance and vibration. installed properly on the brackets. The fan blade is Switch off the appliance. Repair damaged. service personnel only. tightly. Light on, but The fan blade is jammed. -
Page 18: Recycling And Disposal
Recycling and disposal Cooker Hood Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 19: Technical And Legal Information
Technical and legal information Cooker Hood Wiring All installation work must be carried out by a competent Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. WARNING: THIS APPLIANCE MUST NOT BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED FUSED SPUR OUTLET... -
Page 20: Installation
Technical and legal information Cooker Hood Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. regulations electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. -
Page 21: Guarantee
Guarantee Cooker Hood Guarantee This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 22 Guarantee Cooker Hood Guarantee Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT. In the course of the service work carried out it may be necessary to remove the glued, grouted or tiled in such a manner that it cannot be removed, it is the responsibility of the customer/...
-
Page 23: Ce Declaration Of Conformity
We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. MACHINE APPLICATION: CLLED60-BK / CLLED70-BK / CLLED90-BK Decorative Cooker Hood TYPE: Comply with the European Directives 2006/95/EC: LVD... - Page 24 Installation CARBFILT4 (UK & IE) or CARBFILT4CL (FR) VENT PACK 2 (UK + IE) You can choose two type of installation: - Ducted option - Recirculation option Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards...
- Page 25 170mm MAX 735mm 170mm 90mm 122mm 34mm DIM.B DIM.B MIN.750mm MIN 650mm Electric...
- Page 26 [13] [11] [11] x 6 [13] x 2 Maximum gap between top 2 holes and middle 2 holes can be no more than 735mm, dependant on ceiling height [03] [03] [13] x 2 [13] 735mm...
- Page 27 Insert the 4x bolts, rubber washer and washer and tighten with the allen key, ensuring not to over tighten as this may cause damae to the glass. [08] x 4 [09] x 4 [12] x 4 [10] Insert the 4x bolts, rubber washer and washer and tighten with the allen key, ensuring not to over tighten as this may cause damae to the glass.
- Page 28 [13] x 2 Position the hood over the top two screw then fix the bottom screws from inside the hood. Replace the aluminium Filter...
- Page 29 [07] [14] [06] [06] [07] [14] x 2 Fix the Collar and the reducer if required.. Vent Pack 2 (UK + IE) Fix the Ducting Tube 125 or 150 using tape or clamp.
- Page 30 [02] x 1 [02] [14] [14] x 2...
- Page 31 For recirculating option refer to Care and maintenance section. Note: For electrical connection see Technical and legal information section.
-
Page 32: Erp Information Of The Bulb Provided
Appendix... ErP Information of the bulb provided Annexe... Anexo... Informations ErP de l’ampoule fournie Información ErP de la bombilla incluida Ek bölüm... ącznik... Informacja ErP dotycząca Ürünle birlikte verilen ampulün ErP bilgileri ączonej żarówki GU10 3000 Kelvin ® GU10-3-30/A257/27 100° 0 Kelvin 10000 Kelvin <... -
Page 33: Information For Eu66
Appendix... Information for EU66 (A)Information of the cooker Hood (www.diy.com) Symbol Value Unit CLLED60-BK Model identification CLLED70-BK, CLLED90-BK Annual Energy Consumption 54.3 kWh/a hood Time increase factor Fluid Dynamic Efficiency hood Energy Efficiency Index 84.6 hood Measured air flow rate at best 208.6... - Page 36 B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com...
