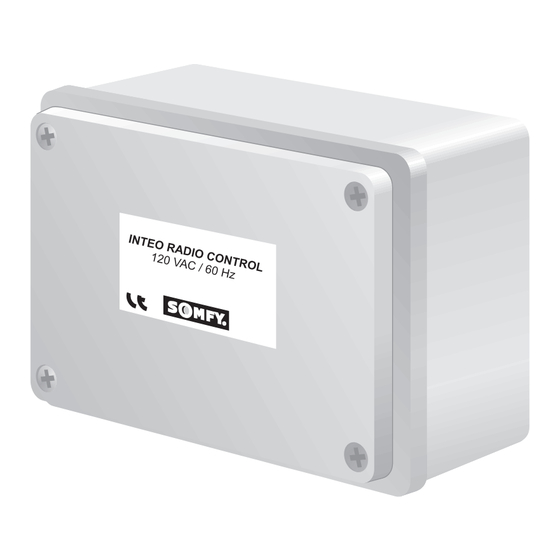

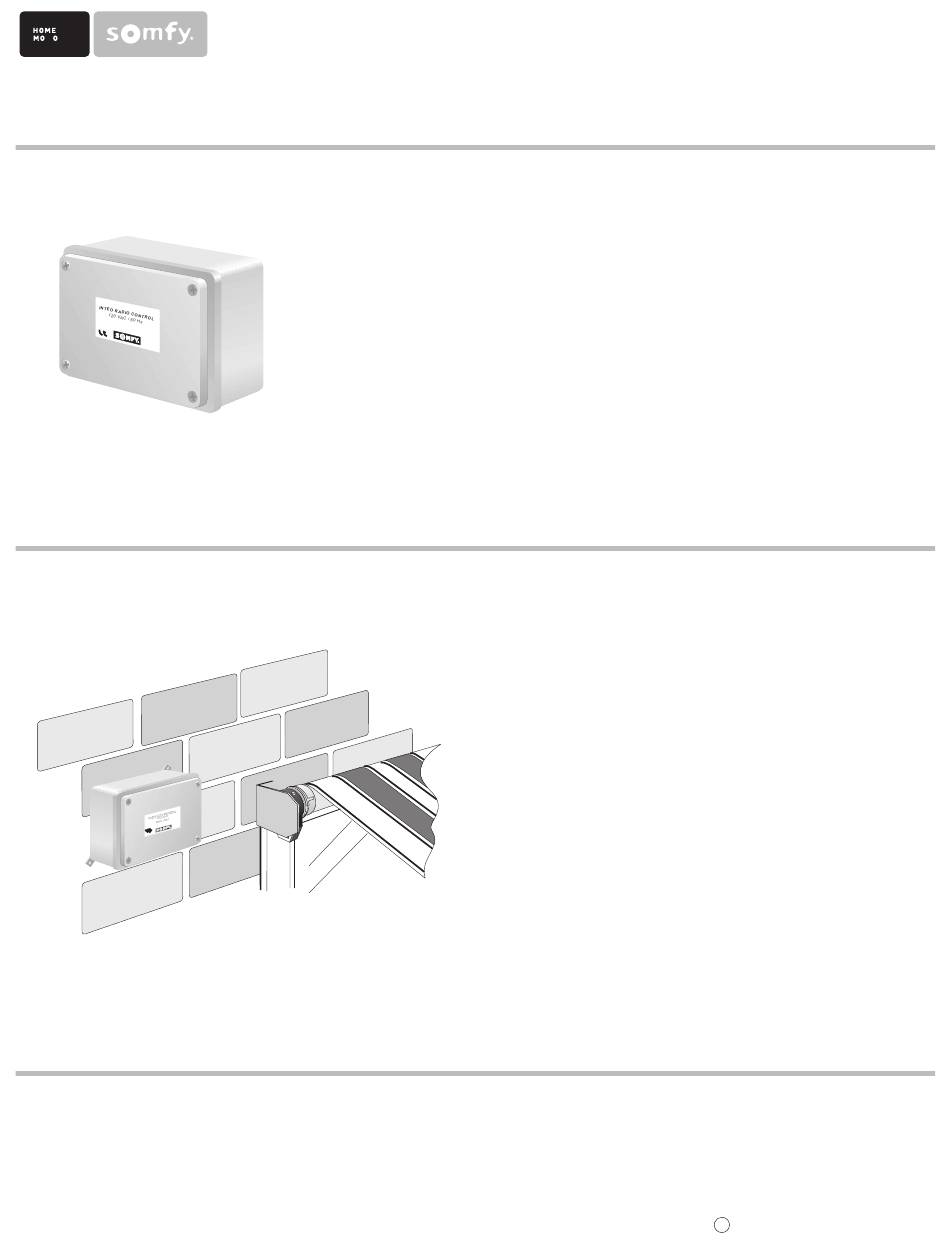

SOMFY CENTRALIS RECEIVER Installation And Operating Instructions

TI N B Y
DESCRIPTION
Catalog No: 6301023
INSTALLATION PROCEDURES
SOMFY SYSTEMS, INC.
47 Commerce Drive
Cranbury, NJ 08512
SOMFY SYSTEMS, INC. reserves the right to change,
update or improve this document without prior notice.
CENTRALIS RECEIVER
Inteo Remote Control
Installation and Operating Instructions
The Somfy Centralis Receiver is a single motor control designed for
residential use. It includes an integrated radio receiver, plus input
terminals for an optional low voltage switch. Using the Telis
Transmitters, it is possible to operate the controls individually or in
groups. Two user-defined intermediate positions can be programmed.
This new control is packaged in a weatherproof enclosure and includes
watertight strain-relief fittings for wires entering the box.
1. The Centralis Receiver should be mounted as close to the motor as
possible. If mounted outside, ensure that the connections are facing
down to avoid rain seepage. Avoid mounting the control against any
metallic surface, as this may affect the radio reception.
2. Connect high and low voltage wires according to the wiring diagram
on the next page. It is recommended that the low voltage wiring is
done first, for easier access to the terminals. Make sure to use included
watertight strain relief fittings to maintain the weatherproofing of the
enclosure.
3. When using a low voltage switch, it should be located no more than
100 feet from the Centralis Receiver.
