FrontRow Juno Installation Manual page 2

Installation - continued

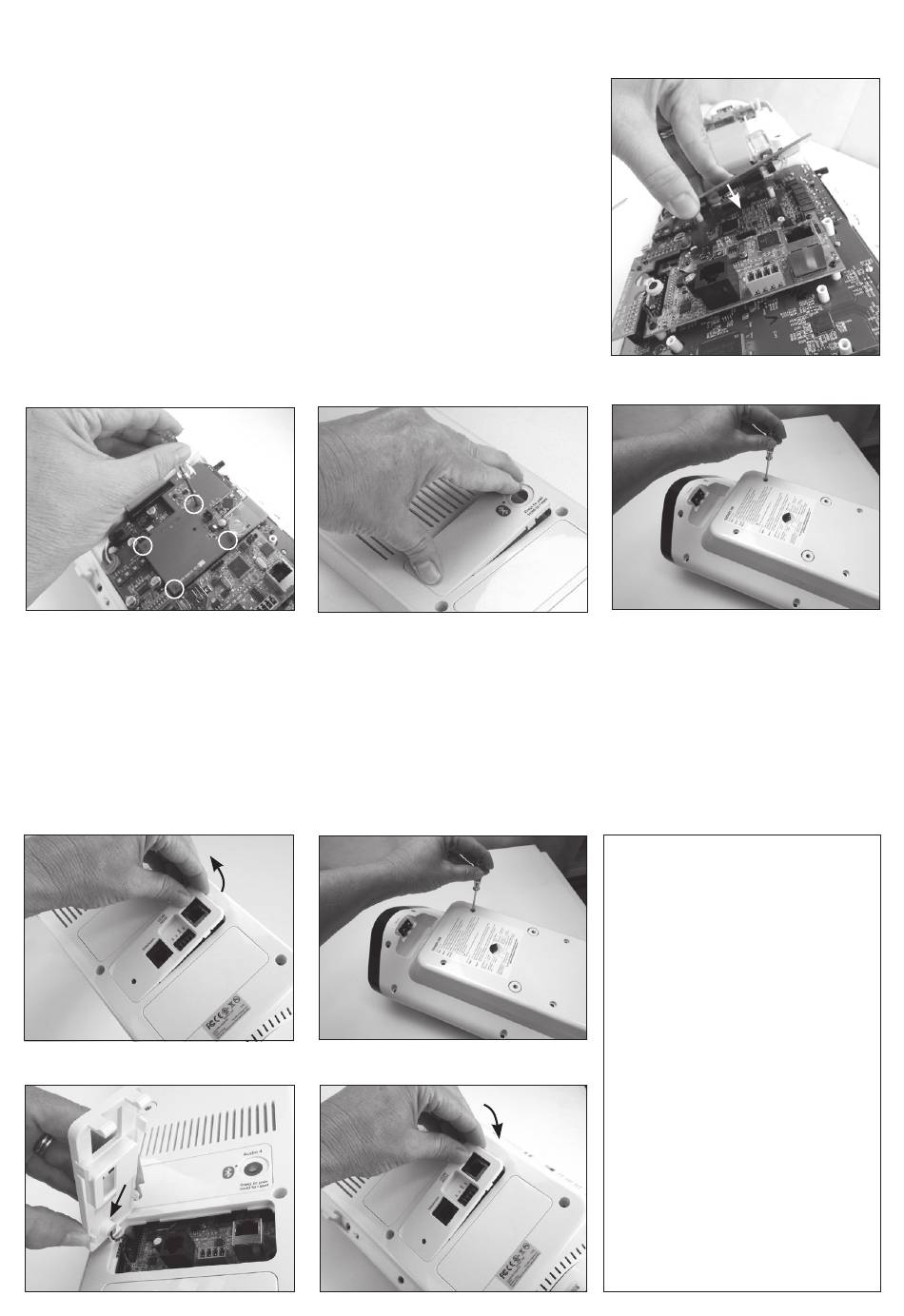

7. There is a 10-pin connector in the middle of the Bluetooth
board and a 3-pin connector at the top. Gently seat the
Bluetooth board onto the main board and press into place,
being very careful not to bend or damage the pins.
TIP: Use the screw holes to help alignment. (See Image 7).
8. Secure the board to the main circuit board using the four
included screws. (See Image 8)
9. Remove the top plastic cover from the back panel and then
replace with the Bluetooth module cover. (See Image 9)
NOTE: If you have a Juno Connect module already installed,
go to step 11.
10. Place the back panel back on the Juno and secure the 8 screws.
(See Image 10)
Image 8
Perform these steps if the Juno Connect module is already installed:
11. Remove the Juno Connect module cover. (See Image 11)
12. Place the back panel back on the Juno and secure the 8 screws. (See Image 12)
13. Insert the microphone element into the slot on the back of the Juno Connect module cover, then snap
it into place. (See Images 13 and 14)
Image 11
Image 13
Image 9
Image 12
Image 14
Image 7
Image 10
Testing
To test your installation:
1. Power up the Juno.
2. Press the Bluetooth button
to initiate pairing.
3. Go to your Bluetooth
settings on your device
and select the Juno.
4. Play some audio. Adjust
levels accordingly using the
Audio input 4 control from
the Juno LCD.
5. Connect your device to the
3.5mm audio input on the
front of the Juno and play
audio. This will confirm that
the Bluetooth board was
connected properly.
1530-00012/Rev A 0917
