Unitech MS916 Quick Start Manual

MS916
Quick Start Guide

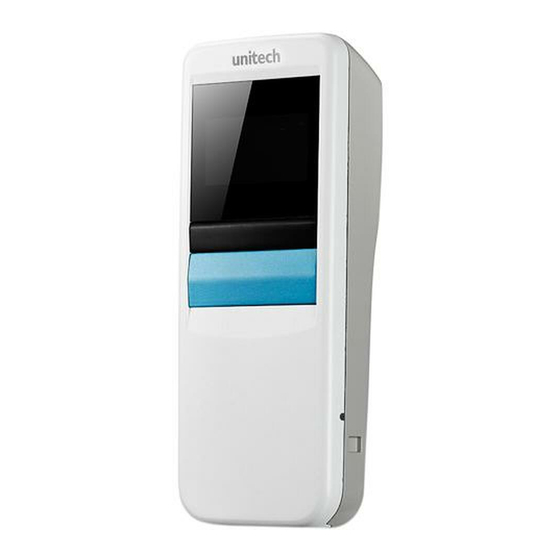

The Unitech Wireless(BT) Pocket Laser
Scanner
Pairing with PC/Notebook
Step 2:
Following steps are based on Microsoft Windows 7.
1. Turn on MS916 and then press the Page Down button and Scan
Key simultaneously to enter BT Pairing mode or you can press
Page Up and Page Down button simultaneously to enter main
menu, then choose Bluetooth CFG , finally choose BT Pairing.
2. Open Devices and Printers by clicking the Start button
then, on the Start menu, clicking Devices and Printers.
3. Click Add a device, and then follow the instructions.
4. Click the Bluetooth enabled device (MS916-[XXXXXX]) you want to
add to your computer, and then click Next. If you don't see the
device you want to add, make sure the device is turned on and
discoverable. If you just turned on the device, it may take Windows
several seconds to detect it.
Test & Finish
Step 4:
Open a word processing program such as
Microsoft Word or Notepad on your host. Now
scan the following barcode:
If the word "Unitech" appears on the screen you
have succesfully installed your scanner.
Congratulations!
Operation Mode
Wedge
Auto *
Step 1:
Insert the Micro USB connector into the port on the scanner and the standard USB connector of
the USB cable into a USB port on the host PC.
, and
Step 5:
• The MS916 should be recognized as a generic HID device
by your host device, similar to a standard keyboard. This
allows you to scan into any field you could normally type into.
• If the MS916 is out of Bluetooth range from the host device,
it will automatically save any scan data in its buffer memory
and automatically upload the scan data to the host when
back in Bluetooth range.
• The MS916 can also operate in Batch Mode, where a
Bluetooth connection is not required. In Batch Mode, the
MS916 saves all scan data in internal memory and then
uploads the data when connected to a host. See back page
of this guide for more information about modes and settings.
Bluetooth Config
Batch BT Pairing
Remove Pair
** For more detail scanner setting, please go to www.ute.com to download the
user manual and scanner configuration manager utility
Connect and Charge
Host
USB A
MS916 TIPS
Paired Device
Scanner
Micro USB
Paring with mobile devices
Step 3:
Go to your host device (phone/tablet/computer)
settings and turn on the Bluetooth function.
The MS916 will appear on your device as
"MS916-XXXXXX".
Select/Press "MS916-XXXXXX".
If you have Bluetooth 2.1, "MS916-XXXXXX" will
now appear as paired. Your host device is now
paired with the MS916.
If your MS916 and host device have successfully
paired, please proceed to Step 4: "Test &
Finish". If you are prompted to enter a pincode,
please enter the number "2916" to pair.
Scanner Type
BT HID *
USB SPP BT SPP (Slave)
System Restore & Info
Factory Default
Display F/W Version
BT SPP
