Setting Of Outside Unit Dip Switch - LG PWFCKN000 Installation Manual

Variable water flow control kit

Setting and Using Method

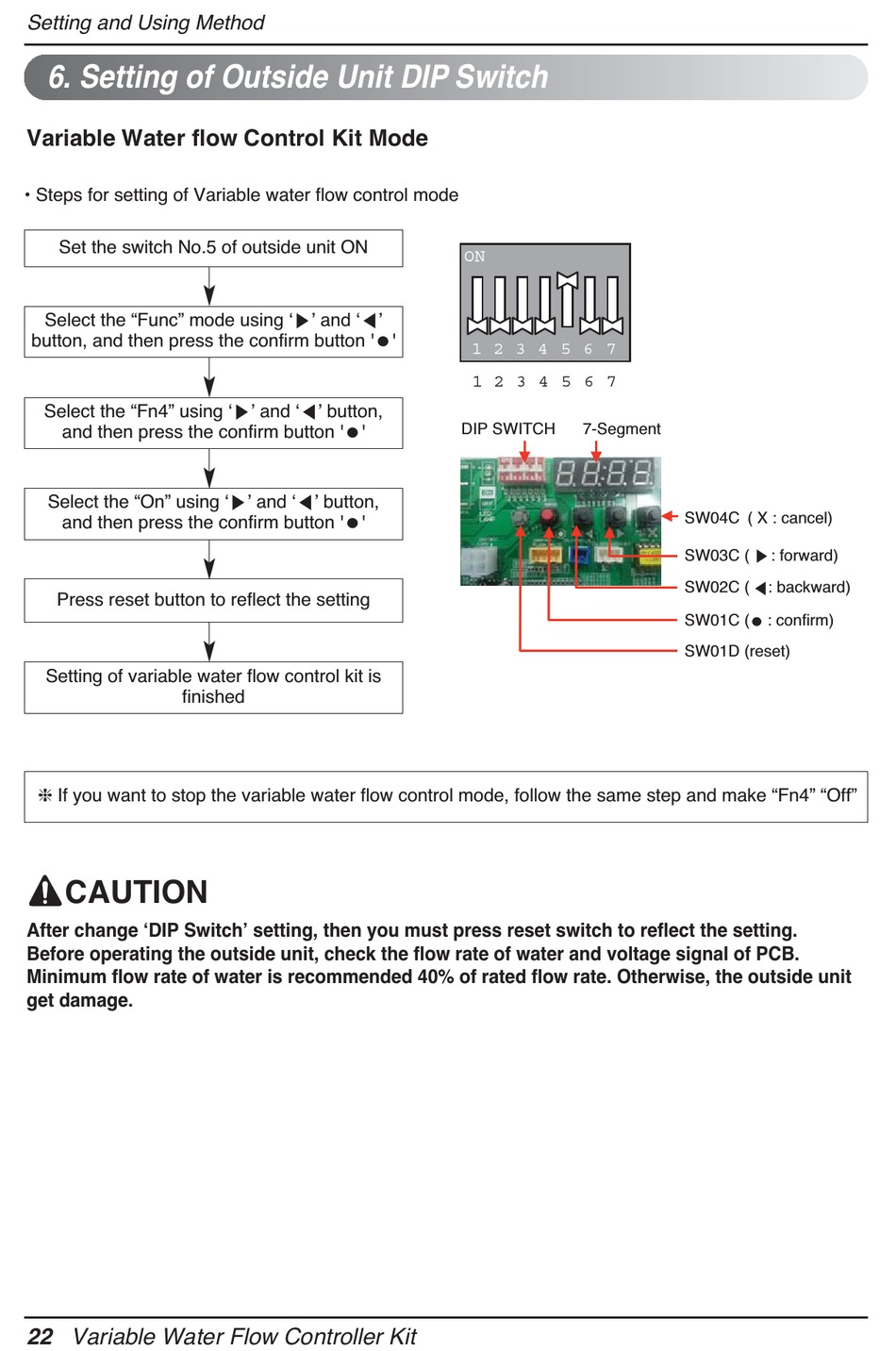

6. Setting of Outside Unit DIP Switch

Variable Water flow Control Kit Mode

• Steps for setting of Variable water flow control mode

Set the switch No.5 of outside unit ON

Select the "Func" mode using ʻ▶ʼ and ʻ◀ʼ

button, and then press the confirm button '●'

Select the "Fn4" using ʻ▶ʼ and ʻ◀ʼ button,

and then press the confirm button '●'

Select the "On" using ʻ▶ʼ and ʻ◀ʼ button,

and then press the confirm button '●'

Press reset button to reflect the setting

Setting of variable water flow control kit is

finished

h If you want to stop the variable water flow control mode, follow the same step and make "Fn4" "Off"

CAUTION

After change ʻDIP Switchʼ setting, then you must press reset switch to reflect the setting.

Before operating the outside unit, check the flow rate of water and voltage signal of PCB.

Minimum flow rate of water is recommended 40% of rated flow rate. Otherwise, the outside unit

get damage.

22 Variable Water Flow Controller Kit

DIP SWITCH

7-Segment

SW04C ( X : cancel)

SW03C (

: forward)

SW02C (

: backward)

SW01C (

: confirm)

SW01D (reset)
