Regulatory Information; Specifications; Contact Information - Interlogix TVC-2401 Installation Manual

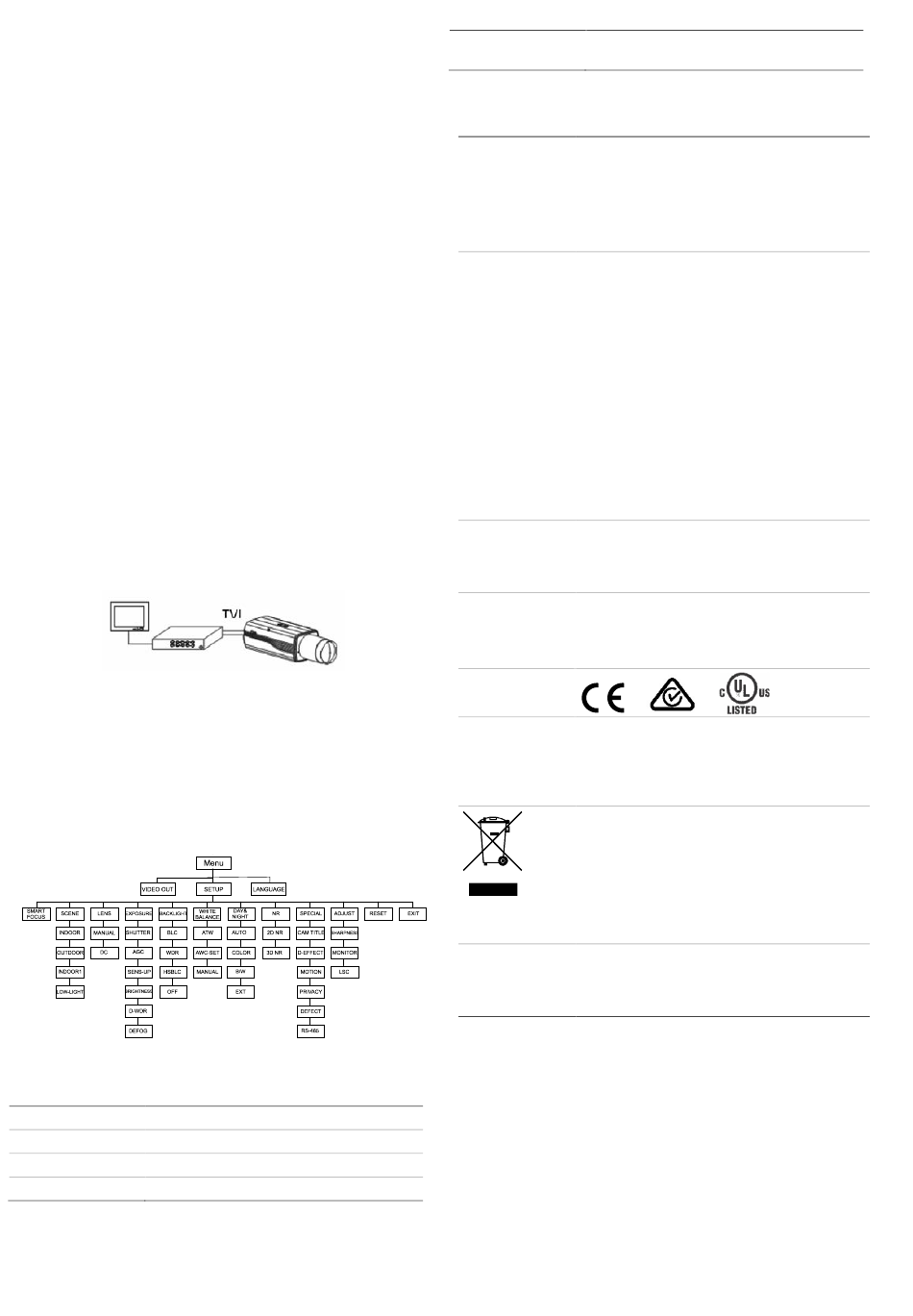

To mount the camera:
1. Attach the camera to a mounting bracket using
appropriate fasteners or install the camera in an
appropriate outdoor housing.
2. Adjust the camera to get an optimum angle.
3. Tighten the screw to secure the camera to the bracket, if
required.
To finish the installation:
1. Using a 75-ohm coaxial video cable, connect the camera
TVI video output to a TVI DVR.
2. Connect the service monitor CVBS connector to the
camera CVBS output, if required. Please refer to the
Programming section for more information.
3. Power the camera with a power supply. Please mind the
polarity of 12 VDC connections. 24 VAC connections are
not polarity sensitive.
4. Finish the installation by adjusting zoom and focus to get a
clear picture.
Programming
Program using a TVI output
Once the camera hardware has been installed, you can
configure the camera settings on the TVI DVR.
Please select the PTZ protocol as
the menu button to call up the camera menu. For more details,
please see the TVI DVR user manual.
The camera has CVBS and TVI dual video outputs. When the
WDR feature is enabled via the OSD, the CVBS output will be
blocked.
Setup menu

Specifications

Power supply 24 VAC / 12 VDC
Current 1 A max.
Power consumption 12 W max.
Weight (net) 0.83 lb. (378 g)
2 / 2
TruVision Coax and click
Dimensions 2.7 x 2.3 x 5.85 in.
(69.2 × 57.3 × 148.7 mm)

Regulatory information

Manufacturer Interlogix.
2955 Red Hill Avenue, Costa Mesa, CA 92626
5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
FCC compliance Class A: This equipment has been tested and
found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
ACMA compliance Notice! This is a Class A product. In a domestic
environment this product may cause radio
interference in which case the user may be
required to take adequate measures.
Canada This Class A digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe A est
conforme à la norme NMB-0330 du Canada.
Certification
European Union 12004/108/EC (EMC directive): Hereby, UTC Fire
directives & Security declares that this device is in
compliance with the essential requirements and
other relevant provisions of Directive
2004/108/EC.
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.
The trade names used in this document may be
Trademarks and
trademarks or registered trademarks of the
patents
manufacturers or vendors of the respective
products.

Contact information

For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.
P/N 1073165-EN • REV A • ISS 07APR16
