MAINTENANCE AND TROUBLESHOOTING

Inspect and properly tighten all parts of the exercise
bike regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of liquid dish soap. IMPORTANT: To
avoid damaging the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace all the
batteries at the same time; most console problems are
the result of low batteries. To replace the batteries,
see assembly step 7 on page 8. If the handgrip pulse
sensor does not function properly, see step 5 on page
14.

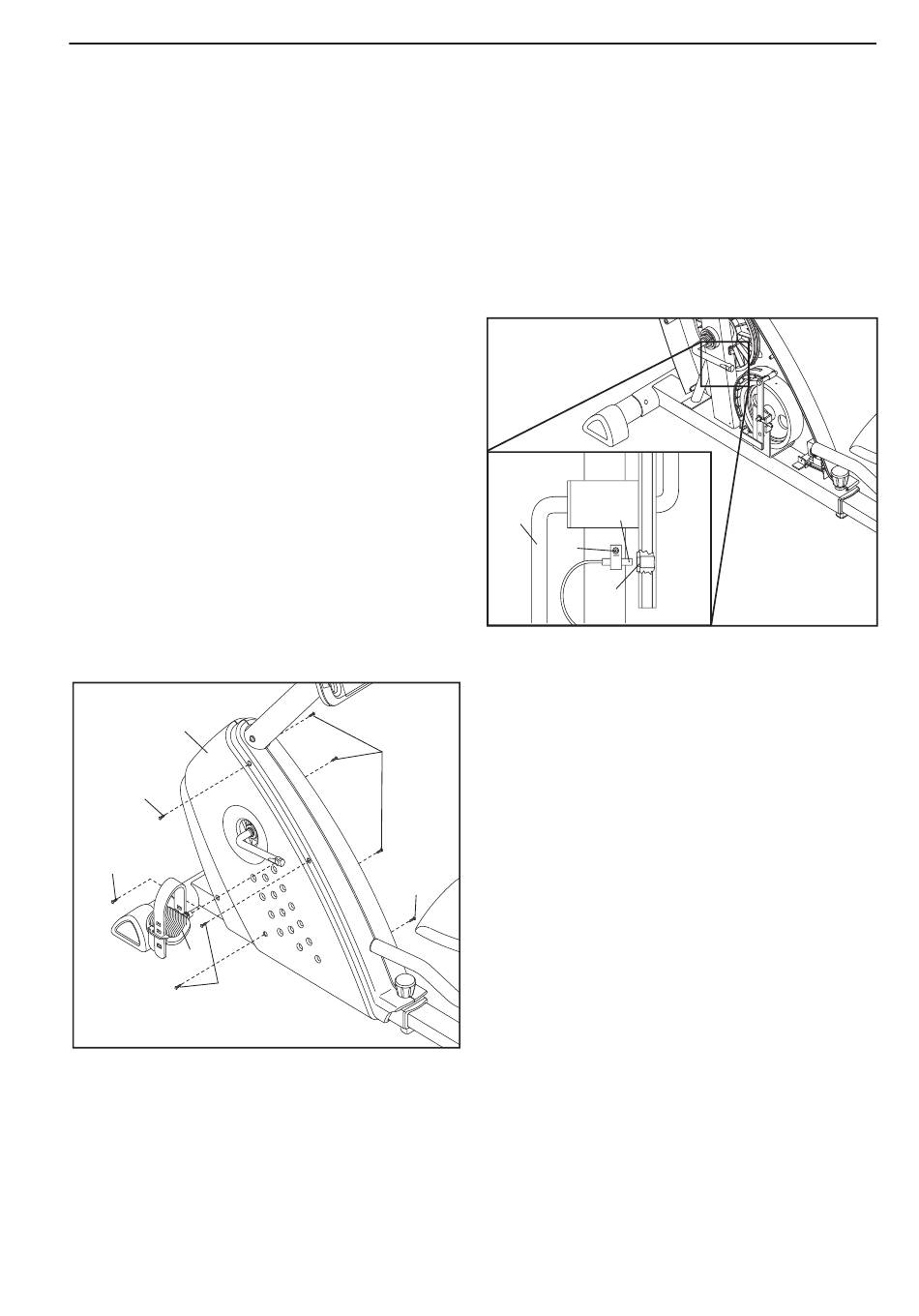

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the Left Shield (9).
Using an adjustable wrench, turn the Left Pedal (24)
clockwise and remove it. Next, remove the seven M4
x 16mm Screws (57) and the M4 x 25mm Screw (45).
Then, carefully remove the Left Shield.
9
57
57
24
57
All manuals and user guides at all-guides.com
57
45
18
With the left shield removed, locate the Reed Switch
(43). Turn the Crank (31) until the Magnet (38) is
aligned with the Reed Switch. Next, loosen, but do not
remove, the indicated M4 x 16mm Screw (57). Slide
the Reed Switch slightly closer to or away from the
Magnet, and then retighten the Screw. Turn the Crank
for a moment. Repeat until the console displays cor-
rect feedback. When the Reed Switch is correctly
adjusted, reattach the left shield and the left pedal.
43
31
57
38
