Solid State Logic XLogic Delta-Link MADI HD Installation And User Manual page 18

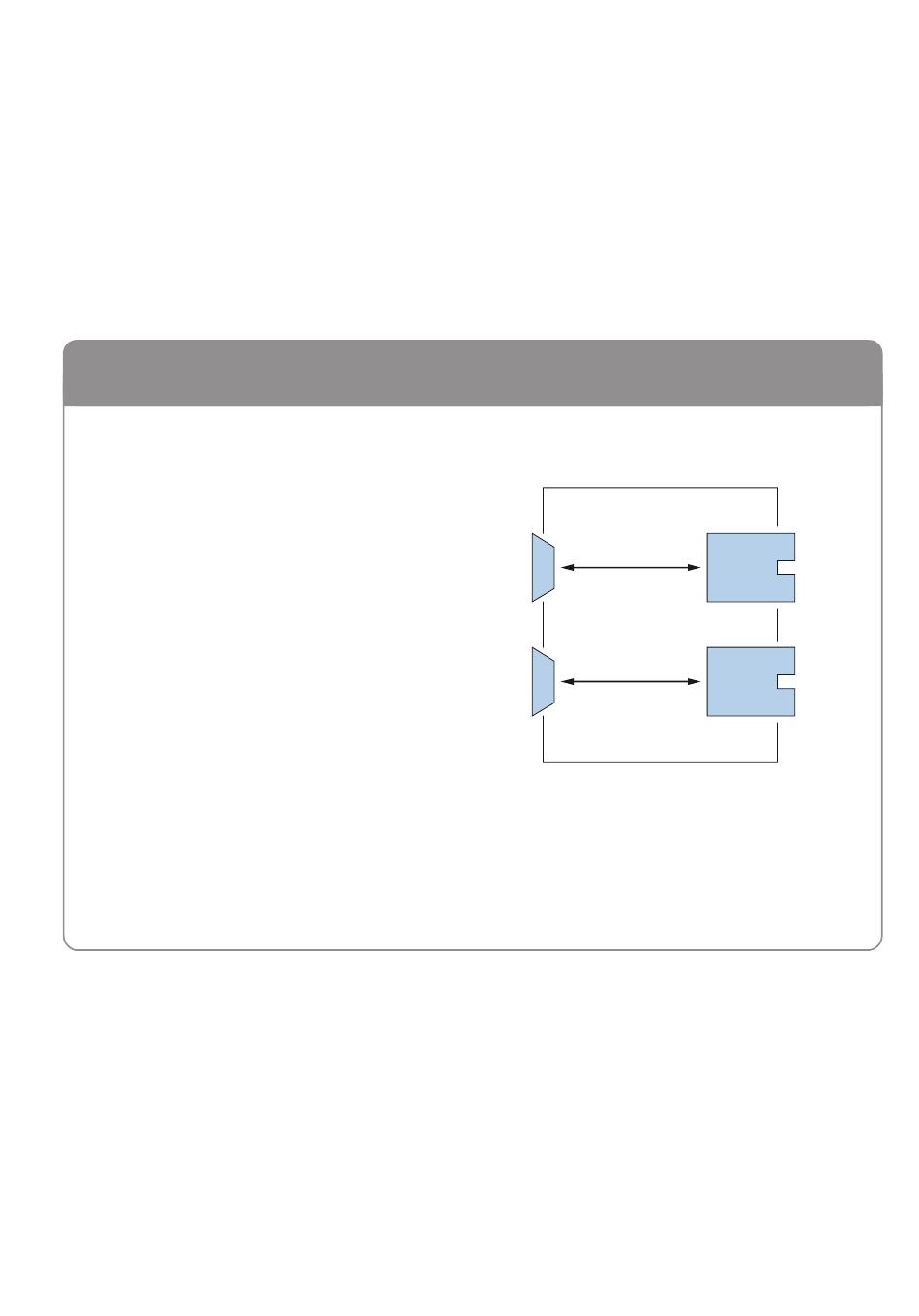

NFS range (44.1kHz to 48kHz): 64-48 "special" mode
Two Primary Ports interact with two MADI Ports.
Primary Port A, channel 01 ↔ MADI Port A, channel 01
Primary Port A, channel 32 ↔ MADI Port A, channel 32
Primary Port B, channel 33 ↔ MADI Port B, channel 33
Primary Port B, channel 64 ↔ MADI Port B, channel 64
NOTE: The 64-48 special mode must be selected remotely via software. (For Pro Tools
table on page 20)
NOTE: This special mode is especially suitable for interfacing with the SSL Alpha-Link range of audio interfaces: two
Alpha-Link MADI audio interfaces can be connected to one Delta-Link MADI HD, providing 48 analogue input/output
channels and 16 digital input/output channels (AES/EBU or ADAT) at 96kHz.
14
All manuals and user guides at all-guides.com
NFS range (44.1/48kHz)
Special Mode
Primary
Port A
Channel A
(1..32)
Primary
Port B
Channel B
(33..64)
see the information on page 19 and
®
Channel A
MADI A
(1..32)
Channel A
MADI B
(33..64)
