Summary of Contents for Solid State Logic MADI OPTI-COAX

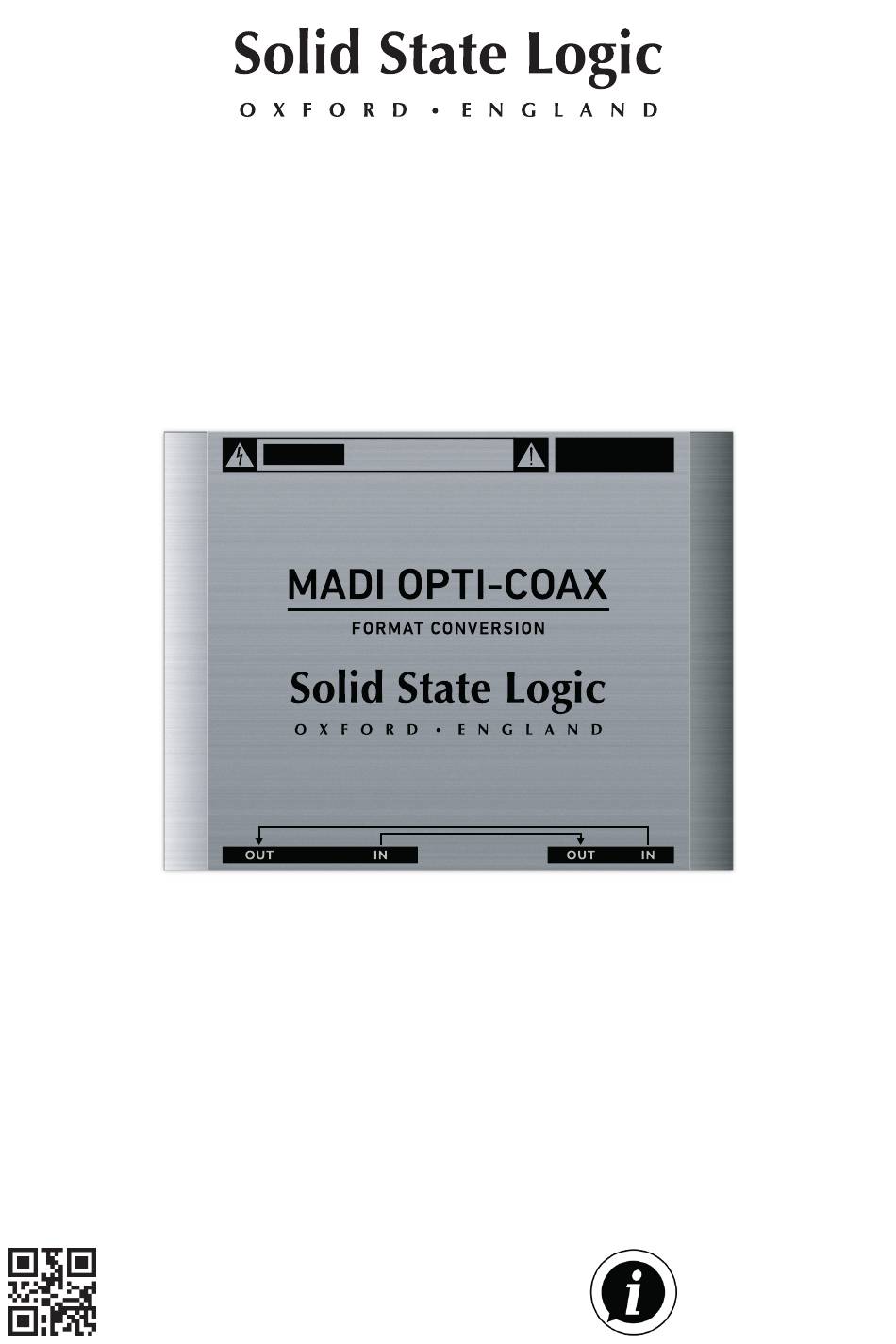

- Page 1 MADI OPTI-COAX 100 - 240 V AC RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION ! RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR 50/60 Hz • 250 mA Max MADI COAXIAL MADI OPTICAL Quick Start Guide 82BSJE01B Important Information Inside...
- Page 3 Quick Start Guide (this document) Connecting Your MADI Opti-Coax Unit 1. Connect the supplied IEC power cable to the mains inlet on the rear of the unit. The POWER indicator on the front of the unit will light when the unit is powered.
- Page 4 Specifications MADI Coaxial Connections BNC connectors must conform to IEC 60169-8. Cable should be 75 Ohm coax to at least Belden 1694F Low Loss Serial Digital Coax standard. Specification for Belden cable can be found here: https://edesk.belden.com/products/techdata/metric/pdf/1694F.pdf SSL recommends that cable assemblies should have a 360º connection between cable shield and the connector in order to maintain electromagnetic compatibility.
