Summary of Contents for Ursalink UR75 Edge

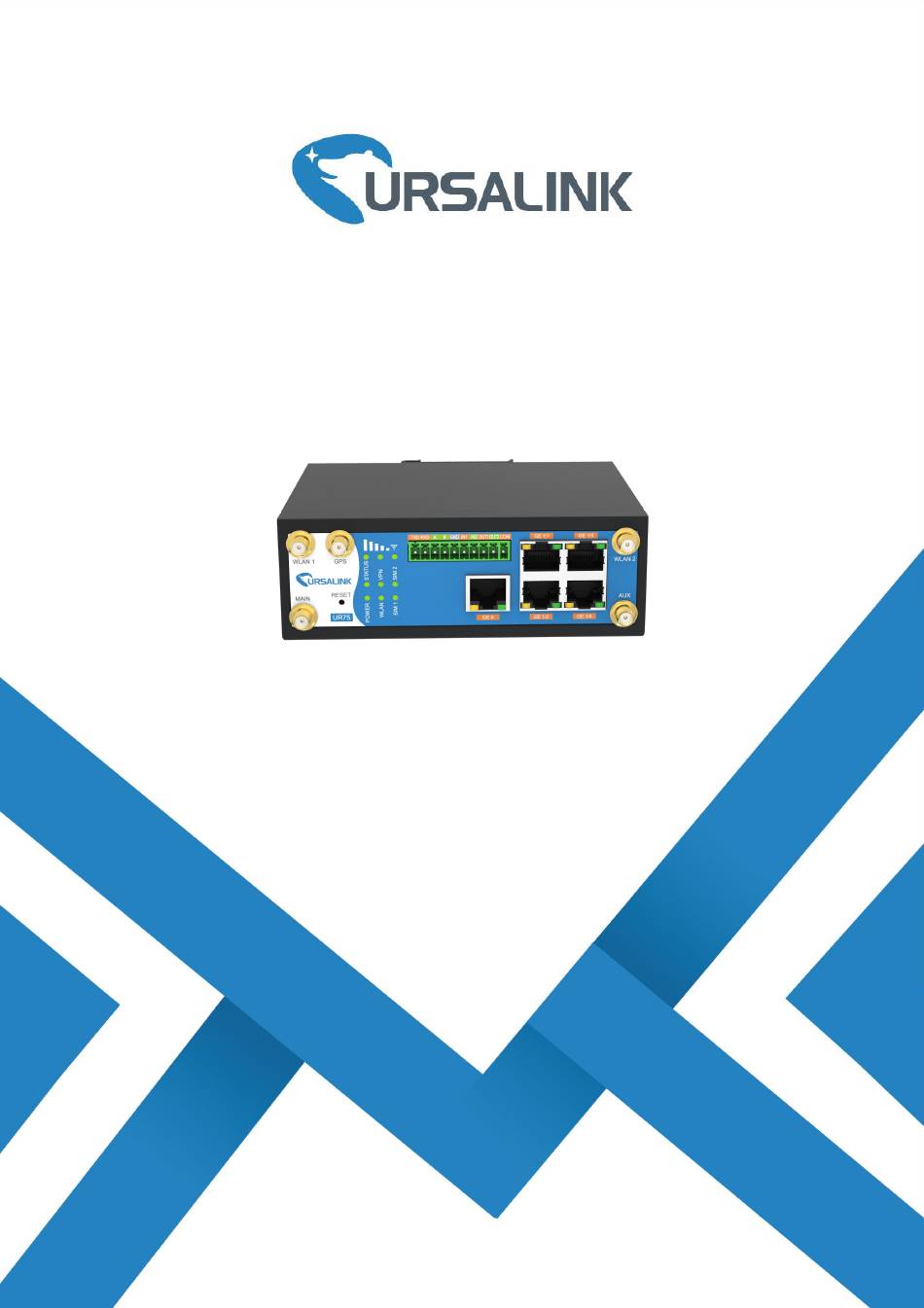

  • Page 1: Quick Start Guide

    UR75 Edge Quick Start Guide Ursalink Technology Co., Ltd.
  • Page 2: Related Documents

    Thank you for choosing Ursalink UR75 Edge gateway. This guide describes how to install the UR75 Edge gateway and how to log in the Web GUI to configure the device. Once you complete the installation, refer to the Ursalink UR75 Edge User Guide for instructions on how to perform configurations on the device.
  • Page 3: Package Contents

    Ursalink UR75 Quick Start Guide 1. Packing List Before you begin to install the UR75 Edge gateway, please check the package contents to verify that you have received the items below. 1.1 Package Contents 1 × 10-Pin Pluggable 1 × UR75 Edge gateway 1 ×...
  • Page 4: Hardware Introduction

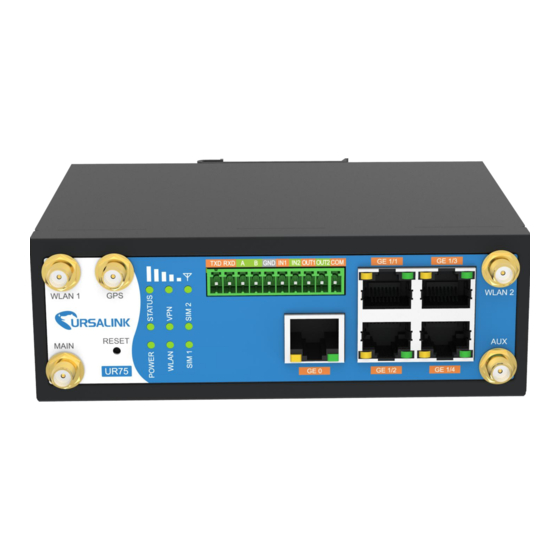

    Ursalink UR75 Quick Start Guide 2. Hardware Introduction 2.1 Overview A. Front Panel UR75 Edge Front Panel Main Cellular Antenna Connector Reset Button LED Indicator Area POWER: Power Indicator STATUS: Status Indicator WLAN: Wi-Fi Indicator VPN: VPN Indicator SIM 1: SIM 1 Status Indicator...
  • Page 5: Led Indicators

    Ursalink UR75 Quick Start Guide 2.3 Pinouts RS232 RS485 Description Transmit Data Receive Data Data + Data - Ground Digital Input1 Digital Input2 OUT1 Digital Output1 OUT2 Digital Output2 Common Ground Description Positive Negative 2.4 LED Indicators Indication Status Description...
  • Page 6: Reset Button

    Ursalink UR75 Quick Start Guide Static/Off/Off: weak signals with 1-10 ASU (please check if the antenna is installed correctly, or move the antenna to a suitable location to get better signal) Green Light Static/Static/Off: normal signals with 11-20 ASU (average signal strength)
  • Page 7: Hardware Installation

    Ursalink UR75 Quick Start Guide 3. Hardware Installation Environmental Requirements - Power Input: 9-48 VDC - Power Consumption: Typical 4.0 W (Max 6.7 W) - Operating Temperature: -40°C to 70°C (-40°F -158°F) - Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F 3.1 SIM Card/Micro SD Card/SSD Installation...
  • Page 8: Ssd Installation

    Ursalink UR75 Quick Start Guide C. Close the cover and screw it back to the gateway. 3.1.3 SSD Installation Before installing SSD, please turn off the power. A. Unscrew the enclosure, and then remove the cover. B. Unscrew the main-board, find the interface on the rear side of the main-board and then insert SSD.
  • Page 9: Antenna Installation

    The external antenna should be installed vertically always on a site with a good cellular signal. 3.3 Connect the Gateway to a Computer Please connect PC to any port among GE 1/1-GE 1/4 of UR75 Edge gateway directly. 3.4 Mount the Gateway The gateway can be placed on a desktop or mounted to a wall or a DIN rail.
  • Page 10: Power Supply Installation

    Ursalink UR75 Quick Start Guide 3.4.1 Wall Mounting (Measured in mm) Use 2 pcs of M3 × 6 flat head Phillips screws to fix the wall mounting kit to the gateway, and then use 2 pcs of M3 drywall screws to mount the gateway associated with the wall mounting kit on the wall.
  • Page 11: Protective Grounding Installation

    Ursalink UR75 Quick Start Guide 3.6 Protective Grounding Installation A. Remove the grounding nut. B. Connect the grounding ring of the cabinet’s grounding wire onto the grounding stud and screw up the grounding nut. The gateway must be grounded when deployed. According to operating environment, the ground wire should be connected with grounding stud of gateway.
  • Page 12: Getting Started

    4. PC Configuration for Web GUI Accessing to Gateway Please connect PC to any port among GE 1/1-GE 1/4 of UR75 Edge gateway directly. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference.
  • Page 13 Ursalink UR75 Quick Start Guide Method 2: click “Use the Double Click “Internet Method 1: click “Obtain an IP ⑤ ⑥ following IP address” to assign a Protocol Version 4 address automatically”; static IP manually within the (TCP/IPv4)” to configure IP same subnet of the gateway.
  • Page 14 Ursalink UR75 Quick Start Guide 5. Access to Web GUI of Gateway for Cellular Connection This chapter explains how to log in UR75 Edge gateway’s Web GUI, and connect the gateway to cellular network. Ursalink gateway provides Web-based configuration interface for management. If this is the first time you configure the gateway, please use the default settings below: IP Address: 192.168.1.1...
  • Page 15: Configure The Cellular Connection

    Ursalink UR75 Quick Start Guide D. After you log in the Web GUI, you can view system information and perform configuration on the gateway. 5.2 Configure the Cellular Connection Take inserting SIM card into SIM1 slot as an example; please refer to the following detailed operations.
  • Page 16 If you select “3G First”, “3G Only”, “2G First” or “2G Only”, you should manually configure APN, Username, Password, and Access Number. UR75 Edge gateways have two cellular interfaces, named SIM1 & SIM2. Only one cellular interface is active at one time. If both cellular interfaces are enabled, SIM1 interface takes precedence by default.
  • Page 17 5.4 Check out if Network Works Properly by Browser on PC Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR75 Edge gateway. [END]...
