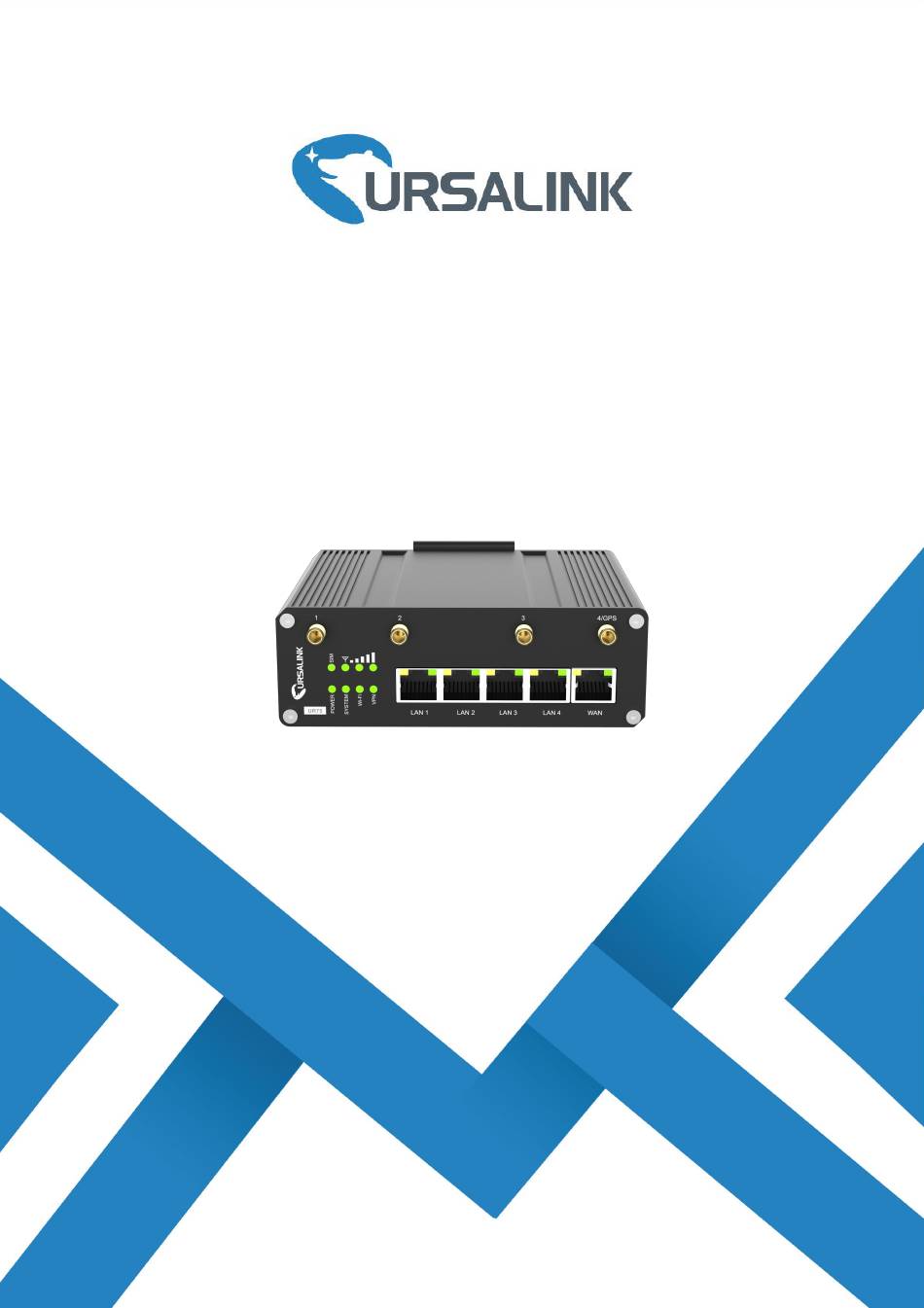

- Page 1 UR75 Industrial Cellular Router Quick Start Guide Ursalink Technology Co., Ltd.
- Page 2 Thank you for choosing Ursalink UR75 industrial cellular router. This guide describes how to install the UR75 and how to log in the Web GUI to configure the device. Once you complete the installation, refer to the Ursalink UR75 User Guide for instructions on how to perform configurations on the device.
-
Page 3: Table Of Contents
Ursalink UR75 Quick Start Guide Contents 1. Packing List............................... 4 2. Hardware Introduction.............................5 2.1 Overview..............................5 2.2 Dimensions............................. 6 2.3 Connectors..............................6 2.4 LED Indicators............................7 2.5 Reset Button............................7 2.6 Ethernet Port Indicator...........................8 3. Hardware Installation............................9 3.1 SIM Card Installation..........................9 3.2 Antenna Installation.......................... -
Page 4: Packing List
Ursalink UR75 Quick Start Guide 1. Packing List Before you begin to install the UR75 router, please check the package contents to verify that you have received the items below. 1 × 8-Pin Pluggable 1 × UR75 1 × Ethernet Cable 1 ×... -
Page 5: Hardware Introduction
Ursalink UR75 Quick Start Guide 2. Hardware Introduction 2.1 Overview A. Front Panel of UR75-5G LED Indicator Area POWER: Power Indicator SYSTEM: Status Indicator Wi-Fi: Wi-Fi Indicator VPN: VPN Indicator SIM : SIM Status Indicator : Signal Strength Indicator Ethernet Ports & Indicators... -
Page 6: Dimensions
Ursalink UR75 Quick Start Guide Right Side Panel SIM and Reset Button Holder 2.2 Dimensions (mm) 2.3 Connectors Serial Port&I/O Ports RS232 RS485 Description Digital Input Ground Data - Transmit Data Common Ground Digital Output Data + Receive Data Power Connector... -
Page 7: Led Indicators
Ursalink UR75 Quick Start Guide 2.4 LED Indicators Indication Status Description The power is switched off POWER Power Status The power is switched on Static: Start-up Green Light SYSTEM System Status Blinking slowly: the system is running properly Red Light... -
Page 8: Ethernet Port Indicator
Ursalink UR75 Quick Start Guide 2.6 Ethernet Port Indicator Indicator Status Description Connected Link Indicator (Orange) Blinking Transmitting data Disconnected www.ursalink.com... -
Page 9: Hardware Installation
3. Hardware Installation 3.1 SIM Card Installation UR75 do not support hot-plug. Please cut off the power before insert or take off cards. Unscrew the holder of the SIM card. Insert the SIM card(s) into the device following the triangle location of SIM card(s). -
Page 10: Wall Mounting
Ursalink UR75 Quick Start Guide 3.3.2 Wall Mounting Use 2 pcs of M3 × 6 flat head Phillips screws to fix the wall mounting kit to the router, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall. -
Page 11: Log In The Web Gui Of Router
4. Log in the Web GUI of Router 4.1 PC Configuration Please connect PC to any port among LAN1-LAN4 of UR75 router directly. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference. -
Page 12: Log In The Router
Ursalink UR75 Quick Start Guide Method 2: click “Use the Double Click “Internet Method 1: click “Obtain an IP ⑤ ⑥ following IP address” to assign a Protocol Version 4 address automatically”; static IP manually within the (TCP/IPv4)” to configure IP same subnet of the router. - Page 13 Ursalink UR75 Quick Start Guide If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes. C. When you log in with the default username and password, you will be asked to modify the password. It’s suggested that you change the password for the sake of security.
-
Page 14: Network Connection Of Router
B. Connect UR75 WAN port to another router or modem. C. Log in UR75 web GUI via WAN port IP address and go to “Status > Network” to check if status is “up”. D. Go to “Network > Interface > Link Failover” to rise the WAN priority to 1. -
Page 15: Cellular Connection Configuration
Ursalink UR75 Quick Start Guide E. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR75 router. 5.2 Cellular Connection Configuration Take inserting SIM card into SIM1 slot as an example; please refer to the following detailed operations. - Page 16 Ursalink UR75 Quick Start Guide D. Click to configure ICMP ping detection information. E. Click “Status > Cellular” to view the status of the cellular connection. If it shows “Connected”, it means SIM1 has dialed up successfully. On the other hand, you can check the status of SIM indicator. If it keeps on green light statically, it means SIM1 has dialed up successfully.
-
Page 17: Wi-Fi Connection Configuration
Ursalink UR75 Quick Start Guide F. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR75 router. 5.3 Wi-Fi Connection Configuration A. Go to “Network > Interface > WLAN” and select “Client” mode. - Page 18 Ursalink UR75 Quick Start Guide E. Go to “Network > Interface > Link Failover” to enable WLAN and rise link priority of WLAN. [END] www.ursalink.com...
