Summary of Contents for Ursalink UG87-In

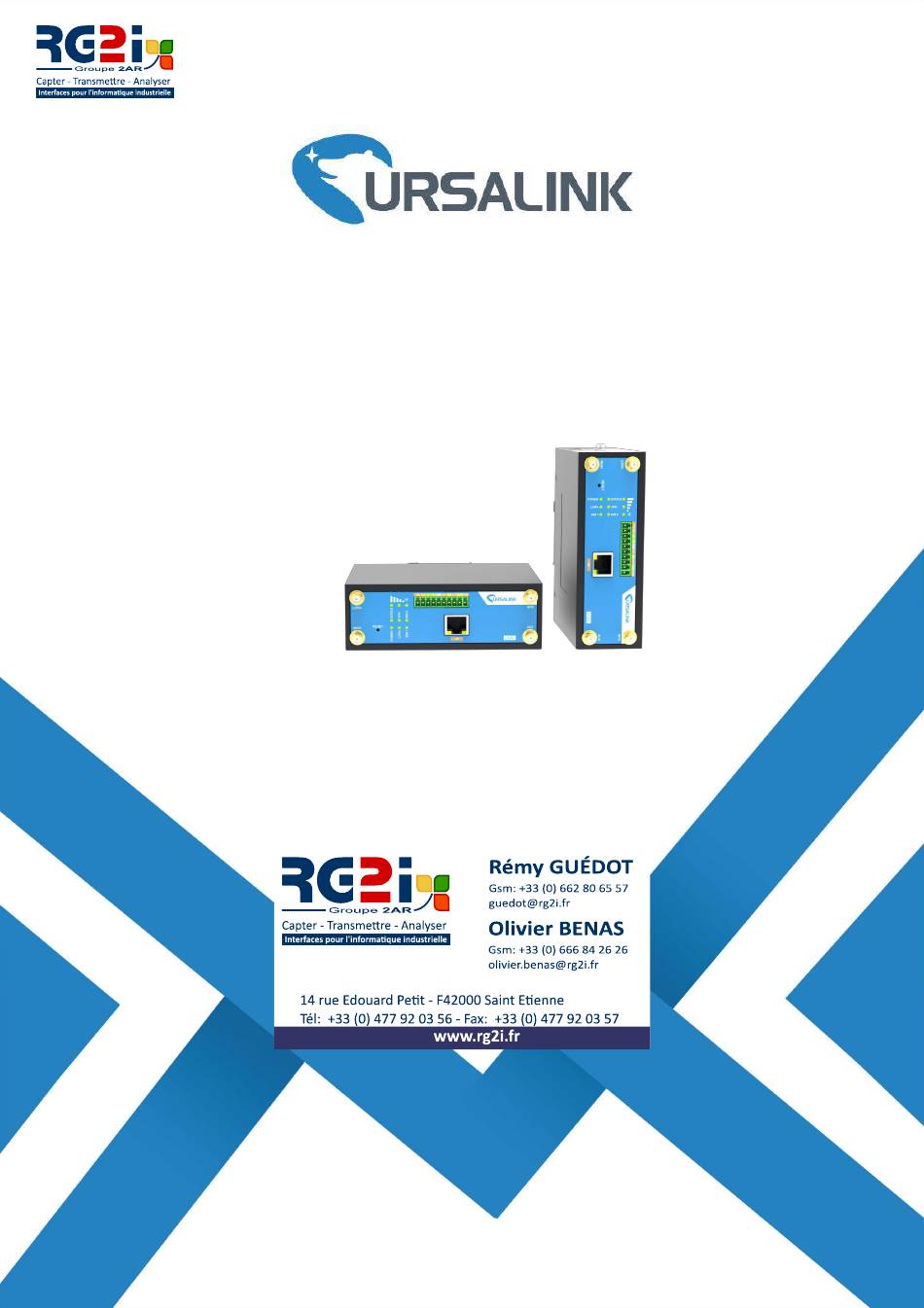

- Page 1 UG87-In LoRaWAN Gateway Quick Start Guide Ursalink Technology Co., Ltd.
-
Page 2: Related Documents
This guide teaches you how to install the UG87 (Indoor) and how to log in the web GUI to configure the device. Once you complete the installation, refer to the Ursalink UG87 User Guide for instructions on how to perform configurations on the device. -
Page 3: Package Contents
2 × Stubby Cellular 1 × GPS Antenna 1 × DIN Rail Kit Cellular Antennas Antennas (Optional) (Default) (Default) × Wall Mounting Bracket (Optional) If any of the above items is missing or damaged, please contact your Ursalink sales representative. www.ursalink.com... -
Page 4: Hardware Introduction
Ursalink UG87 Quick Start Guide 2. Hardware Introduction 2.1 Overview Main Cellular Antenna A. Front Panel Reset Button LED Indicator Area UG87 Front Panel POWER: Power Indicator STATUS: Status Indicator : Signal Strength Indicator LORA：LoRa Indicator VPN: VPN Indicator SIM1: SIM1 Status Indicator... -
Page 5: Led Indicators
Ursalink UG87 Quick Start Guide 2.3 Pinouts RS232 Description Transmit Data Receive Data Ground Digital Input1 Digital Input2 OUT1 Digital Output1 OUT2 Digital Output2 Common Ground Description Positive Negative 2.4 LED Indicators Indication Status Description The power is switched on... -
Page 6: Reset Button
Ursalink UG87 Quick Start Guide Static/Static/Off: normal signals with 11-20 ASU (average signal strength) Static/Static/Static: strong signals with 21-31 ASU (signal is good) 2.5 Reset Button Description Function STATUS LED Action Blinking Press and hold the reset button for about 5-15 seconds. -
Page 7: Hardware Installation
Ursalink UG87 Quick Start Guide 3. Hardware Installation Environmental Requirements - Power Input: 9-48 VDC - Power Consumption: Typical 3.3W (Max 6.4 W) - Operating Temperature: -40°C to 70°C (-40°F -158°F) - Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F 3.1 SIM Card Installation... -
Page 8: Mount The Gateway
Ursalink UG87 Quick Start Guide 3.3 Connect the UG87 to a Computer 3.4 Mount the gateway The gateway can be placed on a desktop or mounted to a wall or a DIN rail. 3.4.1 Wall Mounting (Measured in mm) Use 2 pieces of M3 × 6 flat head Phillips screws to fix the wall mounting kit to the gateway, and then use 2 pieces of M3 drywall screws to mount the gateway associated with the wall mounting kit on the wall. -
Page 9: Power Supply Installation
Ursalink UG87 Quick Start Guide 3.5 Power Supply Installation A. Take out the terminal from the gateway and unscrew the bolt on terminal. B. Screw down the bolt after inserting power cable into the terminal. Connecting the Power Cable Color... -
Page 10: Getting Started
Ursalink UG87 Quick Start Guide Getting Started 4. PC Configuration for UG87 Web GUI Please connect PC to GE port of UG87 directly. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference. - Page 11 Ursalink UG87 Quick Start Guide Method 2: click “Use the Double Click “Internet Method 1: click “Obtain an IP ⑤ ⑥ following IP address” to assign a Protocol Version 4 address automatically”; static IP manually within the (TCP/IPv4)” to configure IP same subnet of the gateway.
-
Page 12: Log In The Gateway
This chapter explains how to log in UG87 Web GUI, and connect the gateway to cellular network. Ursalink UG87 provides web-based configuration interface for management. If this is the first time you configure the gateway, please use the default settings below: IP Address: 192.168.1.1... -
Page 13: Configure The Cellular Connection
Ursalink UG87 Quick Start Guide D. After you log in the Web GUI, you can view system information and perform configuration of the gateway. 5.2 Configure the Cellular Connection Take inserting SIM card into SIM1 slot as an example; please refer to the following detailed operations. - Page 14 Ursalink UG87 Quick Start Guide If you select “Auto”, the gateway will obtain ISP information from SIM card to set APN, Username, and Password automatically. This option will take effect when the SIM card is issued from a well-known ISP.
- Page 15 Ursalink UG87 Quick Start Guide SIM1 has dialed up successfully. 5.3.2 Check the Cellular Connection Status by Hardware On the other hand, you can check the status of SIM1 indicator. If it keeps on green light statically, it means SIM1 has dialed up successfully.
-
Page 16: Node Parameters
Ursalink UG87 Quick Start Guide 6. Packet Forwarder Testing 6.1 Node Parameters Channel Plan AS923 Frequency 923.4MHZ, 923.2MHZ Join Type OTAA Device EUI 60C5A8FFFE0003F9 Application EUI 70B3D57ED0007AC2 App Key 328F2A3F5BA8D0B236459CF06D0512B5 6.2 Configure The Things Network A. Gateway Configuration Gateway EUI... -
Page 17: Packet Forwarder Configuration
Ursalink UG87 Quick Start Guide 6.3 Packet Forwarder Configuration A. Click “LoRaWAN” → “Packet Forwarder” → “General” to configure the general setting. B. Click “Radios” to configure the center frequency and channels. www.ursalink.com... - Page 18 Ursalink UG87 Quick Start Guide C. Click “Traffic” to view the data communication of UG87. 6.4 Check Data Transmission on The Things Network A. Click “Gateways”, you can check the Gateways status. B. Click “Applications”and select the Applications, then go to “Data”, you can find the data from the Node.
- Page 19 Ursalink UG87 Quick Start Guide www.ursalink.com...
-
Page 20: Network Server Configuration
Ursalink UG87 Quick Start Guide 7. Network Server Testing Note that only gateway with activated built-in Network Server version supports this function. 7.1 Node Parameters Channel Plan AS923 Frequency 923.4MHZ, 923.2MHZ Join Type OTAA Device EUI 60C5A8FFFE0003F9 Application EUI 70B3D57ED0007AC2... - Page 21 Ursalink UG87 Quick Start Guide C. Add a new Profiles for the device www.ursalink.com...
- Page 22 Ursalink UG87 Quick Start Guide D. Add device 7.3 Package Forwarder Configuration Click “LoRaWAN” → “Packet Forwarder” → “Radios” to configure the center frequency and channels Note that node frequency needs to be included in the channels frequency. 7.4 Check the Packets Click “LoRaWAN”...
- Page 23 Ursalink UG87 Quick Start Guide [END] www.ursalink.com...
