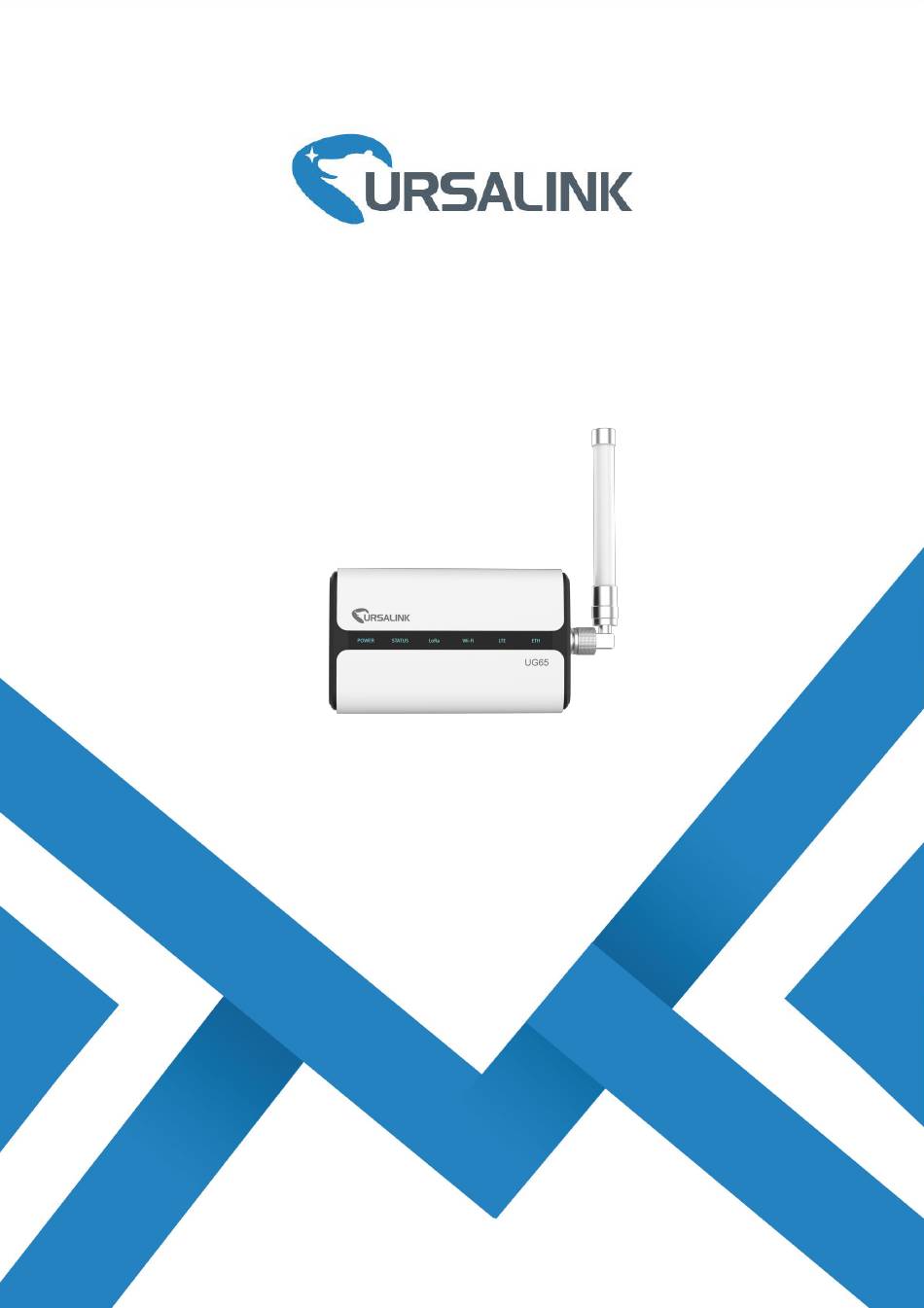

- Page 1 UG65 LoRaWAN Gateway Quick Start Guide Ursalink Technology Co., Ltd.
- Page 2 Thank you for choosing Ursalink UG65 LoRaWAN Gateway. This guide teaches you how to install the UG65 and how to log in the web GUI to configure the device. Once you complete the installation, refer to the Ursalink UG65 User Guide for instructions on how to perform configurations on the device.
-
Page 3: Table Of Contents
5.Connect UG65 to the Netowork........................13 5.1 Configure the WAN Connection......................13 5.2 Configure the Wi-Fi Connection......................14 5.3 Configure the Cellular Connection.......................15 6.Packet Forwarder Configuration........................17 7. Network Server Configuration........................19 7.1 Connect UG65 to Ursalink Cloud......................19 7.2 Connect UG65 to Other Platform......................21 www.ursalink.com... -
Page 4: Packing List
Ursalink UG65 Quick Start Guide 1. Packing List Before you begin to install the UG65 LoRaWAN Gateway, please check the package contents to verify that you have received the items below. 1 × UG65 1 × Ethernet Cable 1 × DC Jack Power Adapter 1 ×... -
Page 5: Hardware Introduction

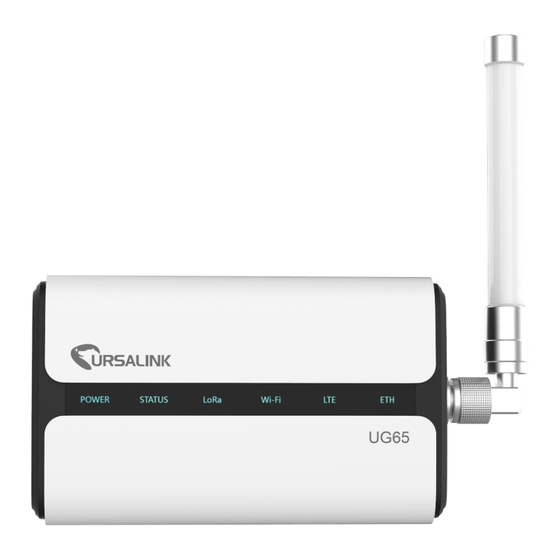

Ursalink UG65 Quick Start Guide 2. Hardware Introduction 2.1 Overview A. Front Panel LED Area POWER: Power Indicator STATUS: System Indicator LoRa: LoRa Indicator Wi-Fi: Wi-Fi Indicator LTE: Cellular Indicator ETH: Ethernet Port Indicator LoRa Antenna Connector (only for external antenna version) B. -
Page 6: Led Indicators
Ursalink UG65 Quick Start Guide 2.3 LED Indicators Indication Status Description The power is switched off POWER Power Status The power is switched on Blue Light Static: the system is running properly STATUS System Status Red Light The system goes wrong... -
Page 7: Hardware Installation
3. Hardware Installation 3.1 SIM Card Installation UG65 does not support hot plugging (also called hot swapping). please turn off the power before you insert or take off cards. A. Use screwdriver to open the protective cover on the back panel of UG65. -
Page 8: Gateway Mounting
Ursalink UG65 Quick Start Guide 3.4 Gateway Mounting The gateway can be mounted to a wall or a pole. Please complete all software configurations before installation. 3.4.1 Wall Mounting Preparation: mounting bracket, bracket fixing screws, grounding screw, wall plugs, wall mounting screws and other required tools. -
Page 9: Pole Mounting
Ursalink UG65 Quick Start Guide 7. Screw the grounding screw to fix UG65 to the mounting bracket. 3.4.2 Pole Mounting Preparation: mounting bracket, bracket fixing screws, hose clamp and other required tools. 1. Before you start, make sure that your SIM card has been inserted, your antennas have been attached and that all cables have been installed. -
Page 10: Access The Web Gui Of Ug65
Ursalink UG65 Quick Start Guide 4.Access the Web GUI of UG65 Ursalink UG65 provides web-based configuration interface for management. If this is the first time you configure the gateway, please use the default settings below: ETH IP Address: 192.168.23.150 Wi-Fi IP Address: 192.168.1.1... -
Page 11: Web Gui Access Via Ethernet Port
Ursalink UG65 Quick Start Guide 4.2 Web Access via Ethernet Port Connect PC to UG65 ETH port directly or through PoE adapter. The following steps are based on Windows 10 operating system for your reference. A. Go to “Control Panel” → “Network and Internet” → “Network and Sharing Center”, then click “Ethernet”... - Page 12 Ursalink UG65 Quick Start Guide C. Open a Web browser on your PC (Chrome is recommended) and type in the IP address 192.168.1.1 to access the web GUI. D. Enter the username and password, click “Login”. If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes.
-
Page 13: Connect Ug65 To The Netowork
Ursalink UG65 Quick Start Guide 5.Connect UG65 to the Netowork This section explains how to connect the gateway to network via WAN connection, Wi-Fi or cellular. 5.1 Configure the WAN Connection A. Go to “Network”→ “Interface” → “Port” page to select the connection type and configure Ethernet port information. -
Page 14: Configure The Wi-Fi Connection
Ursalink UG65 Quick Start Guide 5.2 Configure the Wi-Fi Connection A. Go to “Network” → “Interface” → “WLAN” and select “Client” mode. B. Click “Scan” to search for Wi-Fi access point. Select the available one and click “Join Network”. C. Type the key of Wi-Fi. -
Page 15: Configure The Cellular Connection
Ursalink UG65 Quick Start Guide 5.3 Configure the Cellular Connection A. Go to “Network” → “Interface” → “Cellular” → “Cellular Setting” page to enable cellular settings. B. Choose relevant network type and fill in SIM card information like APN or PIN code. - Page 16 Ursalink UG65 Quick Start Guide D. Go to “Status” → “Cellular” page to view the status of the cellular connection. If it shows “Connected”, it means the SIM has dialed up successfully. On the other hand, you can check the status of LTE indicator. If it keeps on green light statically, it means SIM has dialed up successfully.
-
Page 17: Packet Forwarder Configuration
Ursalink UG65 Quick Start Guide 6.Packet Forwarder Configuration UG65 has embedded multiple packet forwarders like TTN and Chirpstack. This section explains how to connect the gateway to third-party network servers. Make sure the gateway connects to the network as shown in Section A. - Page 18 D. Add the gateway on network server page. Take TTN for example, type and save the gateway EUI and other information when you connect it via Semtech packet forwarder. After you add the gateway, TTN will show connection status. E. Go to “Traffic” page to view the data communication of UG65. www.ursalink.com...
-
Page 19: Network Server Configuration
Ursalink UG65 Quick Start Guide 7. Network Server Configuration UG65 can work as network server and transmit data to Ursalink Cloud or other platform via MQTT/HTTP/HTTPS. Make sure the gateway connects to the network as shown in Section 7.1 Connect UG65 to Ursalink Cloud A. - Page 20 Ursalink UG65 Quick Start Guide C. Go to “Network Server” → “General” page to enable the network server and Ursalink Cloud mode. D. Register and log in the Ursalink Cloud (cloud.ursalink.com). E. Go to “Gateway” page and click “Add” to add a gateway.
-
Page 21: Connect Ug65 To Other Platform
F. The gateway is online on Ursalink Cloud. 7.2 Connect UG65 to Other Platform A. Go to “Packet Forwarder” → “General” page to enable the “Ursalink” type server. B. Go to “Packet Forwarder” → “Radio” page to select the antenna transmission type, center frequency and channels. - Page 22 Ursalink UG65 Quick Start Guide C. Go to “Network Server” → “General” page to enable the network server mode. D. Go to “Network Server”→”Application” to add a new application. After saving the application, you can select HTTP, HTTPS or MQTT protocol and fill in correspond server information to send data to another server.
- Page 23 Ursalink UG65 Quick Start Guide E. Go to “Profiles” page to add a new profile for the device. F. Go to “Device” page and click “Add” to add LoRaWAN node devices. www.ursalink.com...
- Page 24 Ursalink UG65 Quick Start Guide You can also click “Bulk Import” if you want to add many LoRaWAN nodes all at once. Click “Template Download” to download template file and add LoRaWAN device information to this file. Application and device profile should be the same as you created on web page.
- Page 25 Ursalink UG65 Quick Start Guide [END] www.ursalink.com...
